Product Information
Manufacturer
ASUS
Series
Expedition
Variant
B760M-V5-CSM
Release Year
2023
Manufacturer Color
Black/Red
UPC
192876911549
EAN
0192876911549
Part Numbers
x-b760m-v5-csm
BuildCores ID
i0n8reolx
General Specifications
Socket
LGA 1700
Form Factor
Micro ATX
Chipset
Intel B760
Max Memory
96 GB
Memory Type
DDR5
Memory Slots
2
Colors
BLACK
GREY
RED
Lighting
Unknown
PCIe Slots
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5Gb Ethernet 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

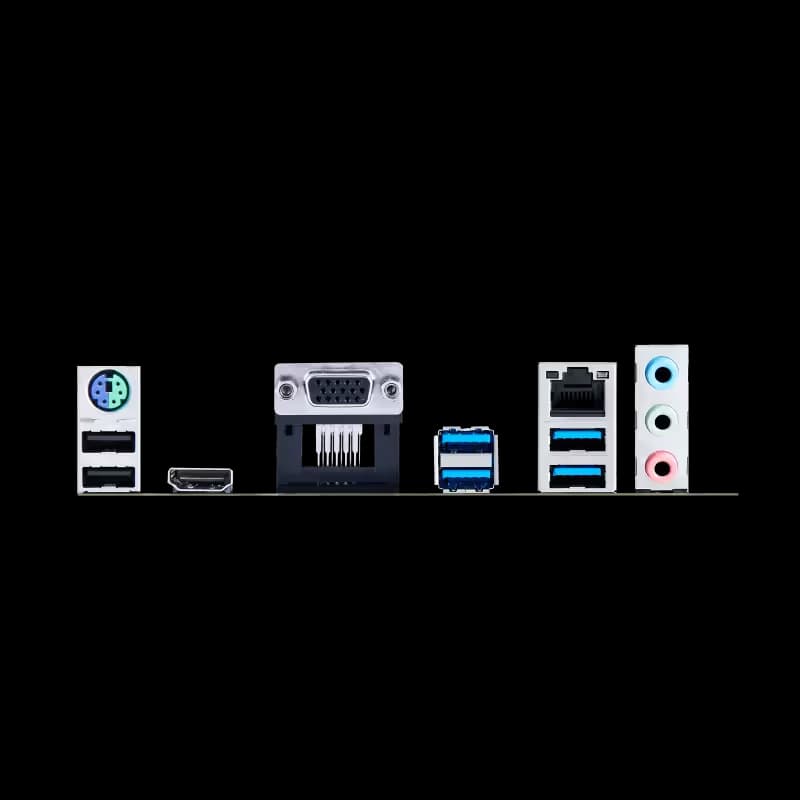

Back Panel Ports
4 x USB 3.2 Gen 1 (5G) ports (Type-A)
2 x USB 2.0 ports (Type-A)
1 x VGA port
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

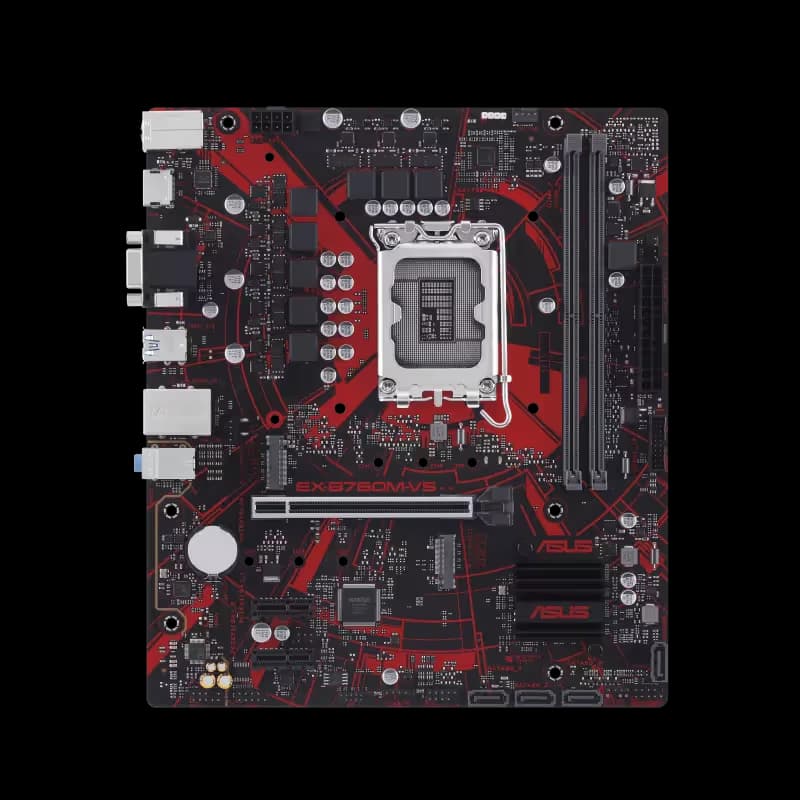

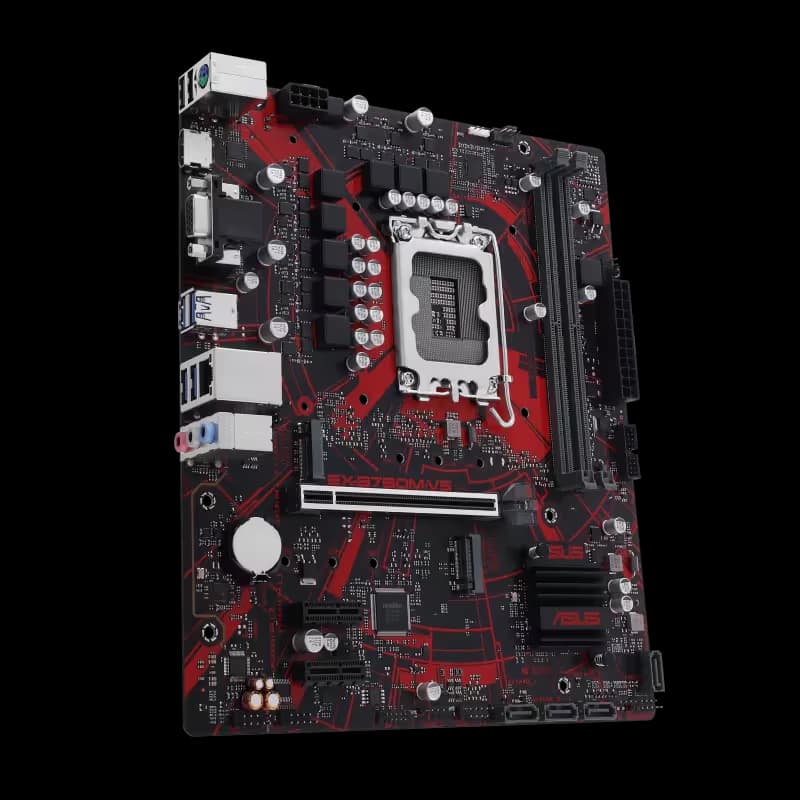

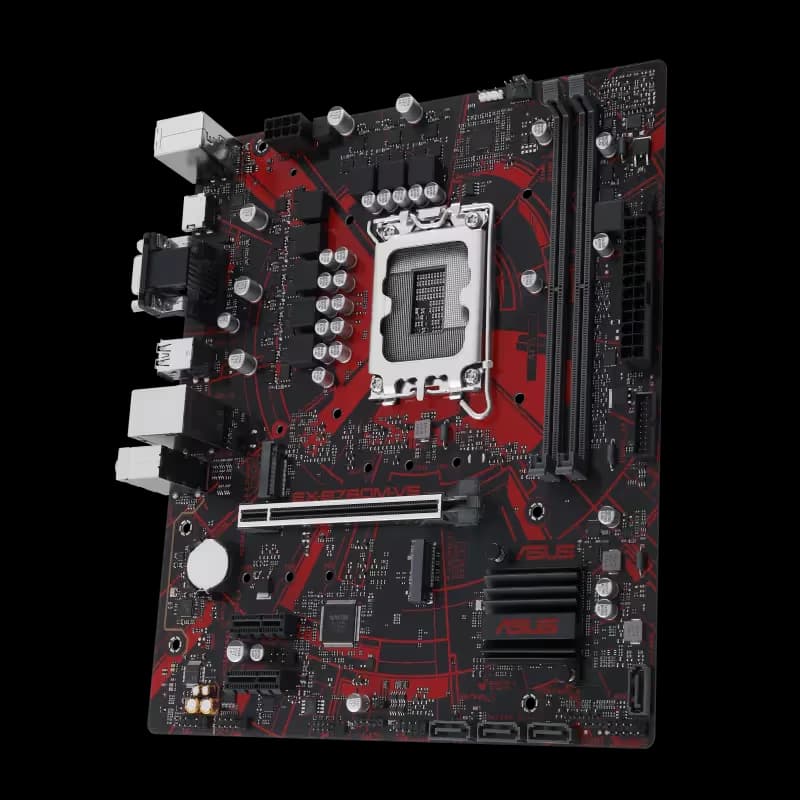

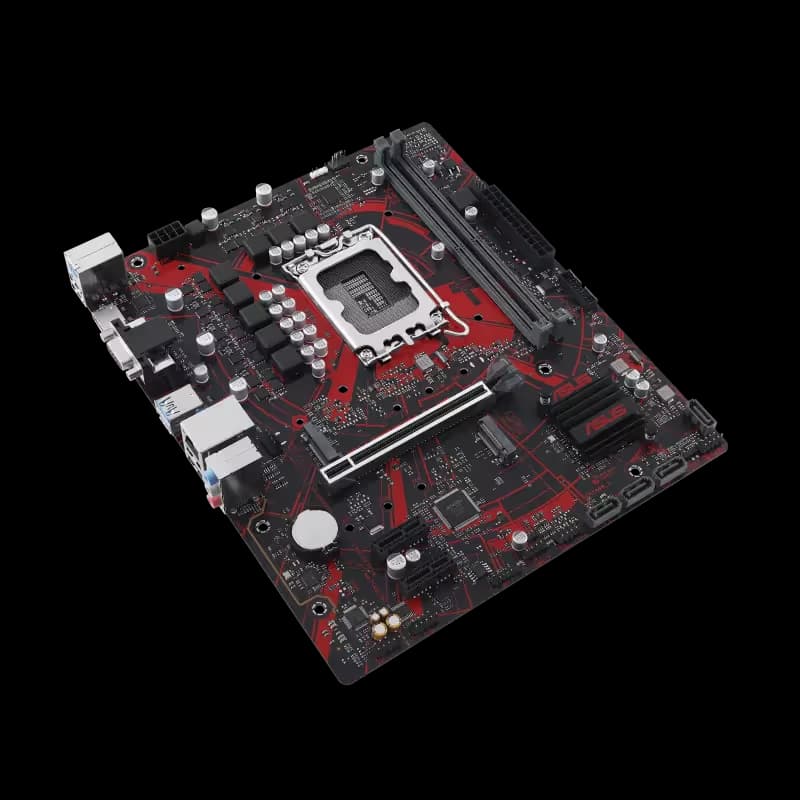

Motherboard
ASUS EX-B760M-V5-CSM
