General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
BLACK
GREY
Lighting
None
PCIe Slots
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek RTL8111H 1 Gb/s
WiFi
Wi-FI 5 Bluetooth 4.2
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
1
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
1
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

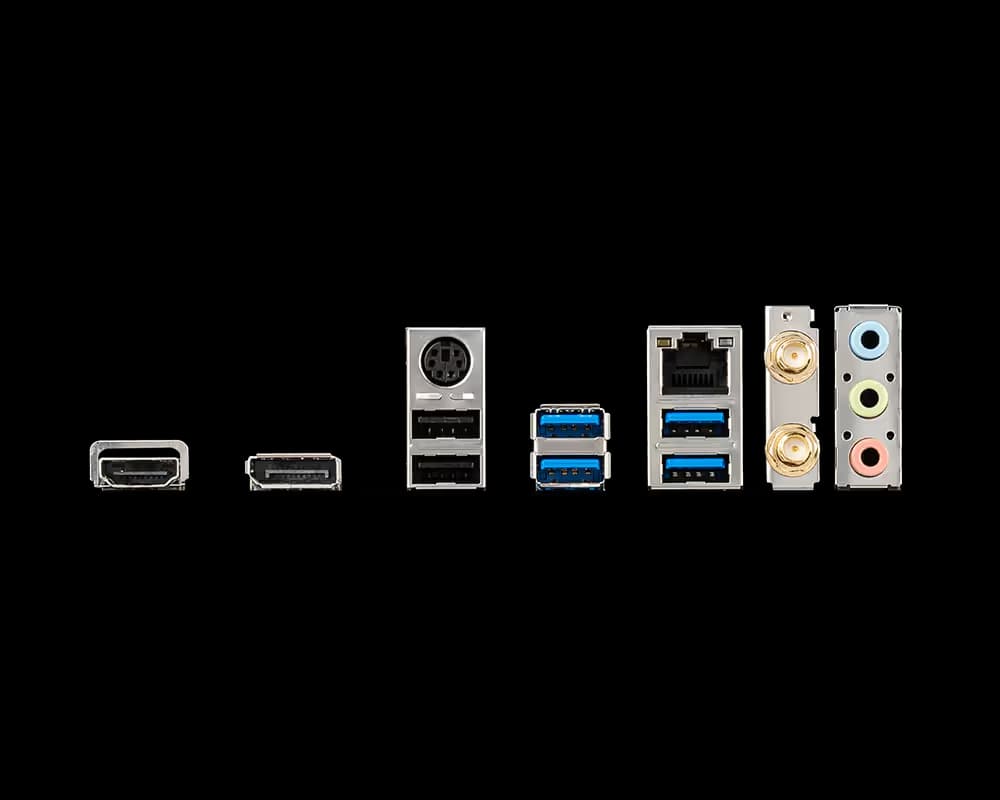

Back Panel Ports
1 x PS/2 keyboard/ mouse combo port
2 x USB 2.0 Type-A ports
1 x Display port
1 x HDMI port
1 x LAN (RJ45) port
2 x Wi-Fi Antenna connectors
3 x audio jacks
Product Information
Manufacturer
MSI
Series
MAG
Variant
B550M VECTOR WIFI
Release Year
2020
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
MAG-B550M-VECTOR-WIFI
BuildCores ID
idx0anj7x

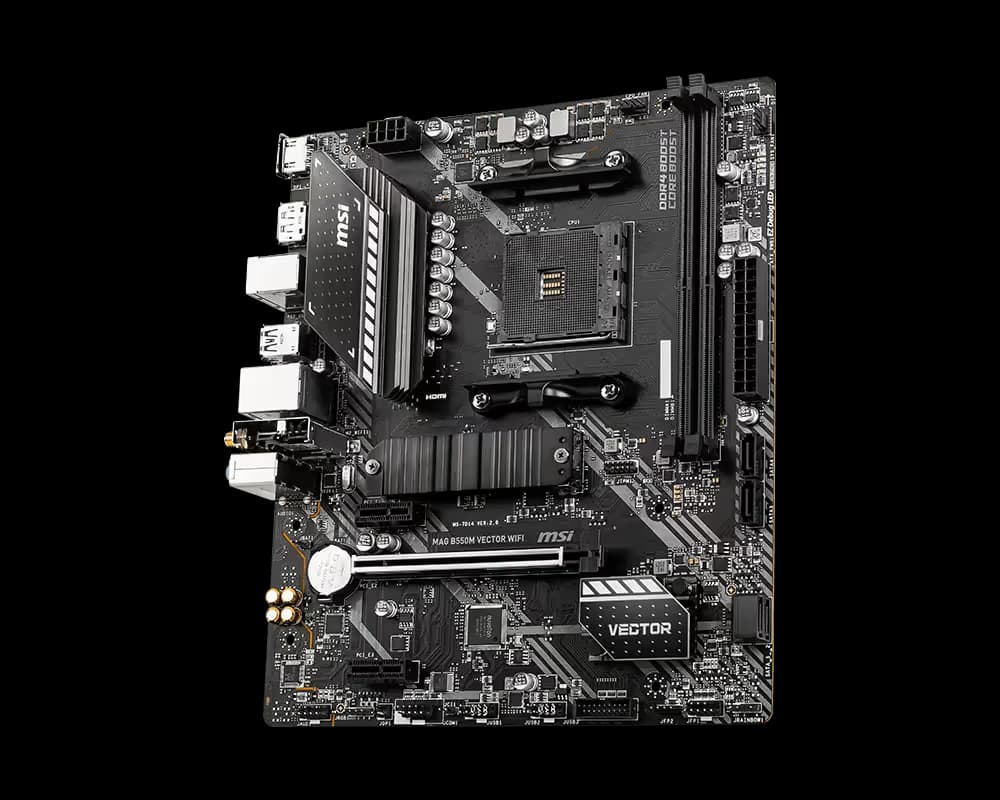

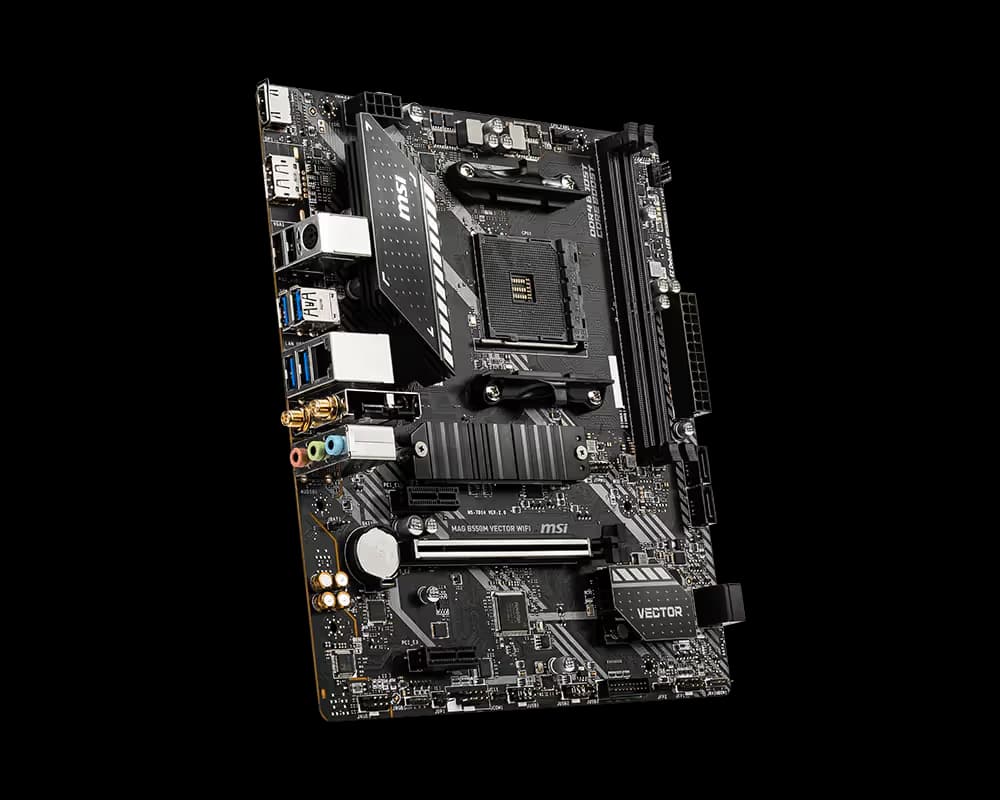

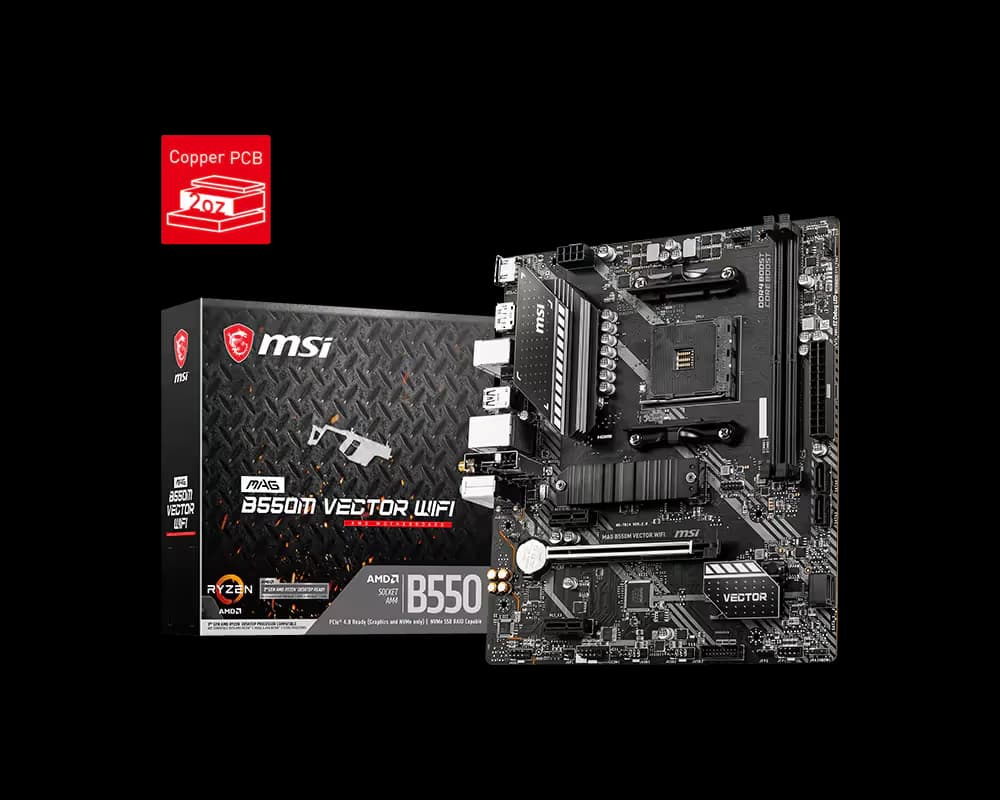

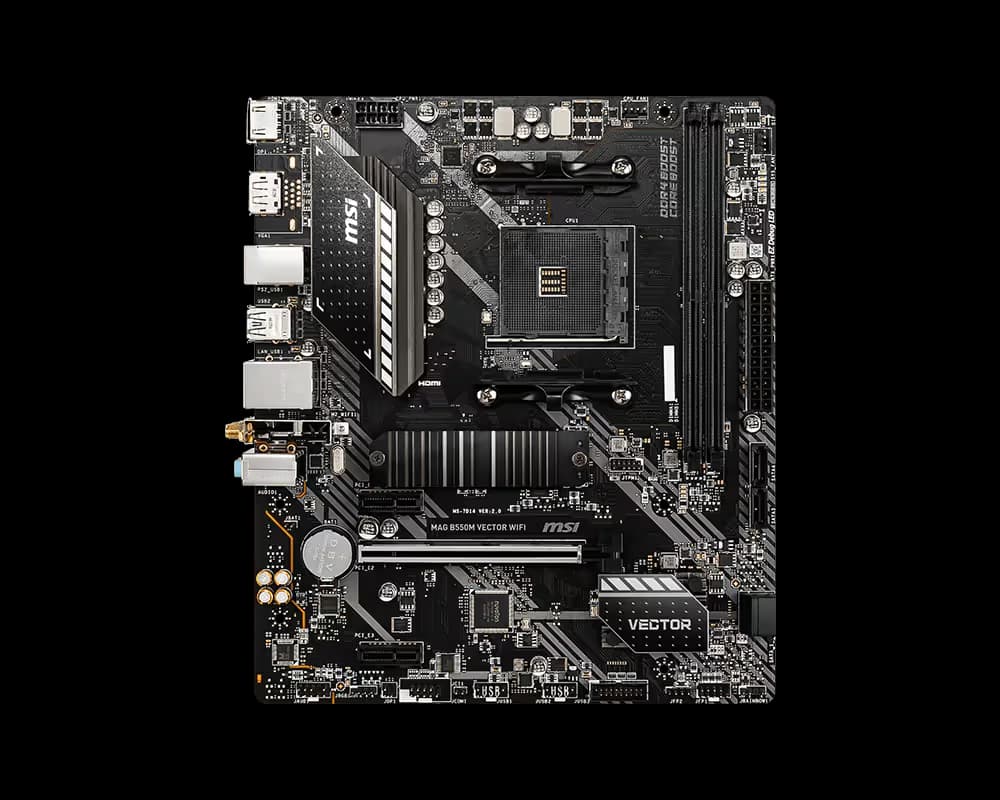

Motherboard
