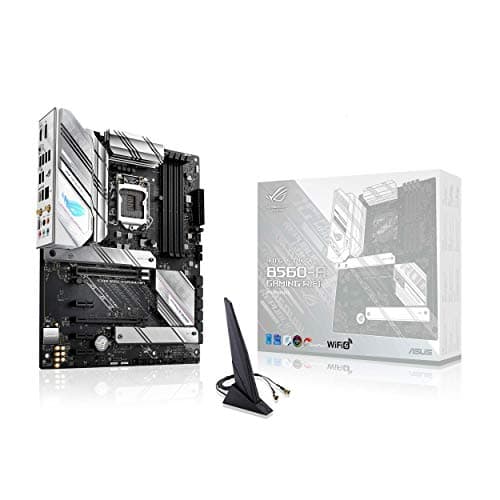

ASUS ROG STRIX B560-A GAMING WIFI main image

General Specifications

Socket

LGA 1200

Form Factor

ATX

Chipset

Intel B560

Weight

Unknown

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 3 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 3.0 x4 & SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

ROG SupremeFX S1220A

Audio Channels

7.1

Back Panel Ports

HDMI 2.0 DisplayPort 1.4 USB 2.0 USB 3.2 Gen 1 USB 3.2 Gen 2x2 USB Type-C USB 3.2 Gen 2 Realtek 2.5Gb Ethernet Intel® Wi-Fi 6 Audio USB Type-C

Display Outputs

Unknown

Product Information

Manufacturer

ASUS

Series

ROG STRIX

Variant

B560-A GAMING WIFI

Release Year

2021

Manufacturer Color

Unknown

UPC

195553128384

EAN

0195553128384

Part Numbers

ROG STRIX B560-A GAMING WIFI

BuildCores ID

ihg0yf90e

See an issue?Report an issue on OpenDB

Motherboard

ASUS ROG STRIX B560-A GAMING WIFI

SocketLGA 1200

Form FactorATX

ChipsetIntel B560

	—	N/A

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Unavailable	N/A via Amazon

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Unavailable	N/A via Amazon

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Additional Features

• Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron processors

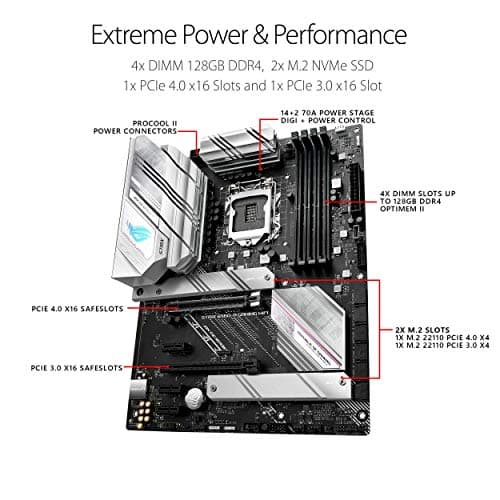

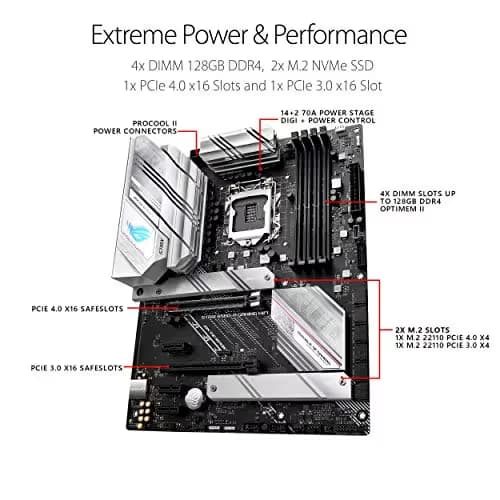

• Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

• Smooth Networking: On-board Intel WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard

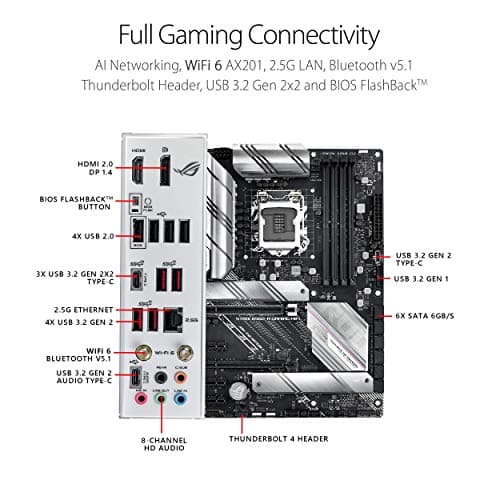

• Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C

• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack and Q-LED

Additional Features

• Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold and Celeron processors

• Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors

• Smooth Networking: On-board Intel WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard

• Best Gaming Connectivity: Supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C

• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack and Q-LED
