Product Information
Manufacturer
ASUS
Series
ROG STRIX
Variant
B450-F GAMING
Release Year
2019
Manufacturer Color
Unknown
UPC
192876080276
EAN
0192876080276
Part Numbers
ROG STRIX B450-F GAMING 90MB0YS0-M0EAY0 90MB0YS0-MVAAY0
BuildCores ID
im87erhxg
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD B450
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 2.0 x16 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280 SATA & PCIe 3.0 x4 M 2242/2260/2280/22110 PCIe 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I211-AT 1 Gb/s
WiFi
Unknown
USB 2.0
6
USB 3.2 Gen 1
6
USB 3.2 Gen 2
2
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220A
Audio Channels
7.1

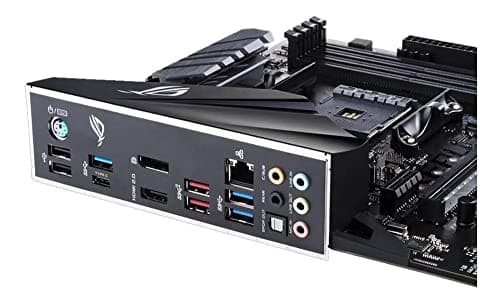

Back Panel Ports
2 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s)
Motherboard

ROG STRIX B450-F GAMING

Best Price

$129.99

via
Loading...
Loading
Loading...
Loading
Loading...
Loading
Amazon

$129.99

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
In stock

$129.99

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
In stock

$129.99

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

AMD AM4 Socket: The perfect pairing for 3rd/2nd/1st Gen AMD Ryzen CPUs

Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.

Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.

5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.

Gamer’s Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance

Please ensure your BIOS is up to date if installing a compatible Ryzen 5000 series CPU. Visit ASUS site search by motherboard model name, click on “Support” tab, Drivers and Tools, then BIOS & Firmware to download the latest BIOS

Additional Features

AMD AM4 Socket: The perfect pairing for 3rd/2nd/1st Gen AMD Ryzen CPUs

Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.

Gaming networking: Intel Gigabit Ethernet, plus ASUS LANGuard and GameFirst technologies.

5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear.

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.

Gamer’s Guardian: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance

Please ensure your BIOS is up to date if installing a compatible Ryzen 5000 series CPU. Visit ASUS site search by motherboard model name, click on “Support” tab, Drivers and Tools, then BIOS & Firmware to download the latest BIOS
