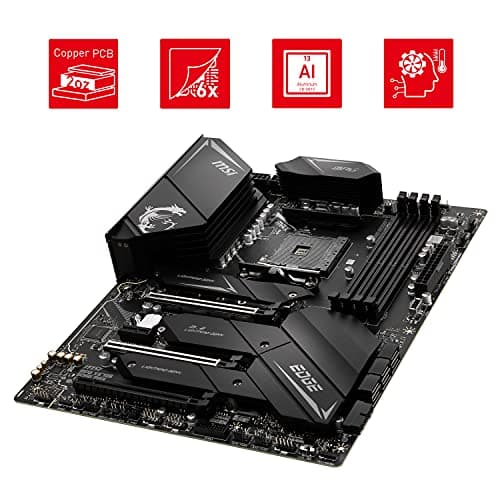

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image

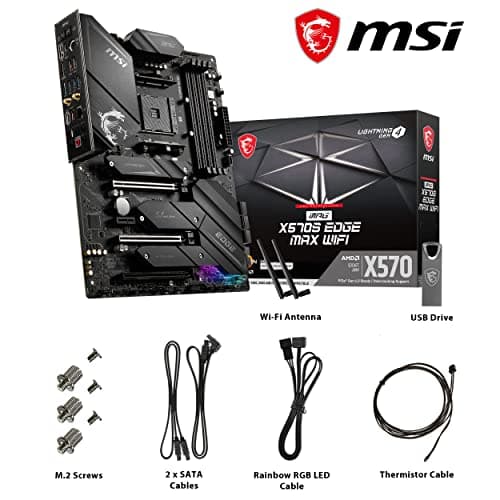

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image

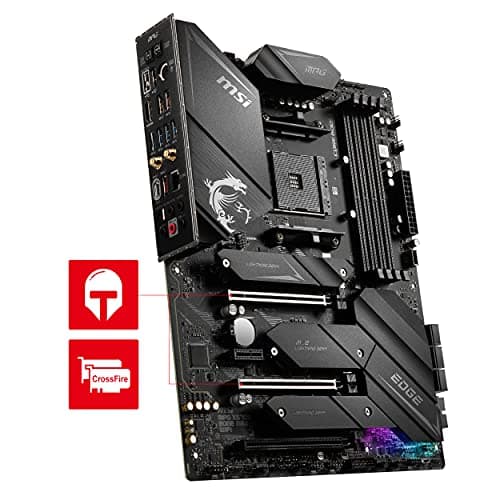

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image

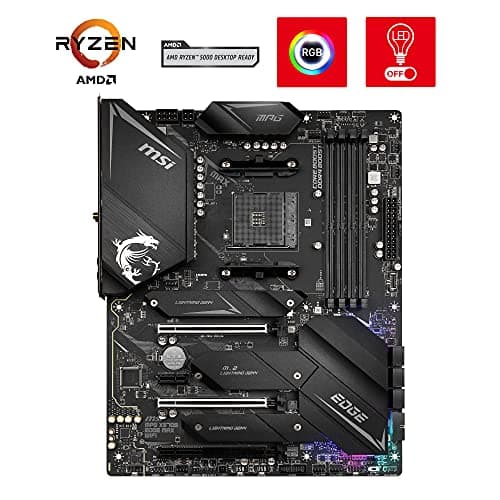

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image

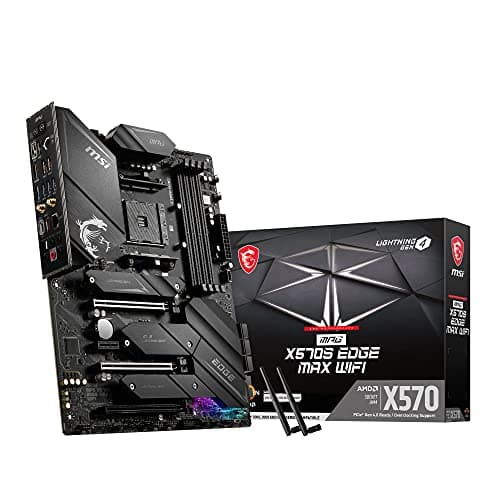

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image

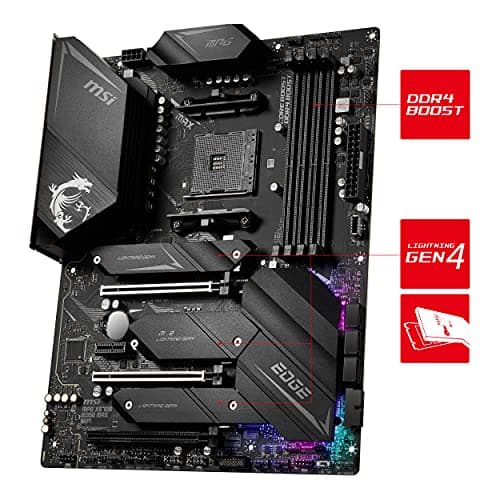

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard main image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard image
Product Information
Manufacturer
MSI
Series
MPG
Variant
X570S EDGE MAX WiFi
Release Year
2022
Manufacturer Color
Unknown
UPC
824142265925
EAN
4719072872182
Part Numbers
911-7D53-004 7D53-001
BuildCores ID
jasfg0opa
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X570
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 4.0 x16 1 x PCIe 3.0 x16 1 x PCIe ? x1
M.2 Slots
M 2242 2260 2280 22110 PCIe 4.0 / PCIe 3.0 M 2242 2260 2280 M 2242 2260 2280
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8125B 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4080
Audio Channels
7.1

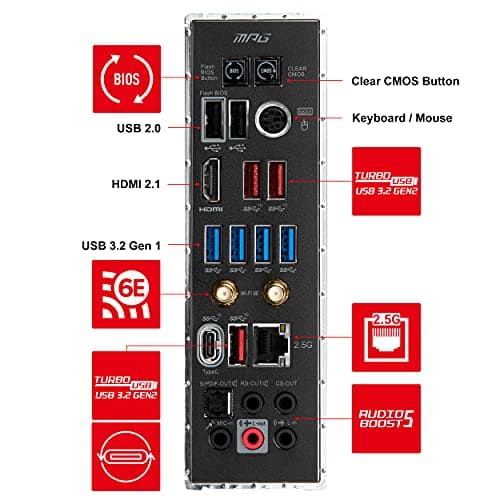

Back Panel Ports
1 x Clear CMOS Button 1 x Flash BIOS Button 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 1 x PS/2 Keyboard/Mouse Combo 1 x USB 3.2 Gen 2 Type-C 3 x USB 3.2 Gen 2 Type-A 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1 1 x Optical S/PDIF Out 5 x Audio Jacks
Motherboard

MSI X570S MPG EDGE MAX WiFi AMD AM4 ATX Motherboard

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

Supports DDR4 Memory, up to 5300+(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click

Additional Features

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors

Supports DDR4 Memory, up to 5300+(OC) MHz

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click
