Product Information

Manufacturer

Gigabyte

Series

AORUS

Release Year

2018

Manufacturer Color

Unknown

UPC

889523013298

EAN

0889523013298

Part Numbers

X470 AORUS GAMING 5 WIFI N82E16813145059R

BuildCores ID

jbca6vbxa

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD X470

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 3.0 x16 1 x PCIe 3.0 x8 1 x PCIe 3.0 x4 2 x PCIe 2.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 3.0 x4 M 2242/2260/2280 PCIe 2.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel GbE LAN chip 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

ALC1220-VB

Audio Channels

7.1

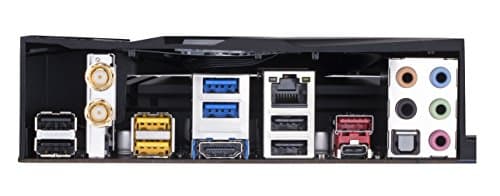

Back Panel Ports

2 x MMCX antenna connectors (2T2R) 4 x USB 3.1 Gen 1 ports 1 x USB Type-C port with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

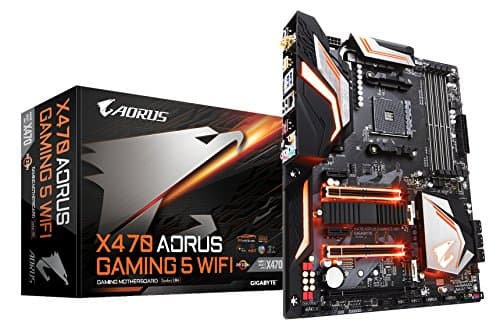

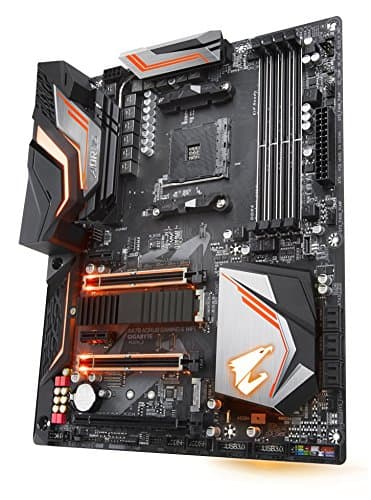

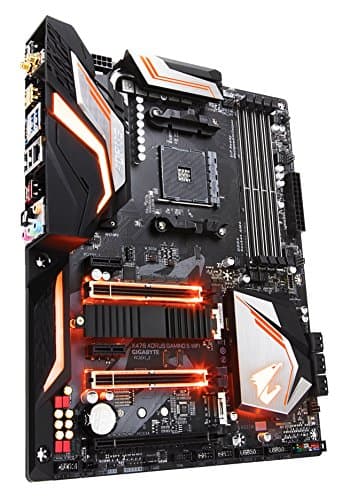

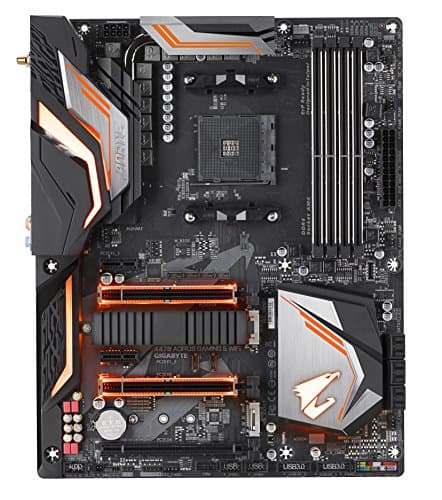

X470 AORUS GAMING 5 WIFI

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• Supports AMD RYZEN 2nd generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st generation/ 7th Generation A-series/ Athlon x4 processors

• Dual Channel Non-ECC Buffered DDR4, 4 DIMMs

• 8+3 Phase hybrid Digital PWM Design

• 2-Way Crossfire/ SLI Graphics Support with Dual Armor and Ultra Durable Design.Maximum shared memory of 2 GB

Additional Features

• Supports AMD RYZEN 2nd generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st generation/ 7th Generation A-series/ Athlon x4 processors

• Dual Channel Non-ECC Buffered DDR4, 4 DIMMs

• 8+3 Phase hybrid Digital PWM Design

• 2-Way Crossfire/ SLI Graphics Support with Dual Armor and Ultra Durable Design.Maximum shared memory of 2 GB
