Product Information
Manufacturer
ASUS
Series
ROG Maximus
Variant
Extreme
Release Year
2020
Manufacturer Color
Unknown
UPC
192876663943
EAN
0192876663943
Part Numbers
ROG MAXIMUS XII EXTREME
BuildCores ID
jboakfhdl
General Specifications
Socket
LGA 1200
Form Factor
EATX
Chipset
Intel Z490
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 3.0 x4
M.2 Slots
M 2280 PCIe 3.0 x4 M 2280 PCIe 3.0 x4 M 2280 PCIe 3.0 x4 M 22110 PCIe 3.0 x4
SATA 6Gb/s
8
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
MarvellAQtionAQC107 10 Gb/s Intel 2.5 Gb/s
WiFi
Unknown
USB 2.0
0
USB 3.2 Gen 1
6
USB 3.2 Gen 2
3
USB 3.2 Gen 2x2
2
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
Yes
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
SupremeFXS1220Codec ESS®ES9023P
Audio Channels
7.1

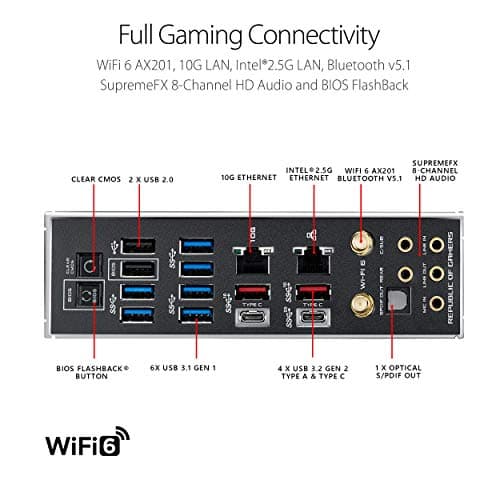

Back Panel Ports
1xHDMI 4xUSB3.2Gen1 3xUSB3.2Gen2 1xUSB3.2Gen2x2 1xThunderbolt3 1xLAN 1xOpticalS/PDIF
Motherboard

ASUS ROG Maximus XII Extreme

Loading...
Loading
Loading...
Loading
Amazon
FREE s/h

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
FREE s/h
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
FREE s/h
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

Extreme Power Solution: features 16 infineon TDA21490 power stages, each rated to handle 90 amps, high-quality alloy chokes and durable capacitors

Superb Thermal Design: Extra-large heatsinks for VRM, chipset and M. 2 slots, solid steel backplate, multiple fan headers and a bundled fan extension card, features AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta

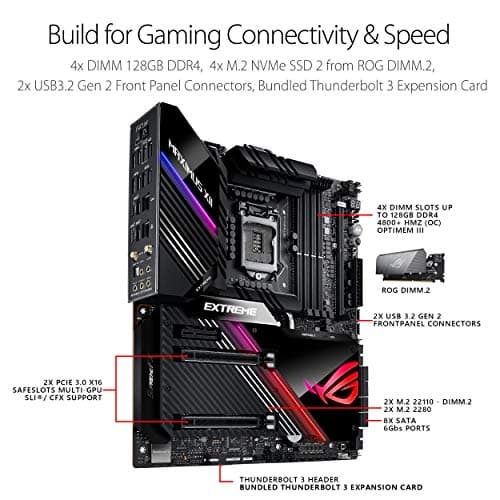

Fastest Gaming Connectivity: Intel WiFi 6 AX201 (802. 11 ax), Dual Ethernet with Marvell AQtion 10Gb and Intel 2. 5Gb Ethernet with LANGaurd technology, Quad M. 2 slots with Dimm. 2, 2x USB 3. 2 Gen 2x2 front panel connectors

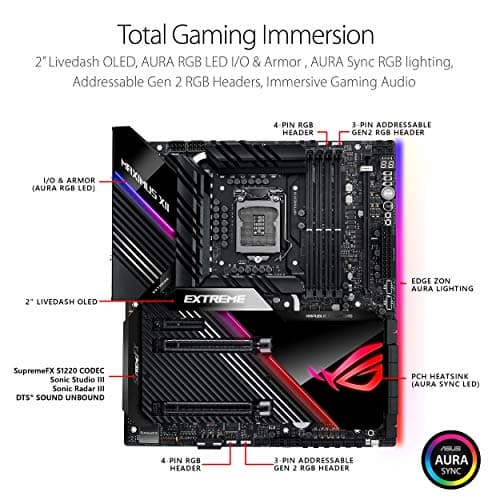

Unmatched Personalization: 2” Livedash OLED, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.

Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

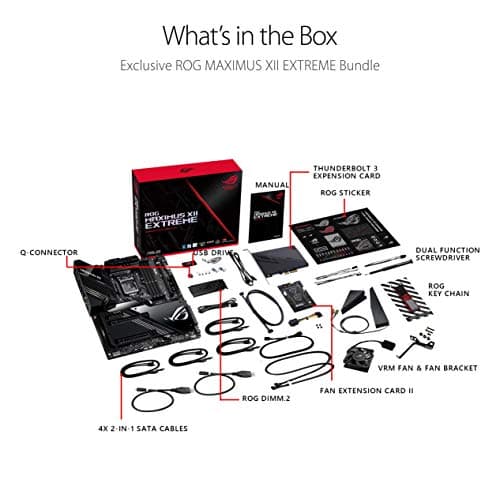

Exclusive ROG Bundle: 1x Fan Extension Card II , 1x ThunderboltEX 3-TR Card, 1x Fan bracket, 1x ROG assistant Fan( 40mm), 1x ROG multi-bit screwdriver come with the motherboard package

Additional Features

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

Extreme Power Solution: features 16 infineon TDA21490 power stages, each rated to handle 90 amps, high-quality alloy chokes and durable capacitors

Superb Thermal Design: Extra-large heatsinks for VRM, chipset and M. 2 slots, solid steel backplate, multiple fan headers and a bundled fan extension card, features AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta

Fastest Gaming Connectivity: Intel WiFi 6 AX201 (802. 11 ax), Dual Ethernet with Marvell AQtion 10Gb and Intel 2. 5Gb Ethernet with LANGaurd technology, Quad M. 2 slots with Dimm. 2, 2x USB 3. 2 Gen 2x2 front panel connectors

Unmatched Personalization: 2” Livedash OLED, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.

Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

Exclusive ROG Bundle: 1x Fan Extension Card II , 1x ThunderboltEX 3-TR Card, 1x Fan bracket, 1x ROG assistant Fan( 40mm), 1x ROG multi-bit screwdriver come with the motherboard package
