LoadingProduct Information
Manufacturer
MSI
Series
B550
Variant
MEG UNIFY
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
4719072775056
Part Numbers
MEG B550 UNIFY
7D13-002R
B550UNIFY
BuildCores ID
jk6np68gi
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD B550
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
GREY
PCIe Slots
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x PCIe 3.0 x4
M.2 Slots
M 2280/ 22110 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2280/ 22110 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8125B 2.5 Gb/s
WiFi
Wifi 6 Bluetooth 5.1
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
6
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
2
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220P
Audio Channels
7.1

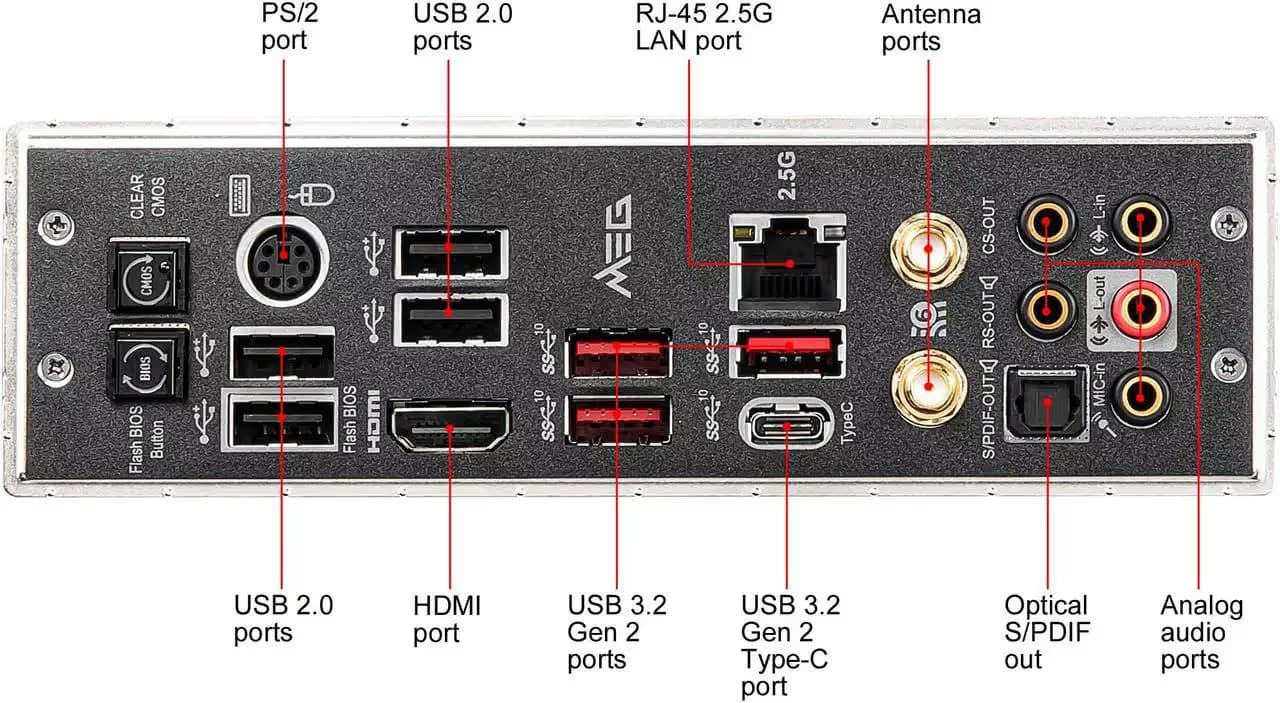

Back Panel Ports
1 x Clear CMOS Button
1 x Flash BIOS Button
1 x PS/2 keyboard/mouse combo port
4 x USB 2.0 Type-A ports
1 x HDMI 2.1 port
3 x USB 3.2 Gen 2 10Gbps Type-A ports
1 x USB 3.2 Gen 2 10Gbps Type-C port
1 x 2.5 Gbps LAN (RJ45) port
2 x Wi-Fi Antenna connectors
5 x Audio jacks
1 x Optical S/PDIF Out connector
Motherboard
3D

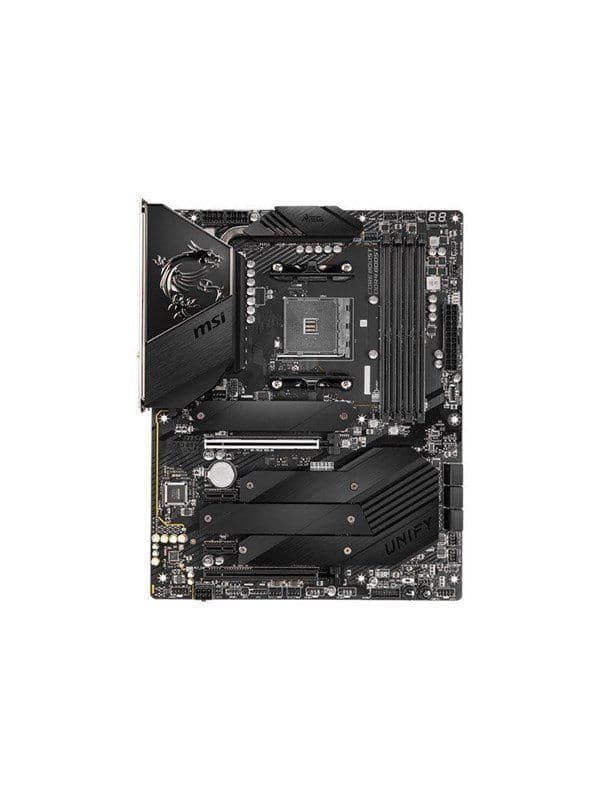

MSI B550 MEG UNIFY AM4 DDR4 ATX
