MSI B850 PRO M-A WIFI PZ AM5 DDR5 Micro ATX image

MSI B850 PRO M-A WIFI PZ AM5 DDR5 Micro ATX main image

Product Information

Manufacturer

MSI

Series

B850

Variant

PRO A WIFI PZ

Release Year

2025

Manufacturer Color

Unknown

UPC

824142433553

EAN

0824142433553

Part Numbers

PRO B850M-A WIFI PZ B850 Gaming Plus WiFi PZ B850 GAMING PLUS WIFI PZ

BuildCores ID

jwe1wwthb

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY WHITE

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 3.0 x1 1 x PCIe 4.0 x1

M.2 Slots

M 2280/2260 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

Yes

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

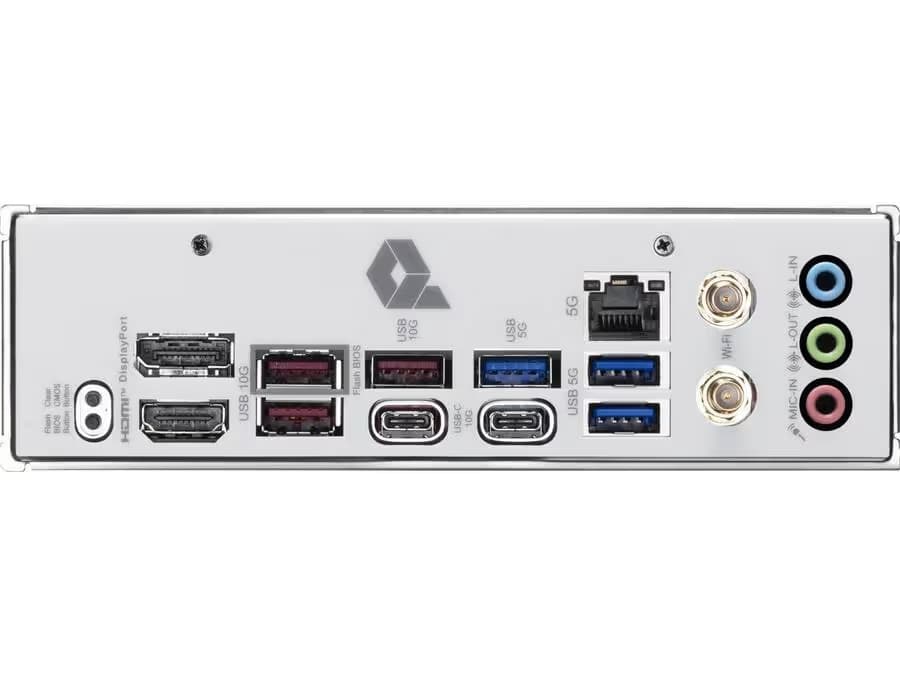

Back Panel Ports

1 x Clear CMOS button 1 x Flash BIOS button 1 x DisplayPort 1 x HDMI port 3 x USB 10Gbps Type-A ports 2 x USB 10Gbps Type-C ports 3 x USB 5Gbps Type-A ports 1 x 5Gbps LAN (RJ45) jack 2 x Wi-Fi Antenna connectors 3 x Audio jacks (Line-in Line-out Mic-in)

See an issue?Report an issue on OpenDB

Motherboard

MSI B850 PRO M-A WIFI PZ AM5 DDR5 Micro ATX

Name: MSI B850 PRO M-A WIFI PZ AM5 DDR5 Micro ATX
Brand: MSI
SKU: jwe1wwthb

Best Price

$162.99

via

	FREE s/h	$162.99
Loading... Loading
	FREE s/h	$219.99
Loading... Loading
	—	$247.99
Loading... Loading
	FREE s/h	$249.99
Loading... Loading
	FREE s/h	$249.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$162.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$219.99 via Walmart Loading... Loading
	—	—	In stock	$247.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$249.99 via Best Buy Loading... Loading
	FREE s/h	—	Out of stock	$249.99 via B&H Photo Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$162.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$219.99 via Walmart Loading... Loading
	—	—	In stock	$247.99 via Amazon Loading... Loading
	FREE s/h	—	In stock	$249.99 via Best Buy Loading... Loading
	FREE s/h	—	Out of stock	$249.99 via B&H Photo Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

MSI

Series

B850

Variant

PRO A WIFI PZ

Release Year

2025

Manufacturer Color

Unknown

UPC

824142433553

EAN

0824142433553

Part Numbers

PRO B850M-A WIFI PZ B850 Gaming Plus WiFi PZ B850 GAMING PLUS WIFI PZ

BuildCores ID

jwe1wwthb

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY WHITE

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 3.0 x1 1 x PCIe 4.0 x1

M.2 Slots

M 2280/2260 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

Yes

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

See an issue?Report an issue on OpenDB

MSI B850 PRO M-A WIFI PZ AM5 DDR5 Micro ATX

Completed Builds
