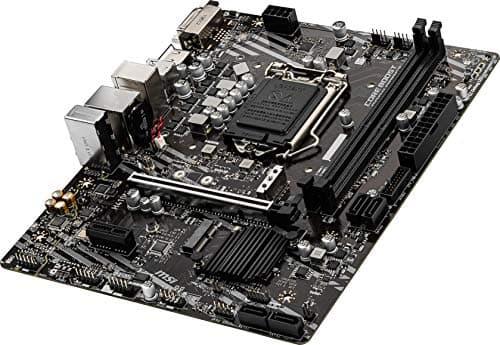

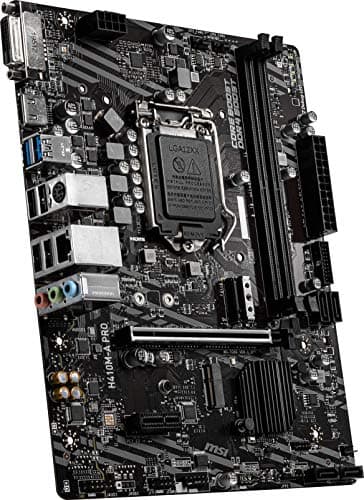

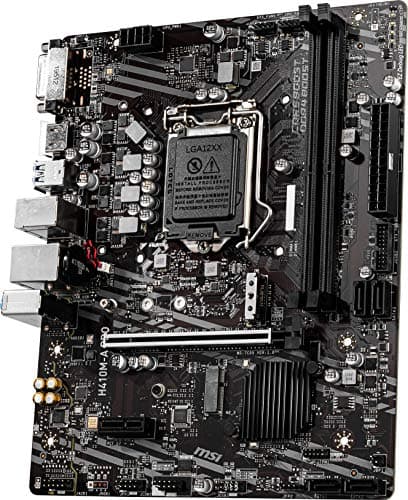

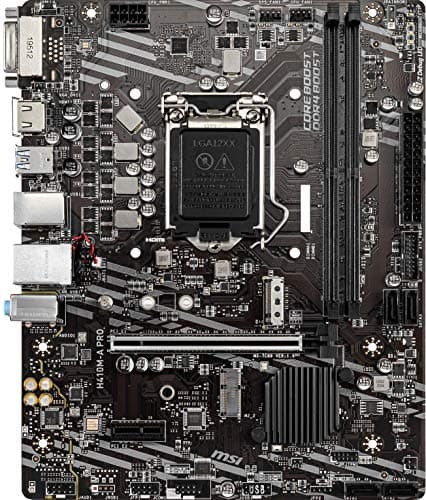

MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image

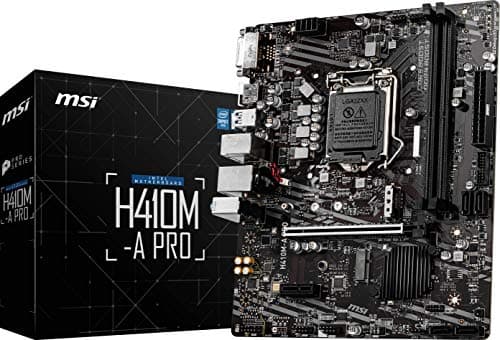

MSI H410M-A PRO main image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
MSI H410M-A PRO image
Product Information
Manufacturer
MSI
Series
PRO
Variant
H410M-A PRO
Release Year
2022
Manufacturer Color
Unknown
UPC
824142218167
EAN
0824142218167
Part Numbers
0824142218167 H410M-A PRO
BuildCores ID
ksz750q6a
General Specifications
Socket
LGA 1200
Form Factor
Micro ATX
Chipset
Intel H410
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
2
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 3.0 x1
M.2 Slots
M 2242 PCIe 3.0 x4 M 2260 PCIe 3.0 x4 M 2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel® I219V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek® ALC892/ALC897 Codec
Audio Channels
7.1

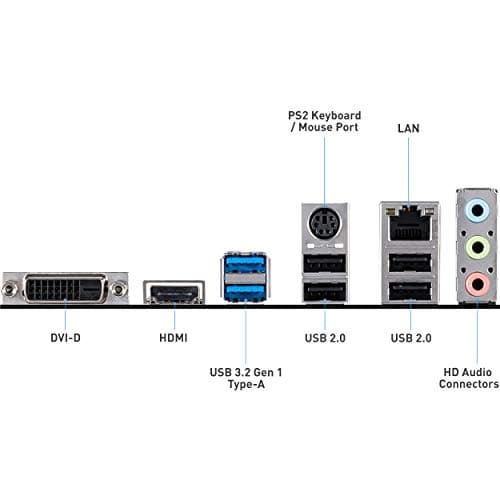

Back Panel Ports
Keyboard/Mouse LAN DVI-D HDMI™ USB 3.2 Gen 1 Type-A USB 2.0 USB 2.0 Audio Connectors
Motherboard

MSI H410M-A PRO

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 2933MHz

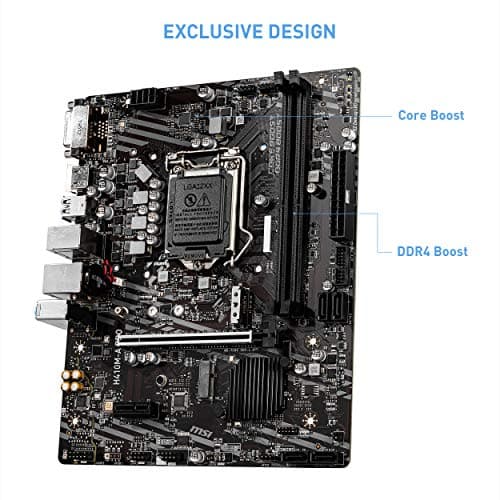

Core Boost: With premium layout and digital power design to support more cores and provide better performance.

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

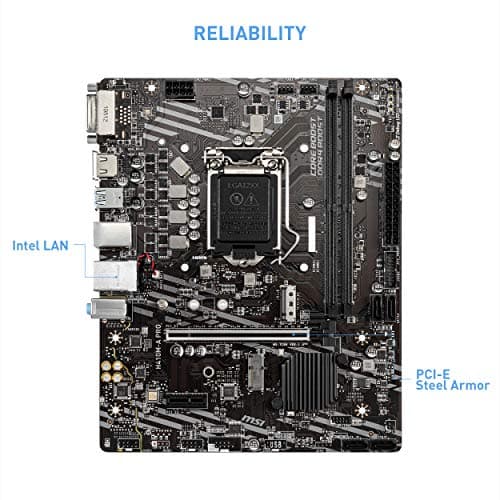

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Additional Features

Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket

Supports DDR4 Memory, up to 2933MHz

Core Boost: With premium layout and digital power design to support more cores and provide better performance.

DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
