General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B850
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
None
PCIe Slots
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
M.2 Slots
M 2260/2280 PCIe 5.0 x4
M 2260/2280 PCIe 4.0 x2
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek RTL8125D 2.5 Gb/s
WiFi
Wifi 6E Bluetooth 5.3
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek
Audio Channels
7.1

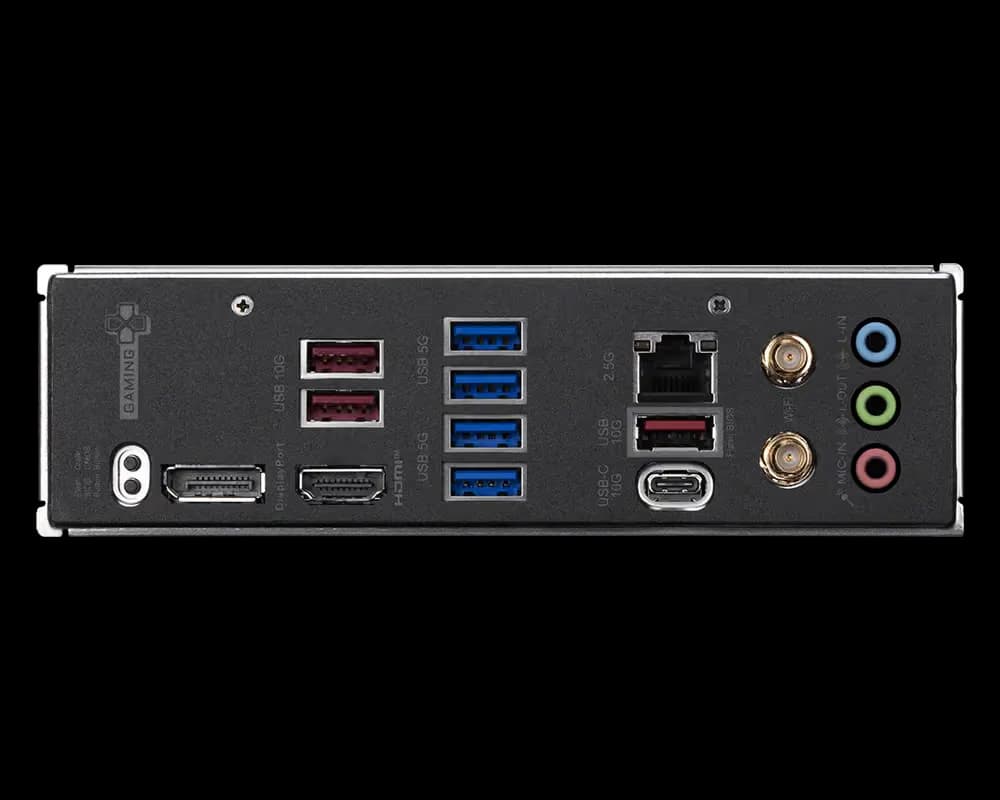

Back Panel Ports
1x Flash BIOS Button
1x Clear CMOS Button
1x DisplayPort
1x HDMI port
2x USB 10Gbps Type A ports
1x USB 10Gbps Type A ports
1x USB 10Gbps Type-C ports
4x USB 5Gbps Type A ports
1x 2.5G LAN (RJ45) port
2x Wi-Fi antenna connectors
3x Audio jacks
Product Information
Manufacturer
MSI
Series
GAMING
Variant
B850M PRO WIFI6E
Release Year
2025
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
B850M GAMING PRO WIFI6E
BuildCores ID
kvi79br5l
Motherboard

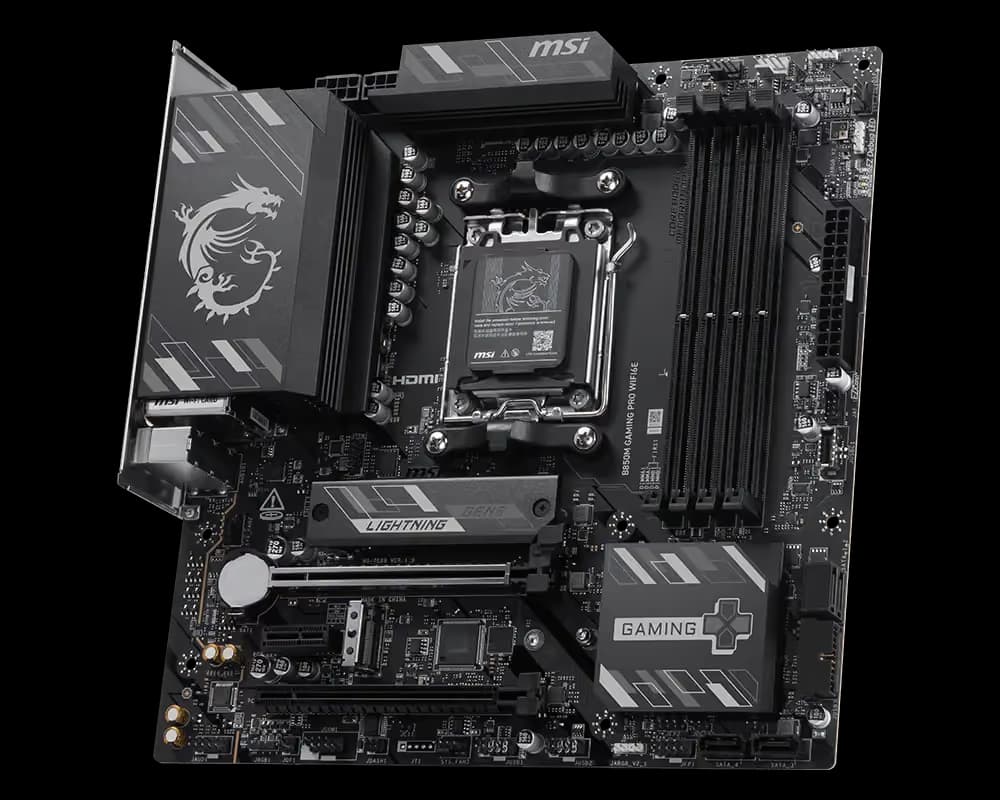

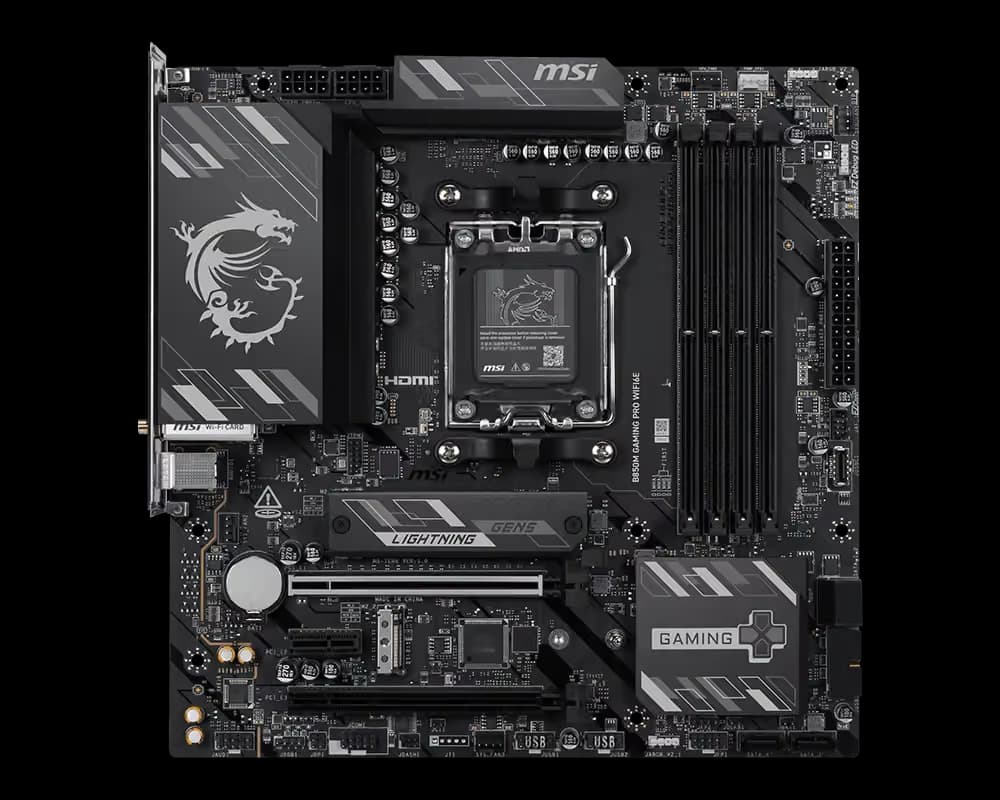

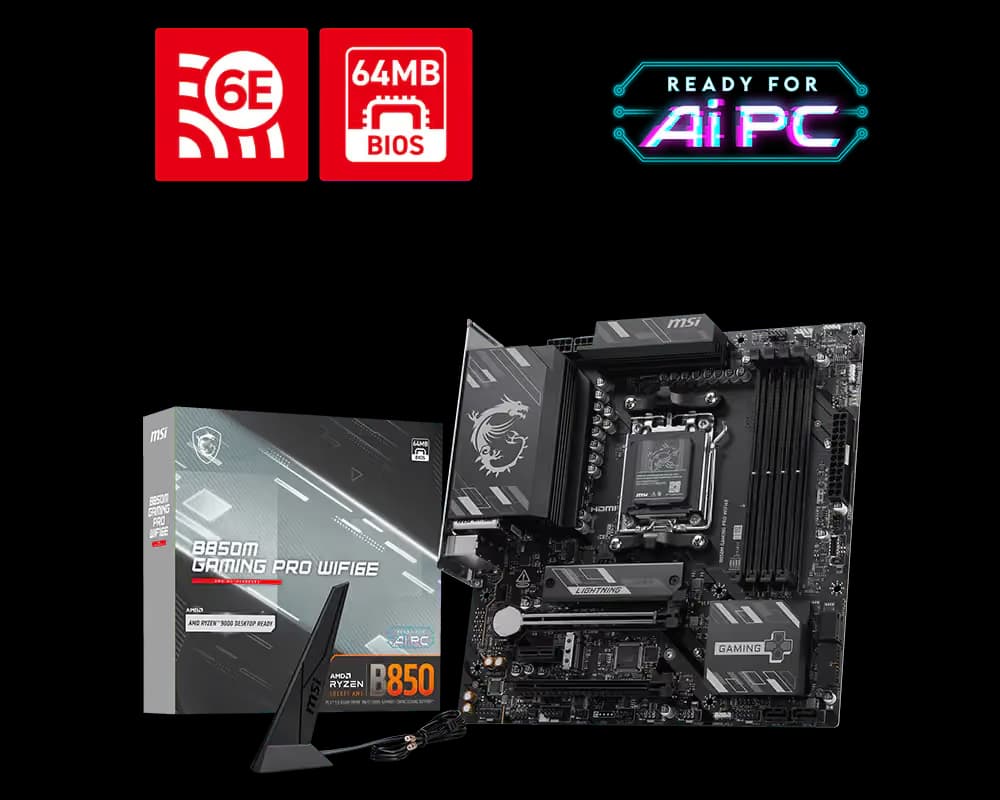

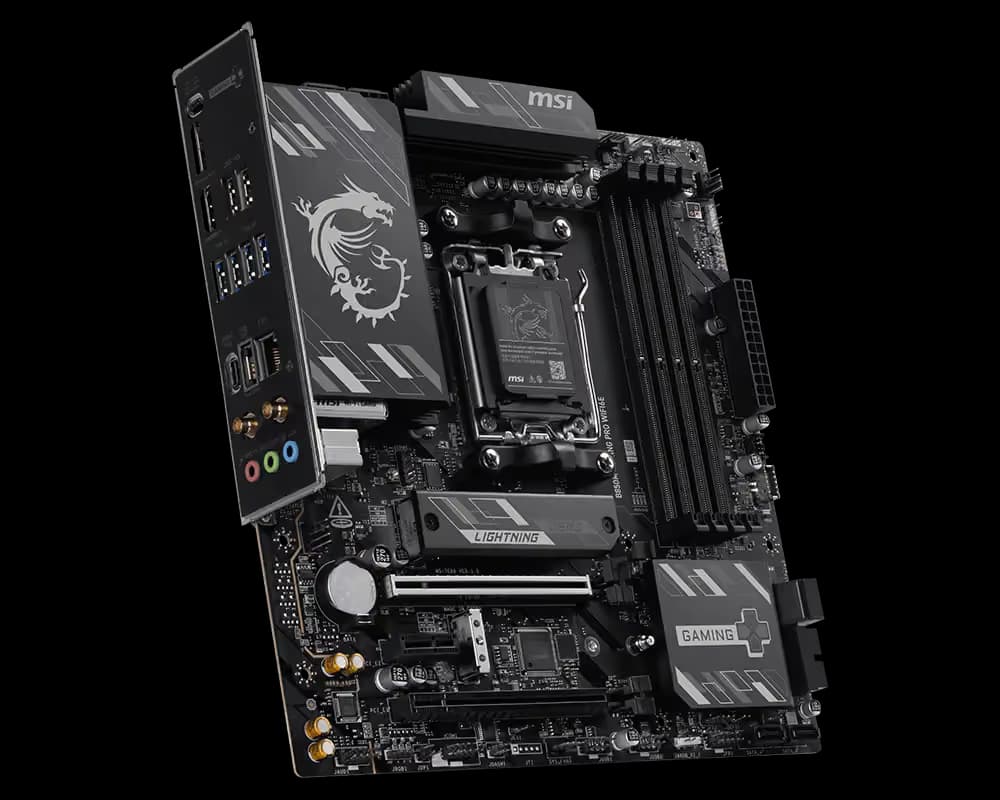

MSI B850M GAMING PRO WIFI6E DDR5 Micro ATX
SocketAM5
Form FactorMicro ATX
ChipsetAMD B850
