General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Weight

Unknown

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 25110/2280 PCIe 5.0 x4/x2 SSD M 25110/2280 PCIe 4.0 x4/x2 SSD M 25110/2280 PCIe 4.0 x4/x2 SSD

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek® ALC1220-VB CODEC

Audio Channels

7.1

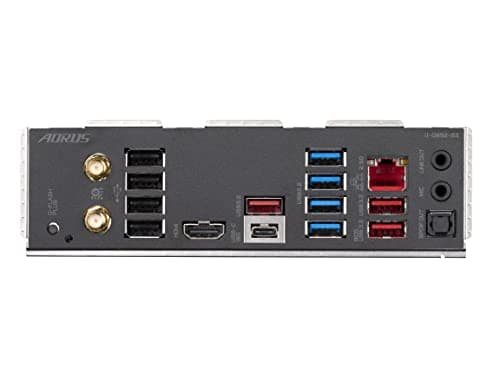

Back Panel Ports

Q-Flash Plus button SMA antenna connectors (2T2R) USB 2.0/1.1 ports HDMI 2.0 port USB 3.2 Gen 2 Type-A ports (red) USB Type-C® port with USB 3.2 Gen 1 support USB 3.2 Gen 1 ports RJ-45 port audio jacks optical S/PDIF Out connector

Display Outputs

Unknown

Product Information

Manufacturer

Gigabyte

Series

AORUS PRO AX

Variant

1.x

Release Year

2022

Manufacturer Color

Unknown

UPC

889523033913

EAN

0889523033913

Part Numbers

B650 B650 AORUS PRO AX

BuildCores ID

lu63z1jzq

See an issue?Report an issue on OpenDB

Motherboard

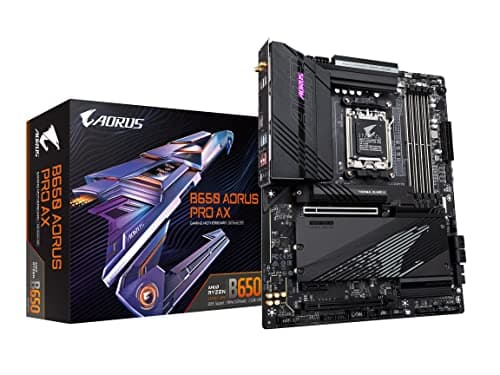

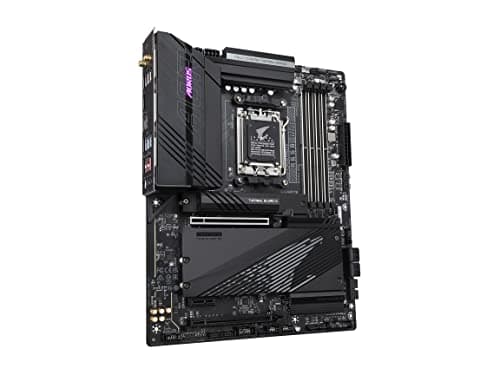

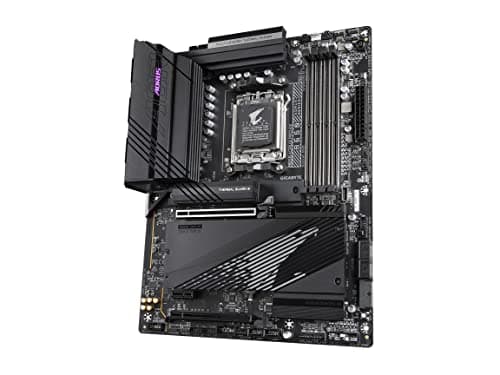

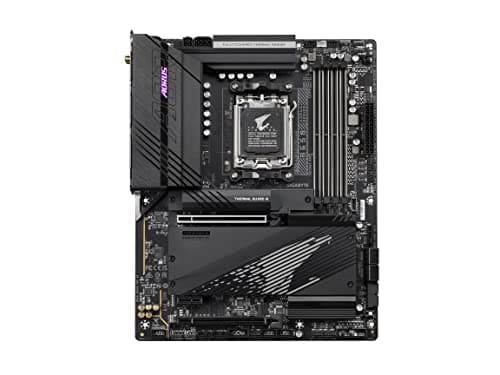

GIGABYTE B650 AORUS PRO AX

SocketAM5

Form FactorATX

ChipsetAMD B650

	—	N/A

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Unavailable	N/A via Amazon

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Unavailable	N/A via Amazon

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Additional Features

• 5-Year Warranty

• AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors

• DDR5 Compatible: 4 SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

• Commanding Power Design: Twin 16plus2plus1 Phases Digital VRM Solution with 90A Power Stage, 8-Layer 2X Copper PCB

• Cutting-Edge Thermal Design: 8mm Mega-Heatpipe, M.2 Thermal Guard III, Fully Coveres MOSFET Heatsinks, PCIe Ultra Durable Armor

• Next Gen Connectivity: PCIe 5.0, 1 PCIe 5.0 M.2, Quad NVMe x4 M.2, USB-C, BT 5

• EZ-Latch: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design

• Fast Networking: Intel 2.5GbE LAN, WiFi 6E 802.11ax

• Dynamic Audio: ALC122 Audio and High-End Audio Capacitors

• Fine Tuning Features: RGB FUSION, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Multi-key for Reset/RGB Switch/Direct to BIOS/Safe Mode, Q-Flash Plus - Update BIOS without installing CPU, Memory, and GPU

Additional Features

• 5-Year Warranty

• AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors

• DDR5 Compatible: 4 SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support

• Commanding Power Design: Twin 16plus2plus1 Phases Digital VRM Solution with 90A Power Stage, 8-Layer 2X Copper PCB

• Cutting-Edge Thermal Design: 8mm Mega-Heatpipe, M.2 Thermal Guard III, Fully Coveres MOSFET Heatsinks, PCIe Ultra Durable Armor

• Next Gen Connectivity: PCIe 5.0, 1 PCIe 5.0 M.2, Quad NVMe x4 M.2, USB-C, BT 5

• EZ-Latch: PCIe 5.0 & M.2 Connectors with a Quick Release & Screwless Design

• Fast Networking: Intel 2.5GbE LAN, WiFi 6E 802.11ax

• Dynamic Audio: ALC122 Audio and High-End Audio Capacitors
