General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X870
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 4.0 x1
M.2 Slots
M 2280 PCIe 5.0 x4
M 2280 PCIe 3.0 x2
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek Dragon RTL8125BG 2.5 Gb/s
WiFi
Wi-Fi 7
USB 2.0
2
USB 3.2 Gen 1
3
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
2
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1

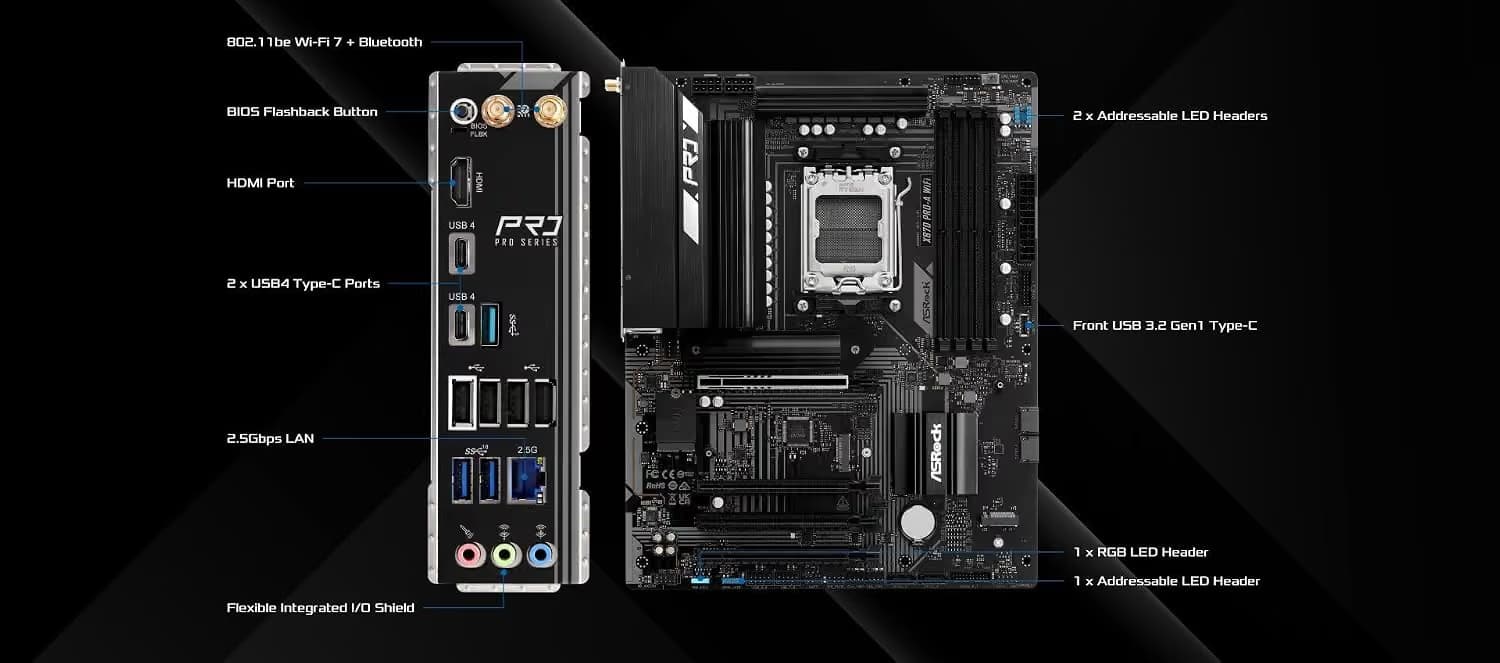

Back Panel Ports
2 x Antenna Ports
1 x HDMI Port
2 x USB4 Type-C Ports
2 x USB 3.2 Gen2 Type-A Ports
1 x USB 3.2 Gen1 Type-A Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Display Outputs
Connector: hdmi
Count: 1
Version Label: 2.1
Video Signal: hdmi
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 3840 × 2160 px
Refresh Rate: 120
Claim: maximum_at_resolution
Hdr: supported
Conditions: Maximum resolution up to 4K at 120Hz; supports HDR and HDCP 2.3.
Connector: usb_c
Count: 2
Version Label: USB4 (40 Gbps)
Video Signal: displayport
Transport: usb4
Graphics Route: integrated
Mode Claims: Resolution: 7680 × 4320 px
Refresh Rate: 30
Claim: maximum_at_resolution
Conditions: Maximum resolution up to 8K at 30Hz; requires a supported AM5 Ryzen processor with embedded graphics.
Product Information
Manufacturer
ASRock
Series
PRO
Variant
X870-A WIFI
Release Year
2025
Manufacturer Color
Black
UPC
None
EAN
4710483942310
Part Numbers
X870 Pro-A WiFi
BuildCores ID
m5mvaxcwa

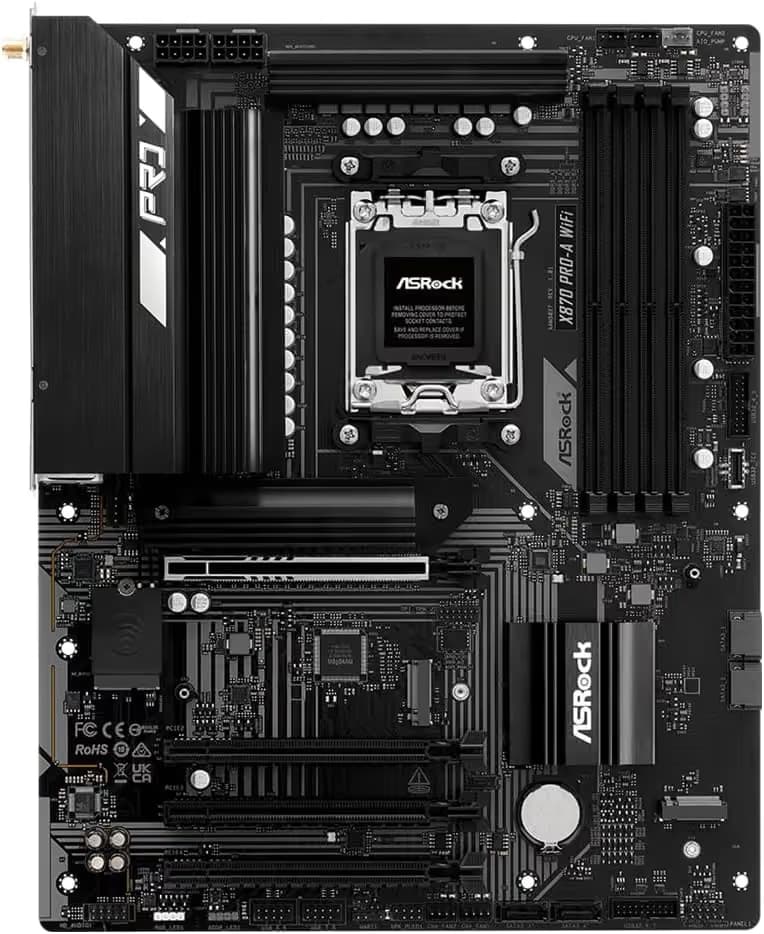

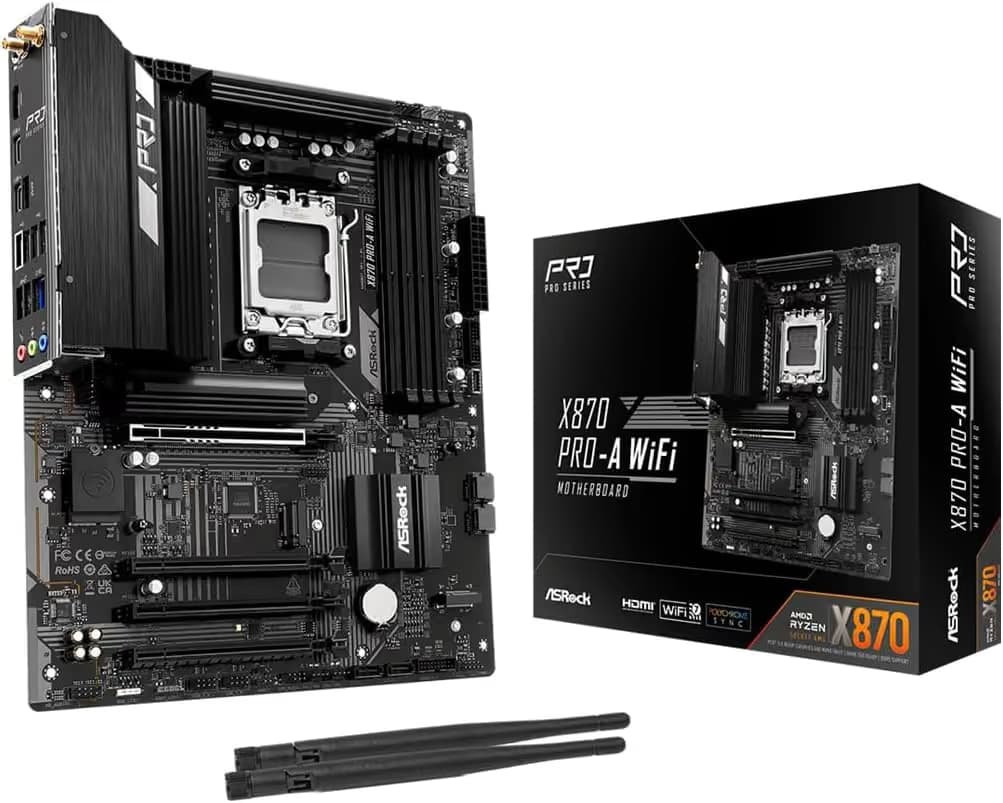

Motherboard
ASRock X870 Pro-A WiFi DDR5 ATX
SocketAM5
Form FactorATX
ChipsetAMD X870
