Product Information
Manufacturer
ASUS
Series
Q470
Variant
Unknown
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
Pro Q470M-C
CSM
90MB1380-M0EAYC
BuildCores ID
mr2ooeql1
General Specifications
Socket
LGA 1200
Form Factor
Micro ATX
Chipset
Intel Q470
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
GREEN
PCIe Slots
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
M.2 Slots
M 2242-2260 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2242-2260 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
E 2280 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219-LM 1 Gb/s
WiFi
Unknown
USB 2.0
1
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x 1 Gb/s (Intel I219-LM)
Motherboard

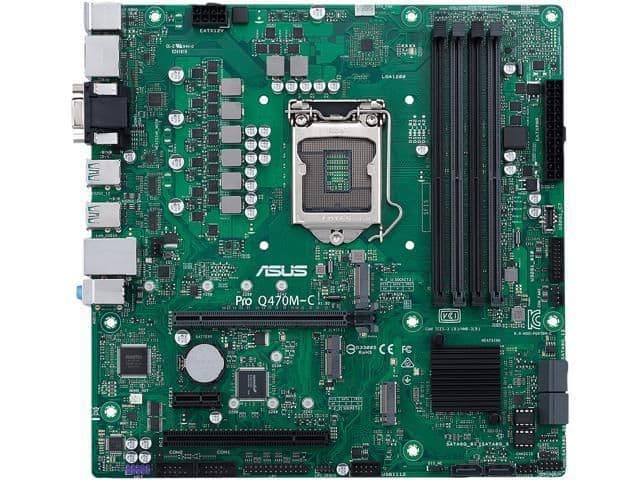

Asus Q470 Pro Q470M-C/CSM LGA1200 DDR4 Micro ATX
