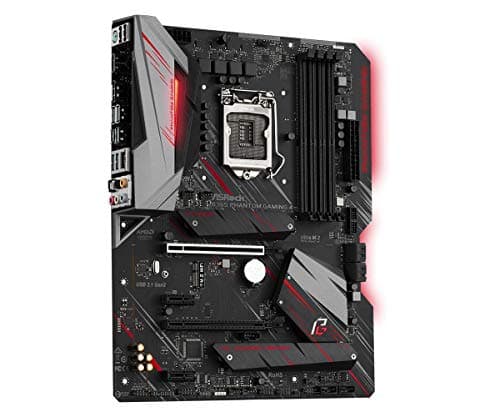

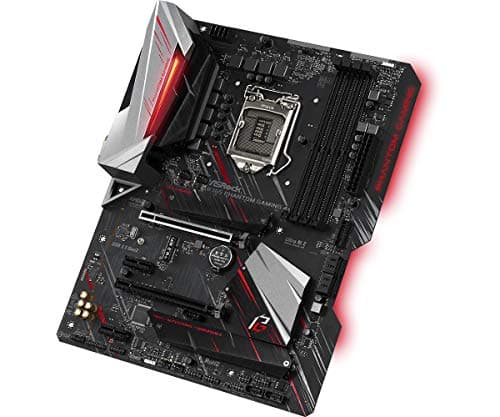

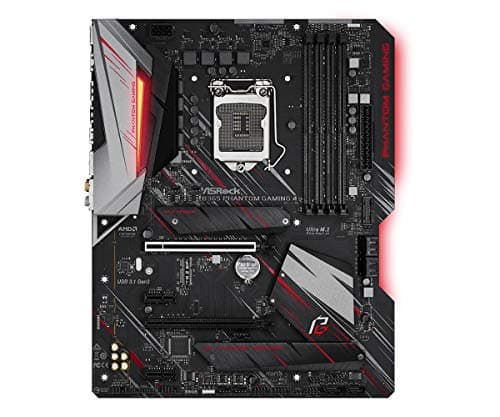

ASRock B365M Phantom Gaming 4 main image

Product Information

Manufacturer

ASRock

Series

Phantom Gaming

Release Year

2019

Manufacturer Color

Unknown

UPC

889523017203

EAN

4717677338034

Part Numbers

B365 PHANTOM GAMING 4

BuildCores ID

nccw1mm0c

General Specifications

Socket

LGA 1151v2

Form Factor

Micro ATX

Chipset

Intel B365

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

2 x PCIe 3.0 x16 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 3.0 x4 M 2242/2260/2280/22110 PCIe 3.0 x4 SATA3

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I219V 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC1200

Audio Channels

7.1

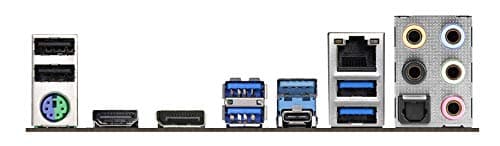

Back Panel Ports

1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.2 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

See an issue?Report an issue on OpenDB

Motherboard

ASRock B365M Phantom Gaming 4

	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• Cpu: LGA1151, Supports 9th/ 8th Generation Intel Core processors, CPU up to 95W

• Chipset: Intel B365

• Memory: 4x DDR4-2666/ 2400/ 2133 DIMM slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB

• Slots: 2x PCI-Express 3.0 x16 Slots (single at x16; dual at x16/ x4), 2x PCI Express 3.0 x1 Slots (flexible PCIe)

• Multi-graphics: Supports AMD Quad CrossFireX and CrossFireX Technology

Additional Features

• Cpu: LGA1151, Supports 9th/ 8th Generation Intel Core processors, CPU up to 95W

• Chipset: Intel B365

• Memory: 4x DDR4-2666/ 2400/ 2133 DIMM slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB

• Slots: 2x PCI-Express 3.0 x16 Slots (single at x16; dual at x16/ x4), 2x PCI Express 3.0 x1 Slots (flexible PCIe)

• Multi-graphics: Supports AMD Quad CrossFireX and CrossFireX Technology
