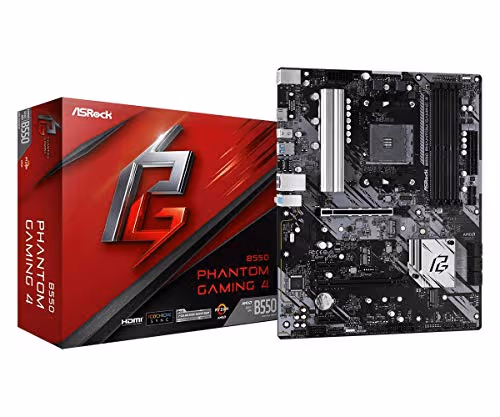

ASROCK B550 PHANTOM GAMING 4 AM4 DDR4 ATX image

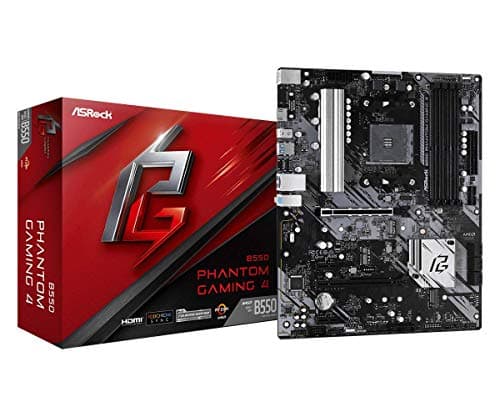

ASROCK B550 PHANTOM GAMING 4 AM4 DDR4 ATX main image

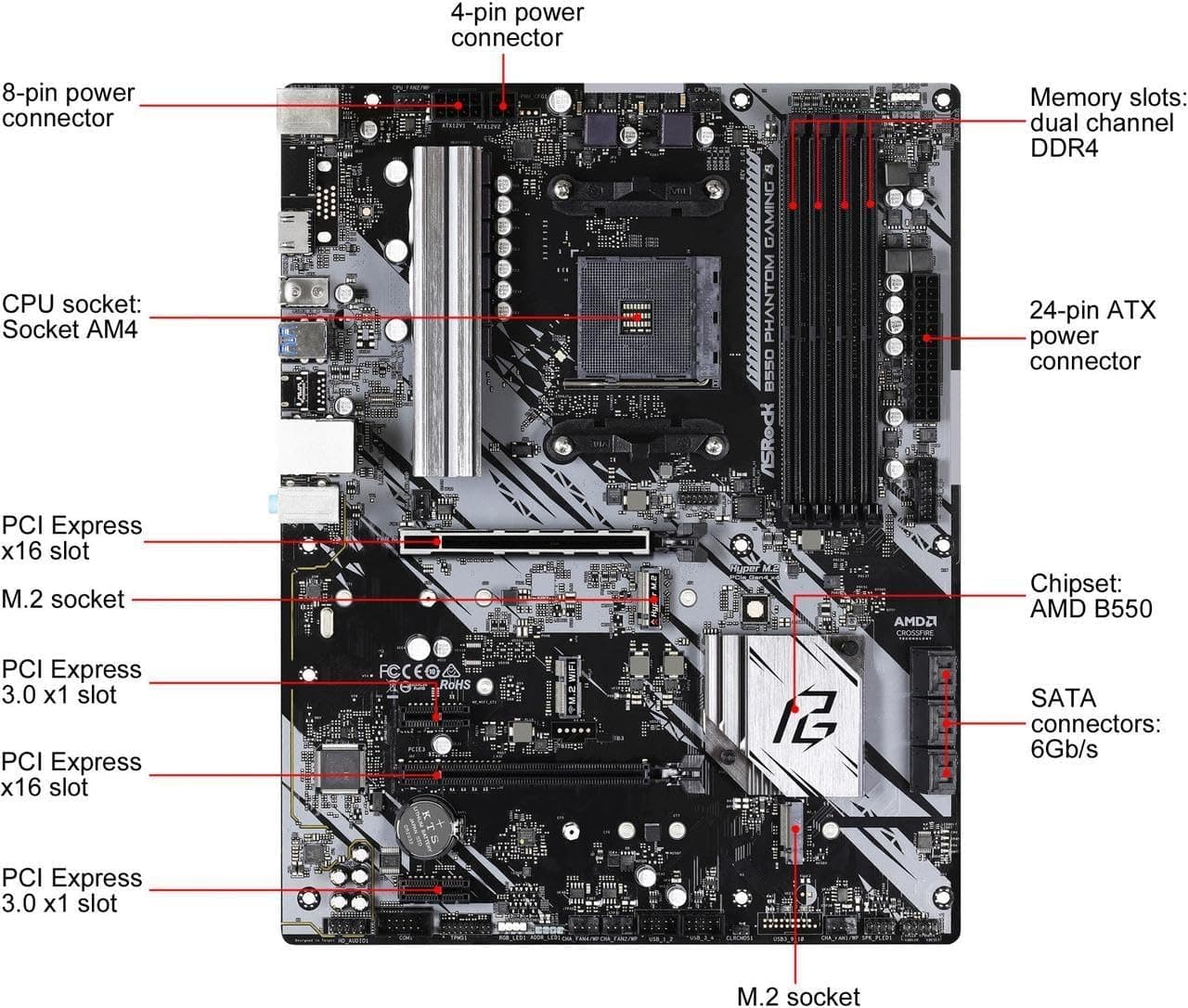

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

Lighting

RGB ARGB

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x4 2 x PCIe 3.0 x1

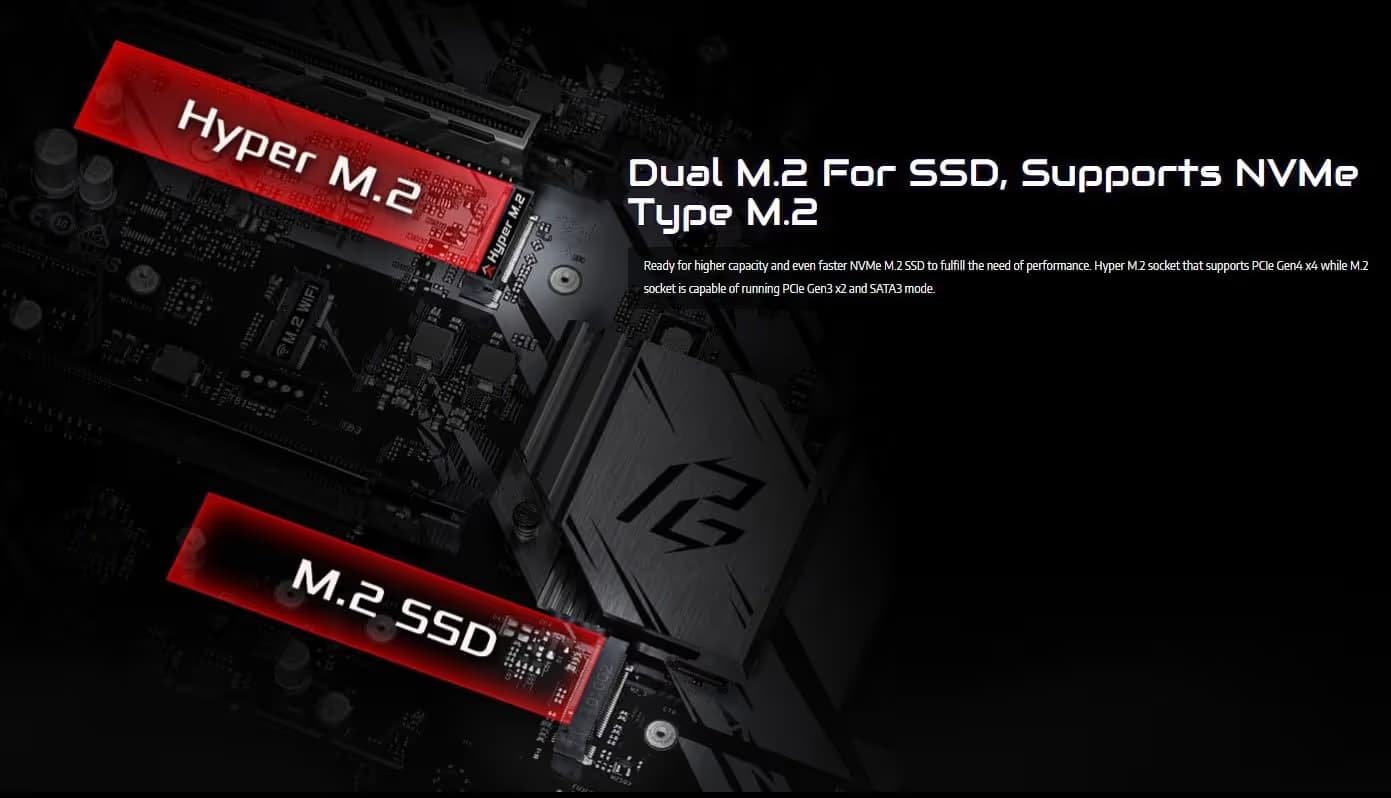

M.2 Slots

M 2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 3.0 x2 / SATA E 2230 PCIe

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8111H 1 Gb/s

WiFi

None

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

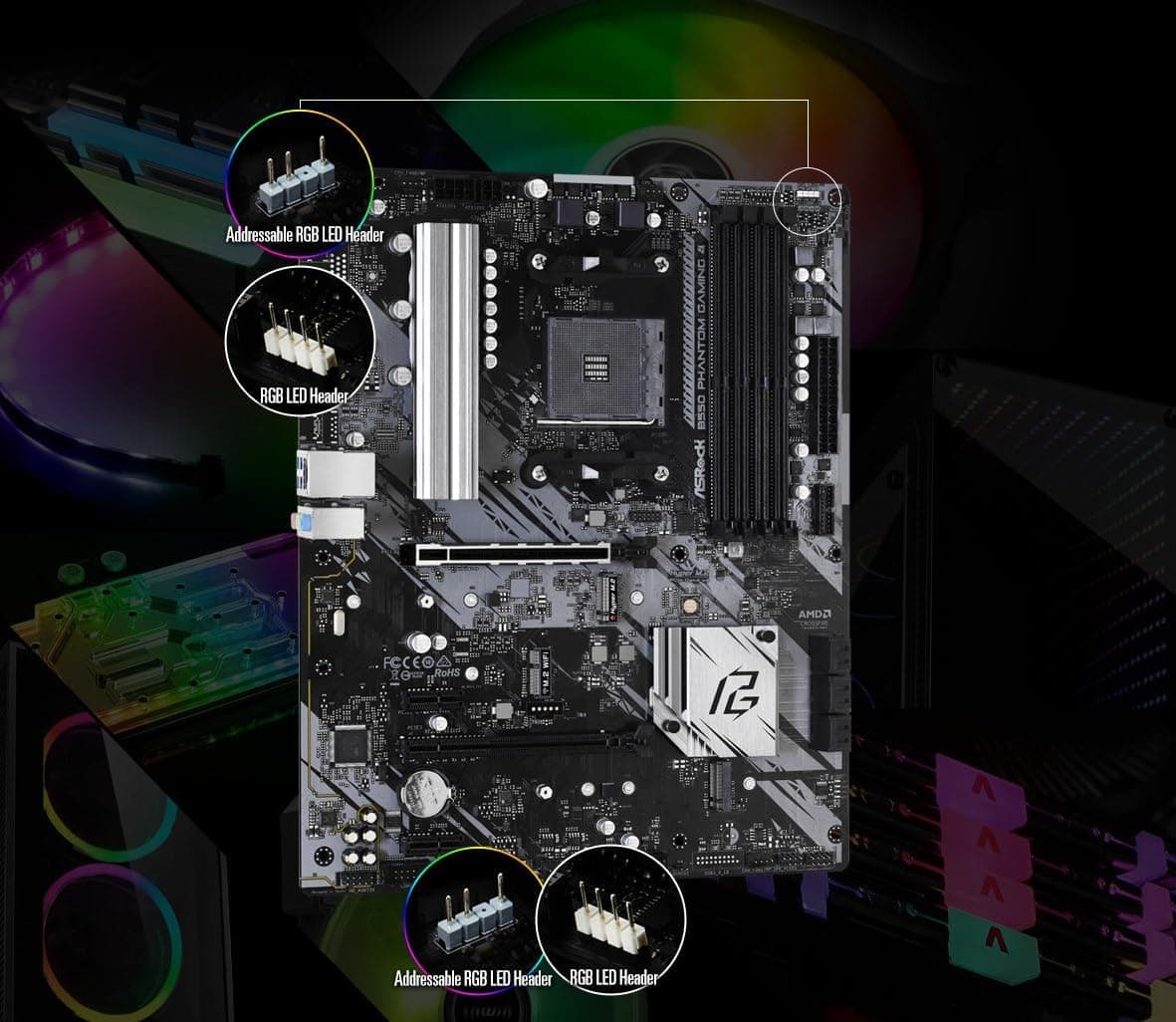

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

4-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC1220/ALC1200 Audio

Audio Channels

7.1

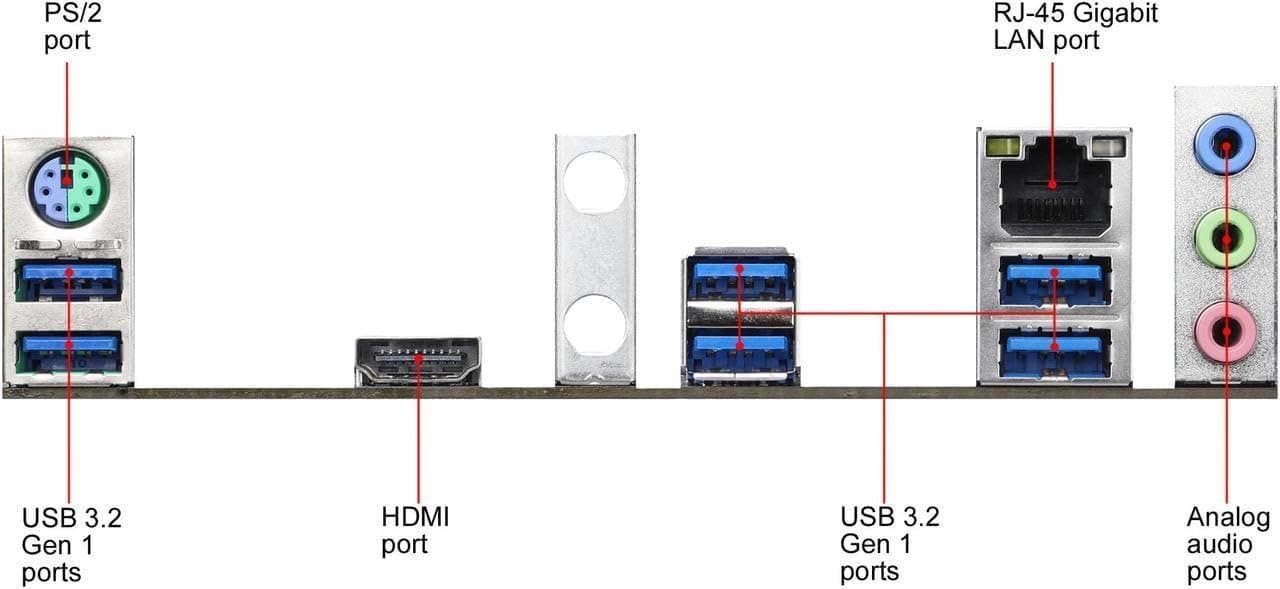

Back Panel Ports

2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 6 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

Product Information

Manufacturer

ASRock

Series

Phantom Gaming

Variant

B550 4

Release Year

2020

Manufacturer Color

Sapphire Black

UPC

192876748787

EAN

4710483931499 0192876748787

Part Numbers

B550 Phantom Gaming 4 90-MXBCY0-A0UAYZ B550 PHANTOM GAMING 4 ROG STRIX B550-F GAMING (WI-FI)

BuildCores ID

ngxa08orj
