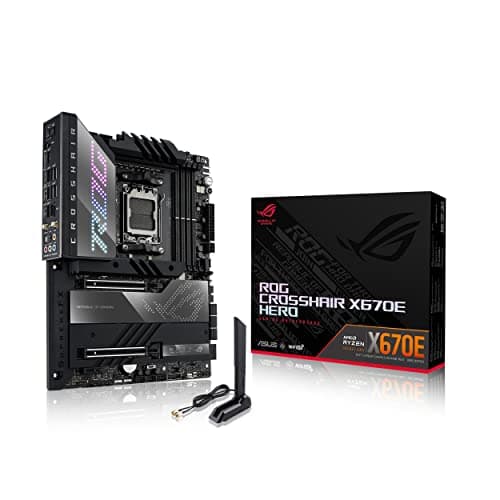

ASUS X670E ROG CROSSHAIR HERO WIFI DDR5 ATX image

ASUS X670E ROG CROSSHAIR HERO WIFI DDR5 ATX main image

Product Information

Manufacturer

ASUS

Series

X670E

Variant

CROSSHAIR HERO

Release Year

Unknown

Manufacturer Color

Unknown

UPC

195553862424

EAN

0195553862424

Part Numbers

ROG CROSSHAIR X670E HERO 90MB1BC0-M0AAY0 90MB1BC0-M0EAY0

BuildCores ID

nmy3cyz20

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670E

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 1 x PCIe 4.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC887

Audio Channels

7.1

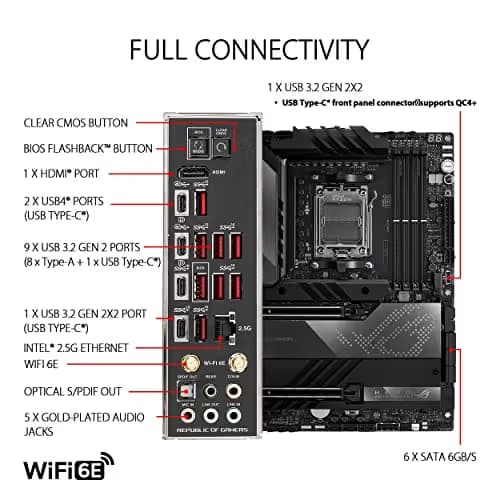

Back Panel Ports

2 x USB4 (2 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 9 x USB 3.2 Gen 2 ports 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

See an issue?Report an issue on OpenDB

Motherboard

ASUS X670E ROG CROSSHAIR HERO WIFI DDR5 ATX

	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

ASUS

Series

X670E

Variant

CROSSHAIR HERO

Release Year

Unknown

Manufacturer Color

Unknown

UPC

195553862424

EAN

0195553862424

Part Numbers

ROG CROSSHAIR X670E HERO 90MB1BC0-M0AAY0 90MB1BC0-M0EAY0

BuildCores ID

nmy3cyz20

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670E

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 5.0 x8 1 x PCIe 4.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC887

Audio Channels

7.1

Back Panel Ports

See an issue?Report an issue on OpenDB

ASUS X670E ROG CROSSHAIR HERO WIFI DDR5 ATX

Completed Builds
