General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B850
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
2
Colors
ORANGE
GREY
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
None
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
1
Pump Headers
2
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x HDMI port
1 x DisplayPort
1 x PS/2 keyboard/mouse port
1 x USB Type-C port
2 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port
2 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Product Information
Manufacturer
Gigabyte
Series
Ultra Durable
Variant
B850M FORCE
Release Year
2025
Manufacturer Color
Black/White
UPC
None
EAN
None
Part Numbers
B850M FORCE
BuildCores ID
nqw7uu3bj
Motherboard

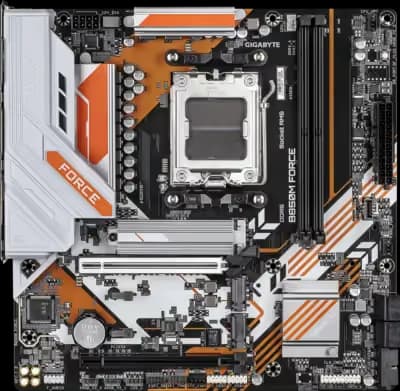

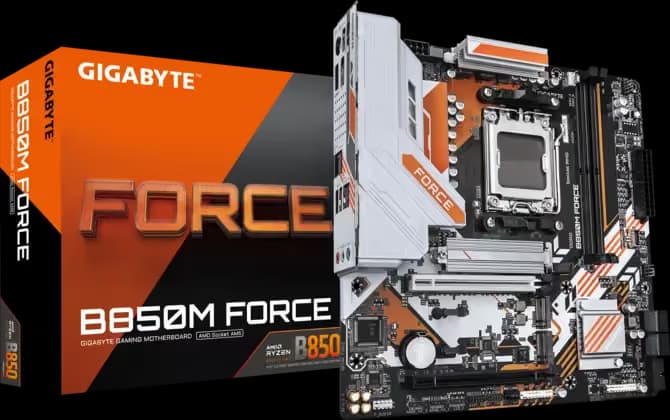

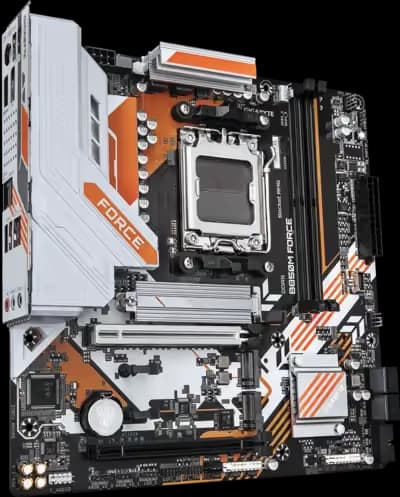

Gigabyte B850M FORCE AM5 DDR5 Micro ATX
SocketAM5
Form FactorMicro ATX
ChipsetAMD B850
