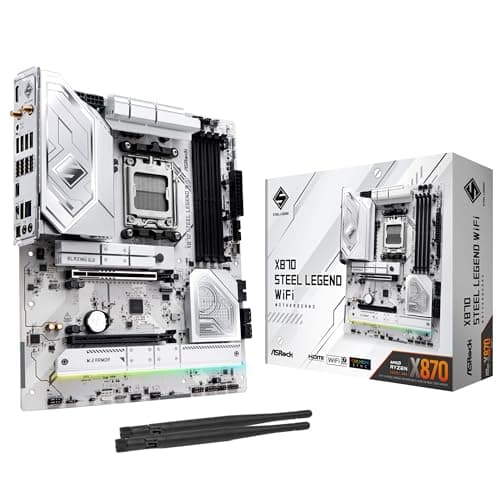

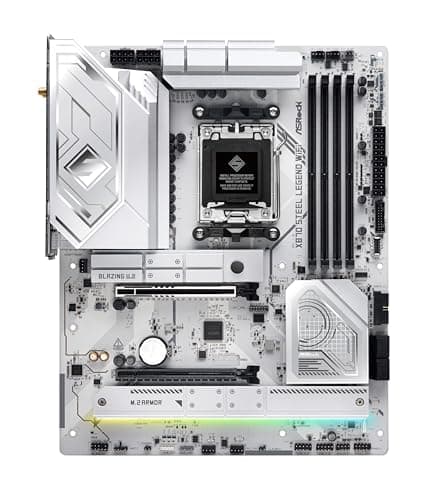

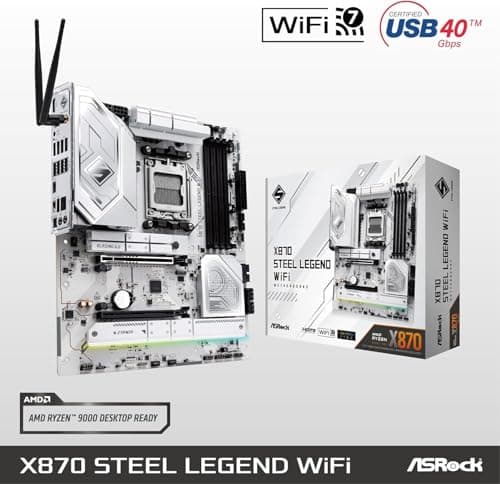

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image

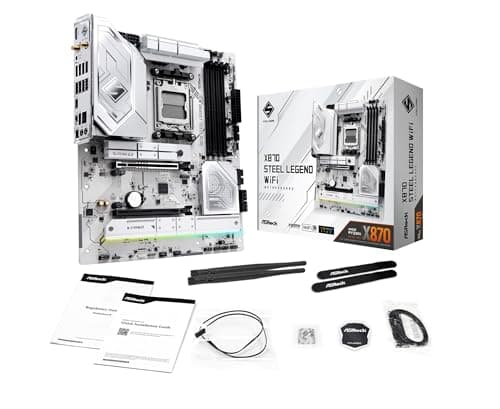

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image

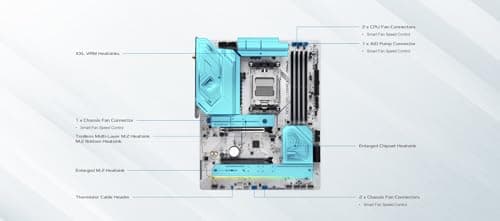

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image

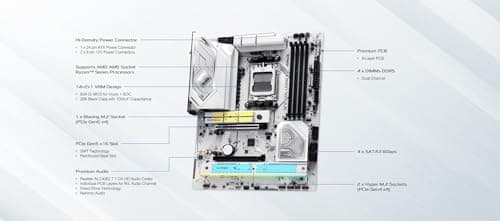

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image
ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image

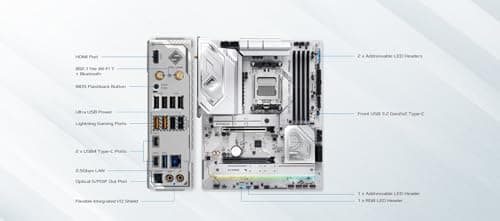

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image
ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image

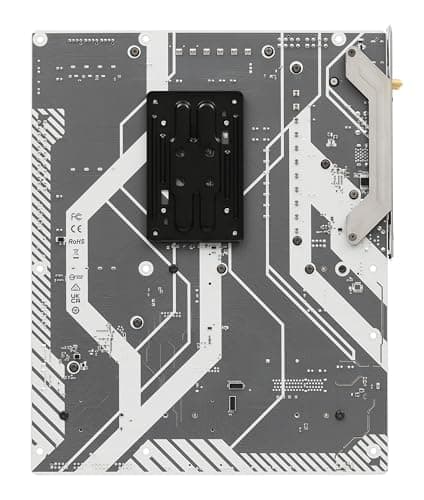

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image
ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image
ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image
ASRock X870 Steel Legend WiFi AM5 DDR5 ATX image
ASRock X870 Steel Legend WiFi AM5 DDR5 ATX main image
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X870
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
WHITE
Lighting
RGB
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4
M.2 Slots
M 2280 PCIe 5.0 x4 M 2230/2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek Dragon RTL8125BG 2.5 Gb/s
WiFi
Wifi 6E
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
2
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin 8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC4082
Audio Channels
7.1

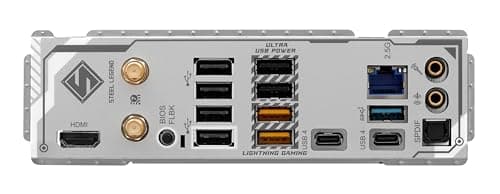

Back Panel Ports
2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s) 3 x USB 3.2 Gen1 Type-A Ports (USB32_12 are Lightning Gaming Ports.) 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_34 supports Ultra USB Power.) 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack)
Display Outputs
Connector: hdmi Count: 1 Version Label: 2.1 Video Signal: hdmi Transport: native Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 120 Claim: maximum_at_resolution Hdr: supported Conditions: Maximum resolution up to 4K at 120Hz; supports HDR and HDCP 2.3. Connector: usb_c Count: 2 Version Label: USB4 (40 Gbps) Video Signal: displayport Transport: usb4 Graphics Route: integrated Mode Claims: Resolution: 7680 × 4320 px Refresh Rate: 30 Claim: maximum_at_resolution Conditions: Maximum resolution up to 8K at 30Hz. Requires a supported AM5 Ryzen processor with integrated graphics.
Product Information
Manufacturer
ASRock
Series
Steel Legend
Variant
X870 WIFI
Release Year
2024
Manufacturer Color
White
UPC
4710483949340
EAN
4710483949340
Part Numbers
X870 Steel Legend WiFi 90-MXBPJ0-A0UAYZ X870 STEEL LEGEND WIFI 90-MXBPJ0-A0UAYAZ
BuildCores ID
nvlk8qy8b
Motherboard

ASRock X870 Steel Legend WiFi AM5 DDR5 ATX

Best Price

$169.99

via
Loading...
Amazon
—

$169.99

Newegg
FREE s/h

$242.99

Walmart
FREE s/h

$243.99

MemoryC
—

$359.15

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
—
—
In stock

$169.99

via Amazon

Newegg
FREE s/h
—
In stock

$242.99

via Newegg

Walmart
FREE s/h
—
In stock

$243.99

via Walmart

MemoryC
—
—
Backordered

$359.15

via MemoryC

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
—
—
In stock

$169.99

via Amazon

Newegg
FREE s/h
—
In stock

$242.99

via Newegg

Walmart
FREE s/h
—
In stock

$243.99

via Walmart

MemoryC
—
—
Backordered

$359.15

via MemoryC

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
