General Specifications

Socket

LGA 1151

Form Factor

Micro ATX

Chipset

Intel H310

Max Memory

32 GB

Memory Type

DDR4

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 3.0 x16 2 x PCIe 2.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 2.0 x4 SATA 6Gb/s

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I219-V 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC887

Audio Channels

7.1

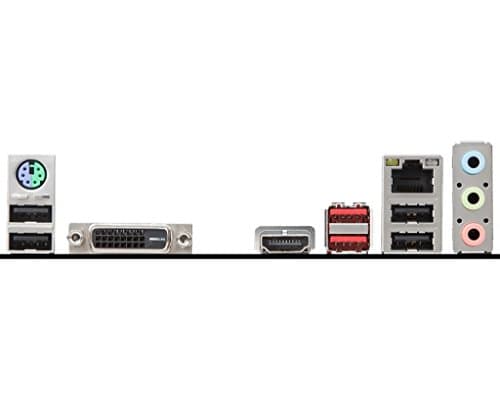

Back Panel Ports

PS/2 Combo Port LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI USB 3.1 Gen1 Port USB 2.0 Port

Product Information

Manufacturer

MSI

Series

H310M GAMING

Release Year

2018

Manufacturer Color

Unknown

UPC

824142159521

EAN

0824142159521

Part Numbers

H310M GAMING ARCTIC

BuildCores ID

nxnezs85e

See an issue?Report an issue on OpenDB

Motherboard

H310M GAMING ARCTIC

SocketLGA 1151

Form FactorMicro ATX

ChipsetIntel H310

No retailers available yet

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Additional Features

• Supports 8th Gen Intel Core, Pentium gold and Celeron processors for socket LGA 1151

• Supports DDR4 Memory, up to 2666 MHz

• Core boost: with premium layout and optimized power design to support more Cores and provide better performance

• M.2 and NVMe support, up to 20 GB/s using PCI-Express Gen2 x4

• DDR4 boost: advanced technology to deliver pure data signals for the best gaming performance and stability

Additional Features

• Supports 8th Gen Intel Core, Pentium gold and Celeron processors for socket LGA 1151

• Supports DDR4 Memory, up to 2666 MHz

• Core boost: with premium layout and optimized power design to support more Cores and provide better performance

• M.2 and NVMe support, up to 20 GB/s using PCI-Express Gen2 x4

• DDR4 boost: advanced technology to deliver pure data signals for the best gaming performance and stability
