General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD B850
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
GOLD
Lighting
None
PCIe Slots
2 x PCIe 5.0 x16
1 x PCIe 4.0 x4
1 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 5 Gb/s
WiFi
WiFi-7
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
1
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC1220P
Audio Channels
7.1

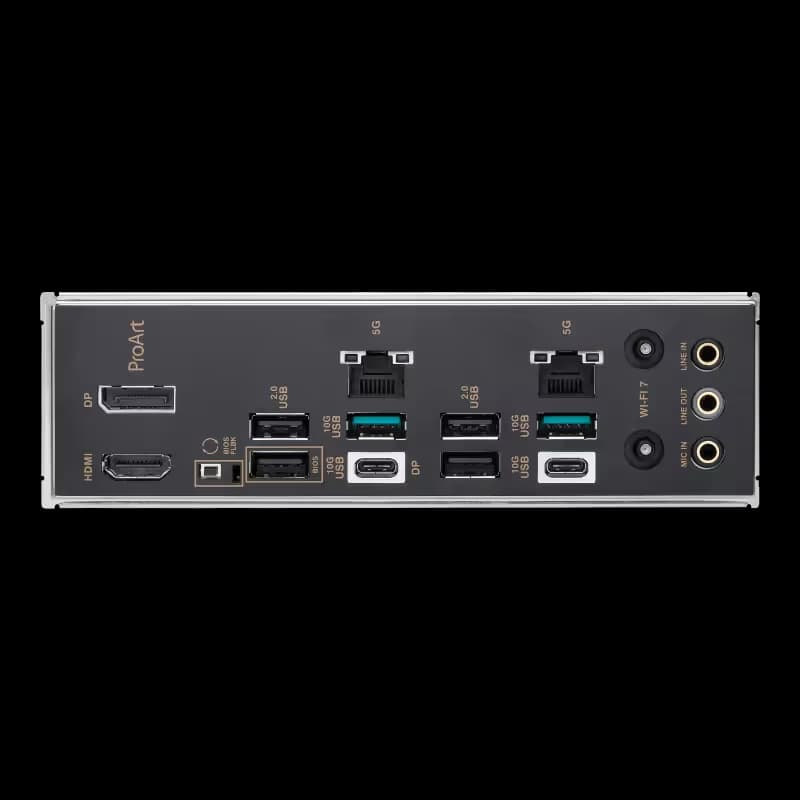

Back Panel Ports
2 x USB 10Gbps ports (1 x Type-C + 1 x Type-C with Alt mode)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
2 x Realtek 5Gb Ethernet ports
3 x Audio jacks
1 x BIOS FlashBack button
Product Information
Manufacturer
ASUS
Series
ProArt
Variant
B850-CREATOR WIFI NEO
Release Year
2026
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
ProArt-B850-CREATOR-WIFI-NEO
BuildCores ID
ohqdzla60

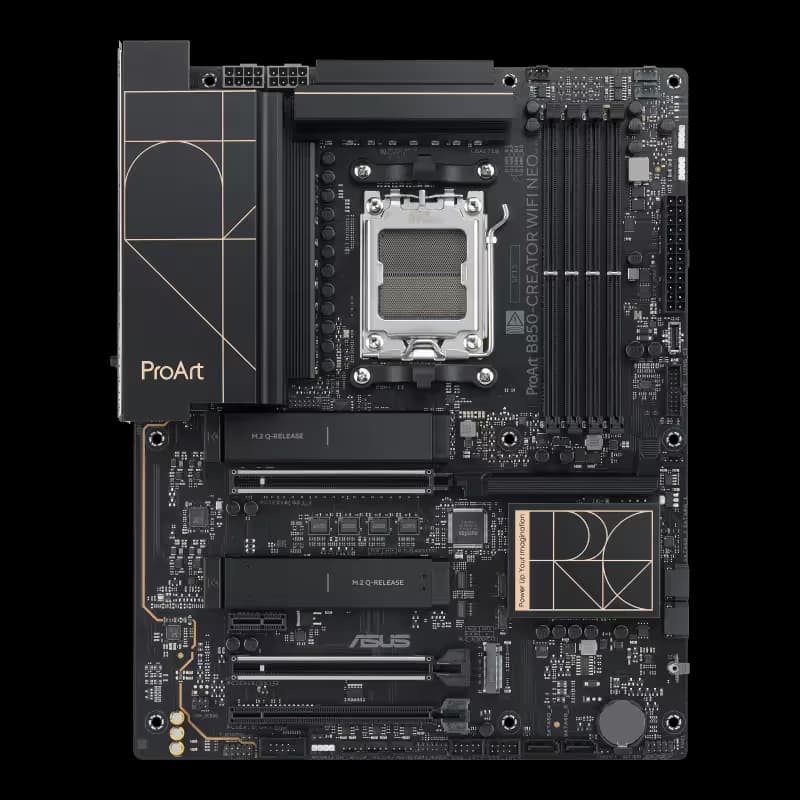

Motherboard
ASUS ProArt B850-CREATOR WIFI NEO
