General Specifications
Socket
LGA 1700
Form Factor
Micro ATX
Chipset
Intel B760
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
GREY
BLACK
Lighting
None
PCIe Slots
1 x PCIe 4.0 x16
1 x PCIe 4.0 x4
2 x PCIe 4.0 x1
M.2 Slots
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 3.0 x2
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 1 Gb/s
WiFi
WiFi 6 Bluetooth 5.3
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
2
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
2 x USB 10Gbps ports
4 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Product Information
Manufacturer
ASUS
Series
PRIME
Variant
B760M-A AX6
Release Year
2023
Manufacturer Color
Black/Silver
UPC
None
EAN
None
Part Numbers
PRIME B760M-A AX6
BuildCores ID
opkdn0oj4

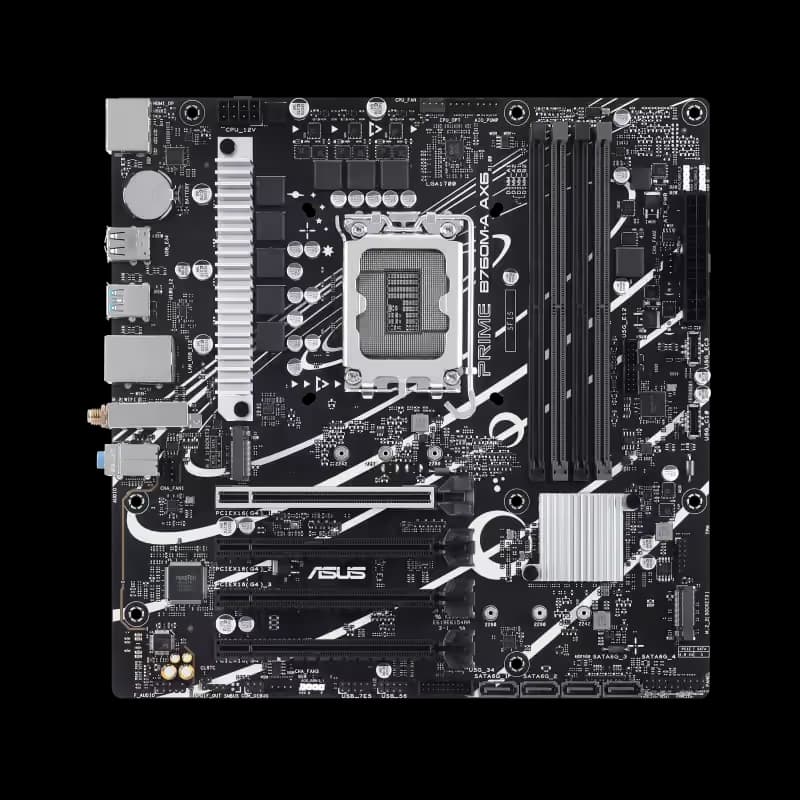

Motherboard
ASUS PRIME B760M-A AX6
SocketLGA 1700
Form FactorMicro ATX
ChipsetIntel B760
