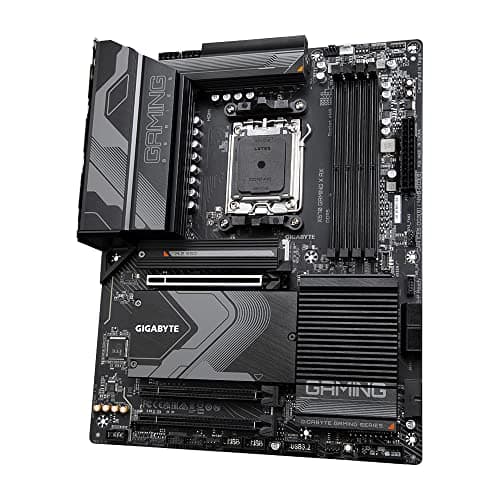

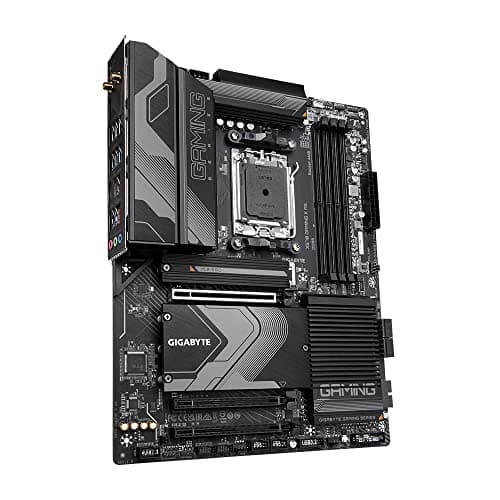

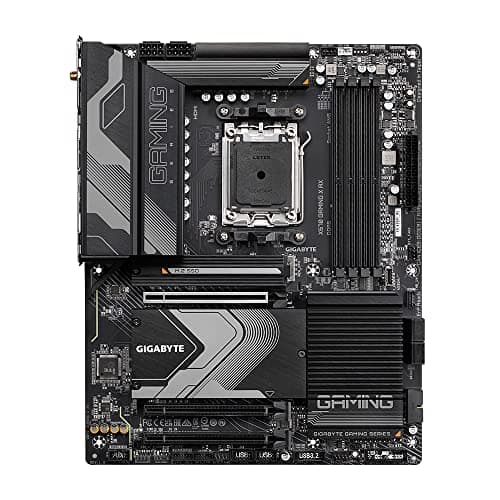

Gigabyte X670 GAMING X AX (rev. 1.0) DDR5 ATX image

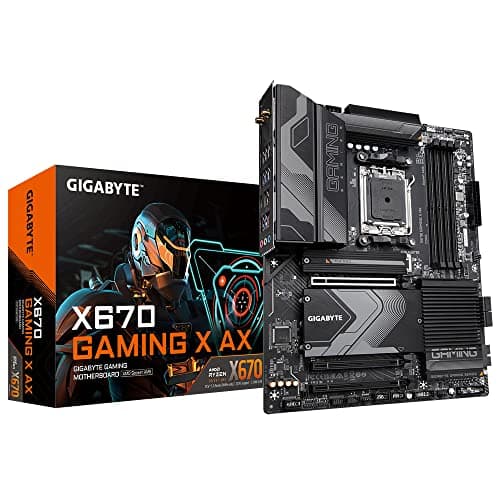

Gigabyte X670 GAMING X AX (rev. 1.0) DDR5 ATX main image

Product Information

Manufacturer

Gigabyte

Series

X670

Variant

GAMING X AX V1

Release Year

Unknown

Manufacturer Color

Unknown

UPC

None

EAN

4719331848965

Part Numbers

X670 GAMING X AX (rev. 1.0) X670 GAMING X AX

BuildCores ID

orhf2e6i4

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x2 1 x PCIe 4.0 x4

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wi-Fi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

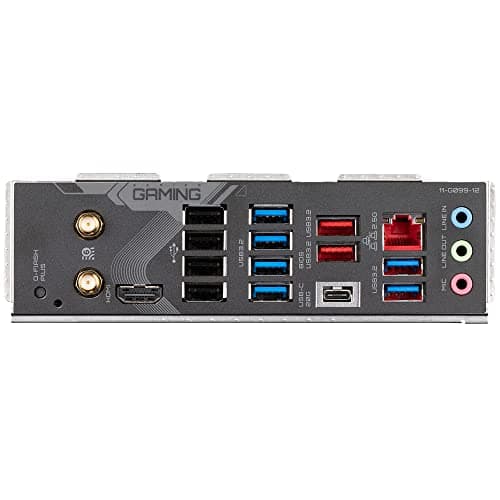

Back Panel Ports

1 x Q-Flash Plus button 1 x HDMI port 2 x SMA antenna connectors (2T2R) 6 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port (USB 3.2 Gen 2x2) 1 x RJ-45 port 3 x Audio jacks

See an issue?Report an issue on OpenDB
