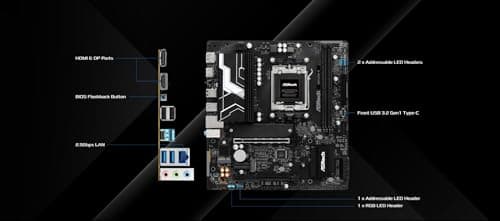

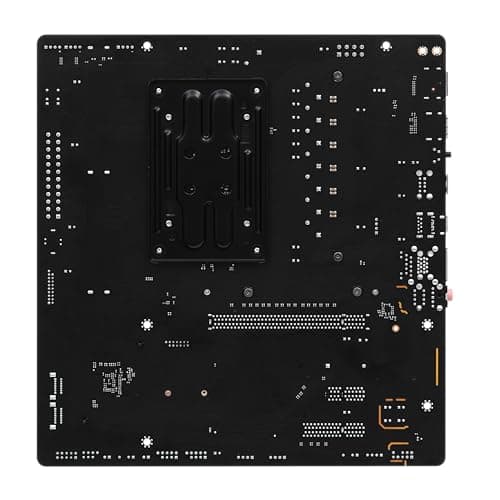

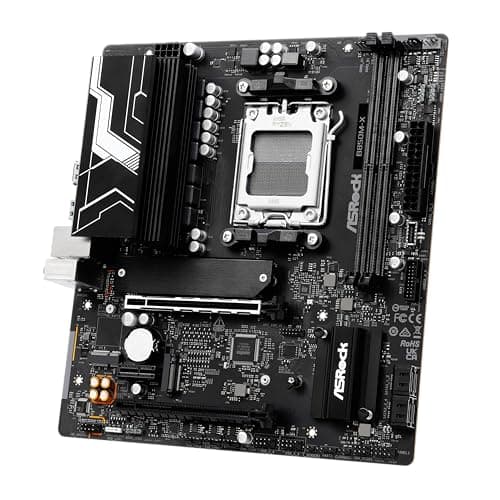

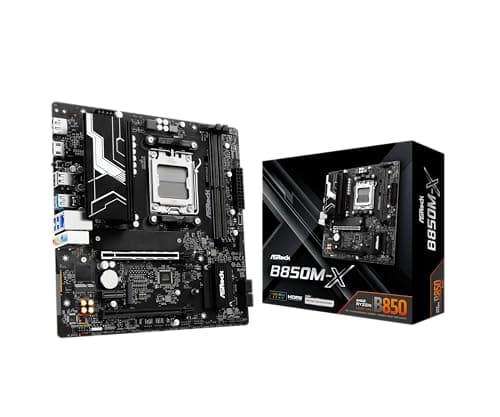

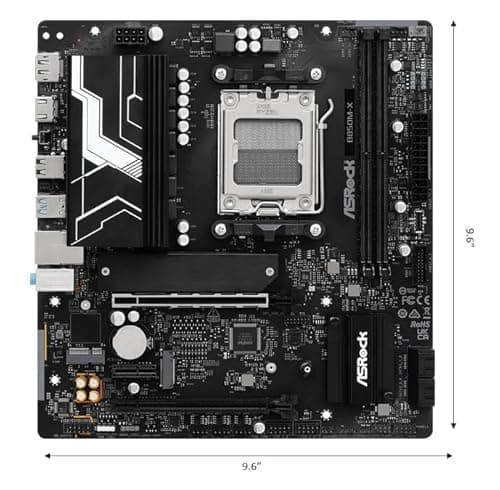

ASRock B850 M-X AM5 DDR5 Micro ATX image

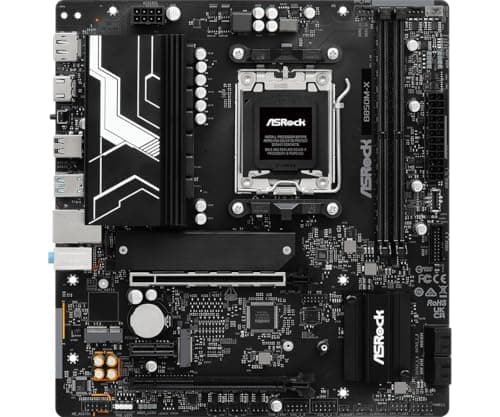

ASRock B850 M-X AM5 DDR5 Micro ATX main image

Product Information

Manufacturer

ASRock

Series

B850

Variant

M-X

Release Year

Unknown

Manufacturer Color

Unknown

UPC

None

EAN

4711581490109

Part Numbers

B850M-X 90-MXBR10-A0UAYZ 90-MXBR1-A0UAYZ 90-MXBR10-A0UAYAZ

BuildCores ID

ornltj431

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD B850

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK WHITE

PCIe Slots

2 x PCIe 4.0 x16 1 x PCIe 4.0 x1

M.2 Slots

M 2280 PCIe 4.0 x4 M 2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek Dragon RTL8125BG 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

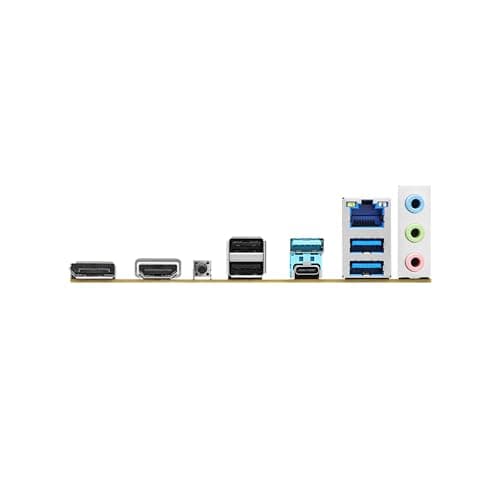

1 x 2.5 Gb/s Ports (Realtek Dragon RTL8125BG) 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen1 Type-C Port 3 x USB 3.2 Gen1 Type-A Ports 2 x USB 2.0 Ports 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone

See an issue?Report an issue on OpenDB
