General Specifications
Socket
AM4
Form Factor
Micro ATX
Chipset
AMD B550
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK GREY
Lighting
None
PCIe Slots
1 x PCIe 4.0 x16 2 x PCIe 3.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIE 4.0 x4 M 2242/2260/2280 PCIE 3.0 x4
SATA 6Gb/s
4
Onboard Ethernet
RealtekRTL8111H 1 Gb/s
WiFi
Wifi 6 Bluetooth 5.1
USB 2.0
1
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
2
Pump Headers
Unknown
CPU Optional Fan Headers
1

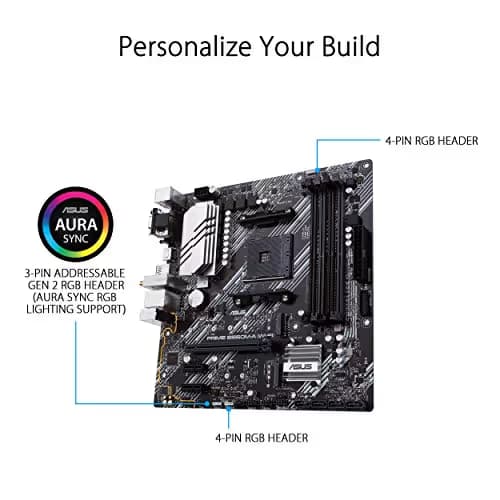

ARGB 5V Headers
1
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC887
Audio Channels
7.1

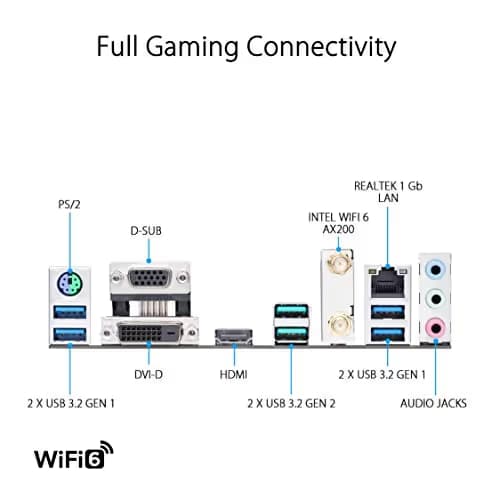

Back Panel Ports
1 x PS/2 keyboard/Mouse combo ports 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN(RJ45)ports 2 x USB 3.2 Gen2 (2xType-A) 4 x USB 3.2 Gen1 Type-A 3 x Audiojack (s)
Product Information
Manufacturer
ASUS
Series
PRIME
Variant
B550M-A WIFI
Release Year
2022
Manufacturer Color
Black/Silver
UPC
192876751817
EAN
0192876751817
Part Numbers
PRIME B550M-A (WI-FI)
BuildCores ID
pmo95tfhm
Motherboard

ASUS PRIME B550M-A WIFI

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading price history...
* Amazon pricing is not included in price history graphs.

Additional Features

AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs.Bluetooth v5.1

Ultrafast Connectivity: 1x PCIe 4. 0 x16 SafeSlot, WiFi 6 (802. 11ax), 1Gb LAN, dual M. 2 slots (NVMe SSD)—one with PCIe 4. 0 x4 connectivity, USB 3. 2 Gen 2 Type A , HDMI 2. 1 (4K@60HZ), D Sub & DVI

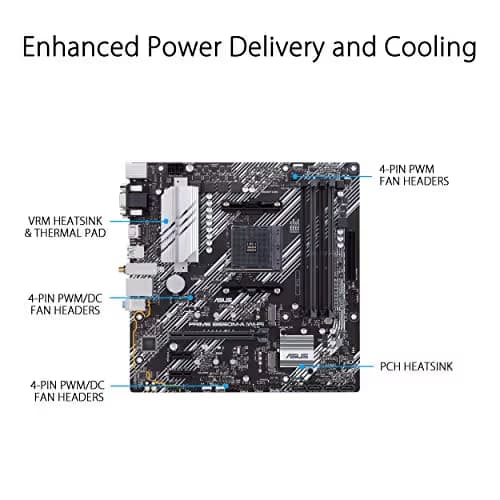

Comprehensive Cooling: VRM heatsink, chipset heatsink, hybrid fan headers and Fan Xpert 2 utility

5X Protection III: all round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless steel back I/O

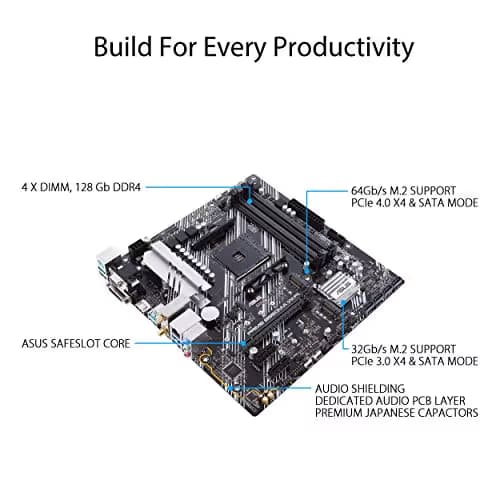

Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.

Additional Features

AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs.Bluetooth v5.1

Ultrafast Connectivity: 1x PCIe 4. 0 x16 SafeSlot, WiFi 6 (802. 11ax), 1Gb LAN, dual M. 2 slots (NVMe SSD)—one with PCIe 4. 0 x4 connectivity, USB 3. 2 Gen 2 Type A , HDMI 2. 1 (4K@60HZ), D Sub & DVI

Comprehensive Cooling: VRM heatsink, chipset heatsink, hybrid fan headers and Fan Xpert 2 utility

5X Protection III: all round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless steel back I/O

Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance.
