GIGABYTE B550 AORUS ELITE V2 AM4 DDR4 ATX image

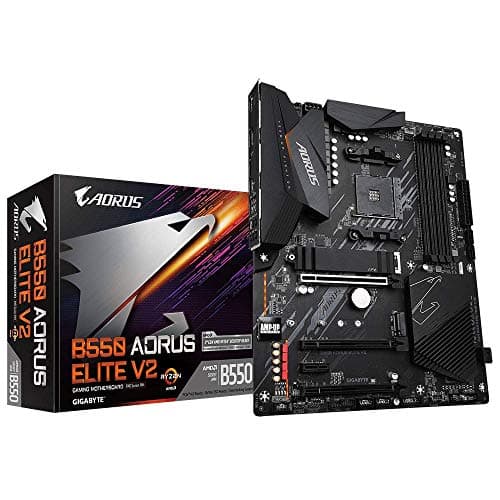

GIGABYTE B550 AORUS ELITE V2 AM4 DDR4 ATX main image

General Specifications

Socket

AM4

Form Factor

ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

Lighting

ARGB RGB

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x2 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4/x2 / SATA M 2242/2260/2280/22110 PCIe 3.0 x4/x2 / SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC1200 codec

Audio Channels

7.1

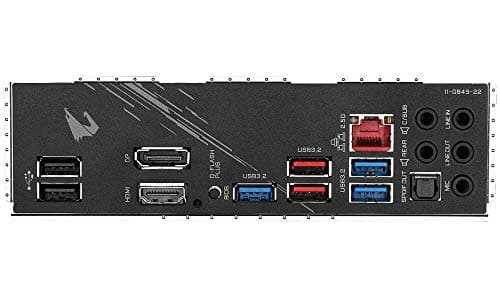

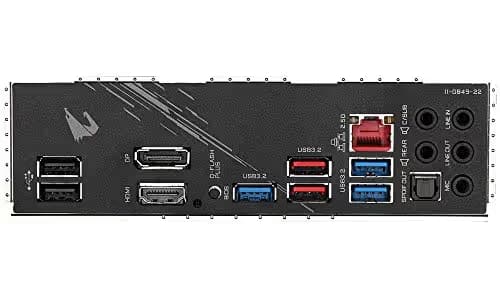

Back Panel Ports

1 x DisplayPort 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A*/USB 3.2 Gen 1 ports (red) 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

B550 ELITE V2

Release Year

2020

Manufacturer Color

Black

UPC

889523023945

EAN

0889523023945 4719331809898

Part Numbers

B550 AORUS ELITE V2 GMB55AEL2-00-G GA-B550-AORUS-ELITE-V2 B550

BuildCores ID

qaf8i9twm
