LoadingProduct Information
Manufacturer
ASUS
Series
ROG CROSSHAIR
Variant
X870E DARK HERO
Release Year
2026
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
ROG CROSSHAIR X870E DARK HERO
BuildCores ID
qovfisrsx
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X870E
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
RGB
Lighting
Unknown
PCIe Slots
2 x PCIe 5.0 x16
M.2 Slots
M 2242/2260/2280/22110 PCIe 5.0 x4
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
M 2230 PCIe 4.0 x2
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 10 Gb/s
Realtek 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
3
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
2
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
2
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4082
Audio Channels
7.1
Back Panel Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C)
9 x USB 10Gbps ports (6 x Type-A + 3 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 10Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Motherboard
3D

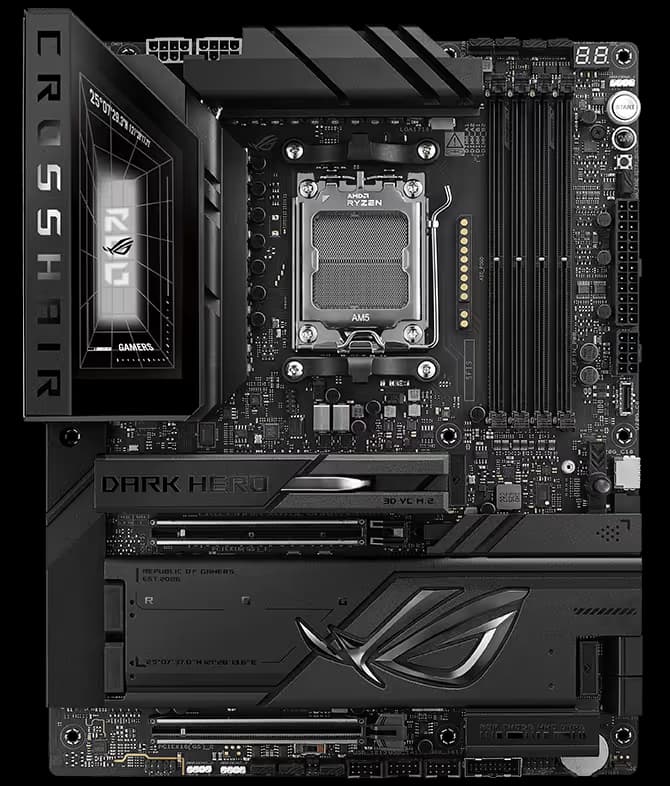

ASUS ROG CROSSHAIR X870E DARK HERO
