General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD B850
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
2 x PCIe 3.0 x1
M.2 Slots
M 2260/2280 PCIe 5.0 x4
M 2280/22110 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x2
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 8126VB 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC897
Audio Channels
7.1

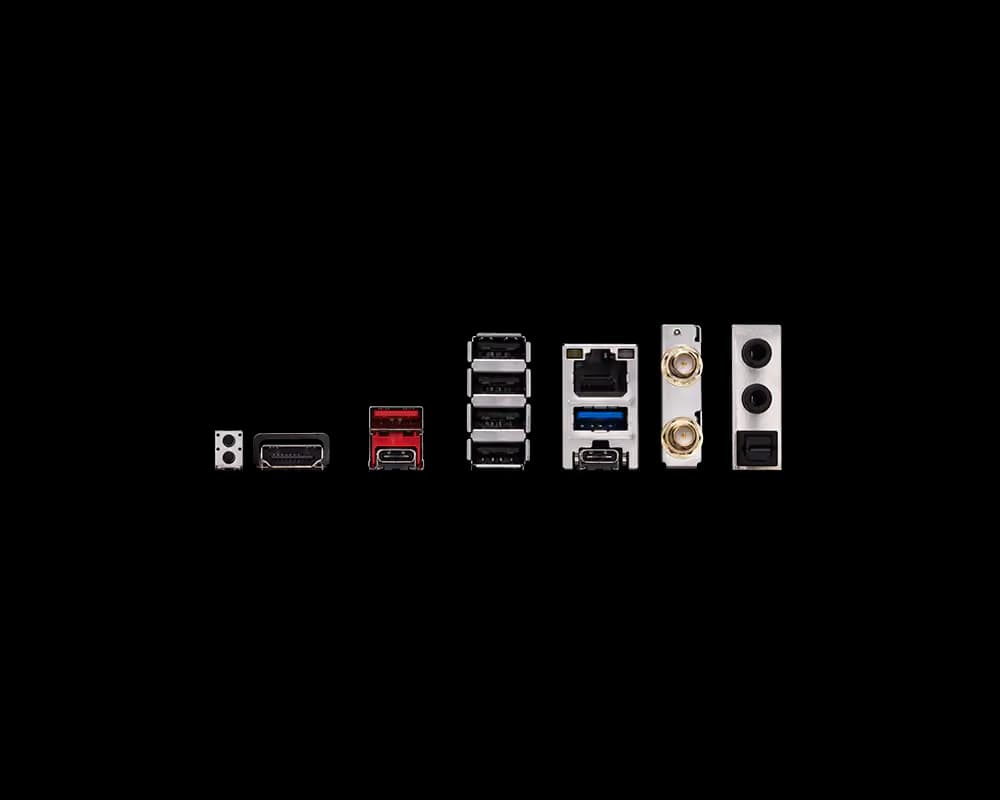

Back Panel Ports
1x Clear CMOS button
1x Flash BIOS button
1x HDMI port
1x USB 10Gbps Type-A port
4x USB 2.0 ports
1x 5Gbps LAN (RJ45) jack
1x USB 5Gbps Type-A port
2x USB 10Gbps Type-C ports
2x Wi-Fi Antenna connectors
2x audio jacks
1x Optical S/PDIF Out connector
Product Information
Manufacturer
MSI
Series
PRO
Variant
B850-VC WIFI
Release Year
2024
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
PRO B850-VC WIFI
BuildCores ID
qptzspjtm

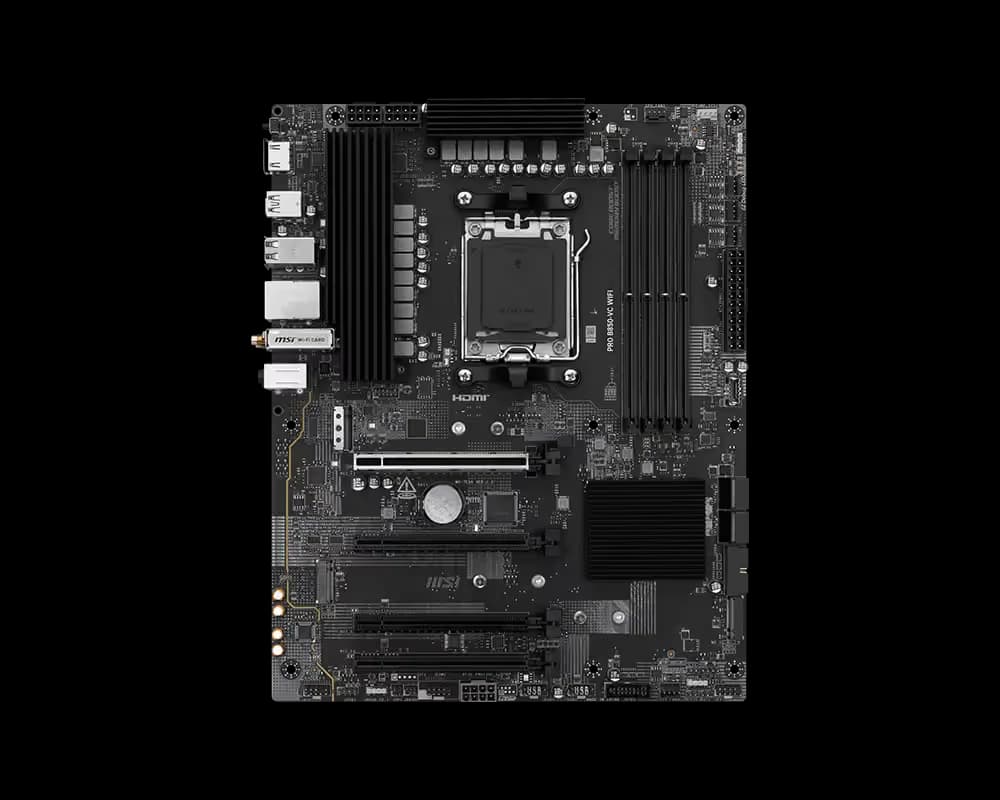

Motherboard
MSI B850 PRO VC WIFI AM5 DDR5 ATX
SocketAM5
Form FactorATX
ChipsetAMD B850
Loading...
LoadingLoading...
LoadingNo retailers available yet
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
