General Specifications
Socket
AM5
Form Factor
EATX
Chipset
AMD X870
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
2
Colors
WHITE
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x8
M.2 Slots
M 25110/22110/2580/2280 PCIe 5.0 x4
M 22110/2280 PCIe 4.0 x2
M 22110/2280 PCIe 4.0 x2
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
3
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
2
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC1220
Audio Channels
7.1

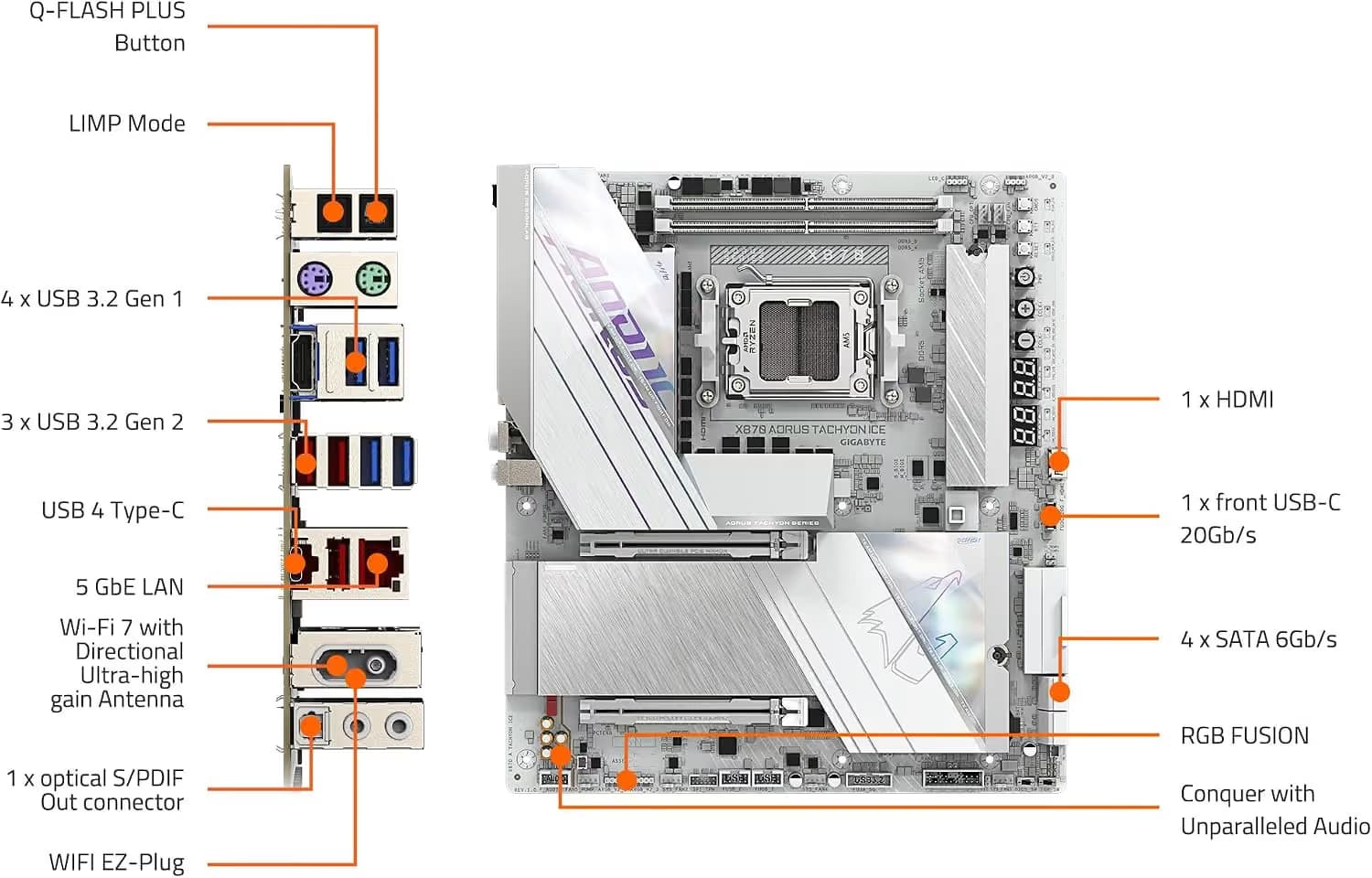

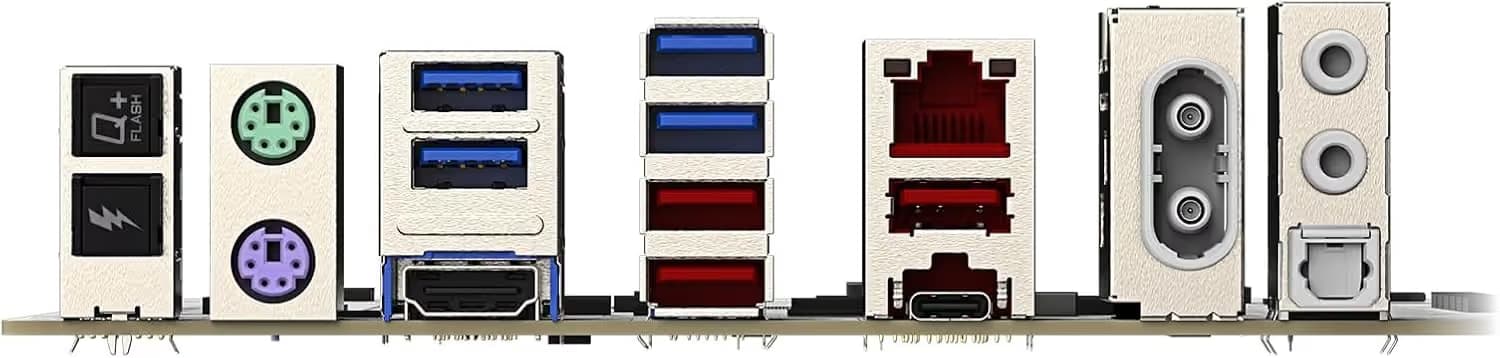

Back Panel Ports
1 x Q-Flash Plus button
1 x OC Ignition button
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
3 x USB 3.2 Gen 2 Type-A ports
1 x USB4 USB Type-C port
1 x RJ-45 port
2 x antenna connectors
2 x audio jacks
1 x optical S/PDIF Out connector
Display Outputs
Unknown
Product Information
Manufacturer
Gigabyte
Series
AORUS
Variant
X870 TACHYON ICE
Release Year
2025
Manufacturer Color
White
UPC
889523051702
EAN
0889523051702
Part Numbers
X870 AORUS TACHYON ICE
X870 A TACHYON ICE
BuildCores ID
qsucpzi0m

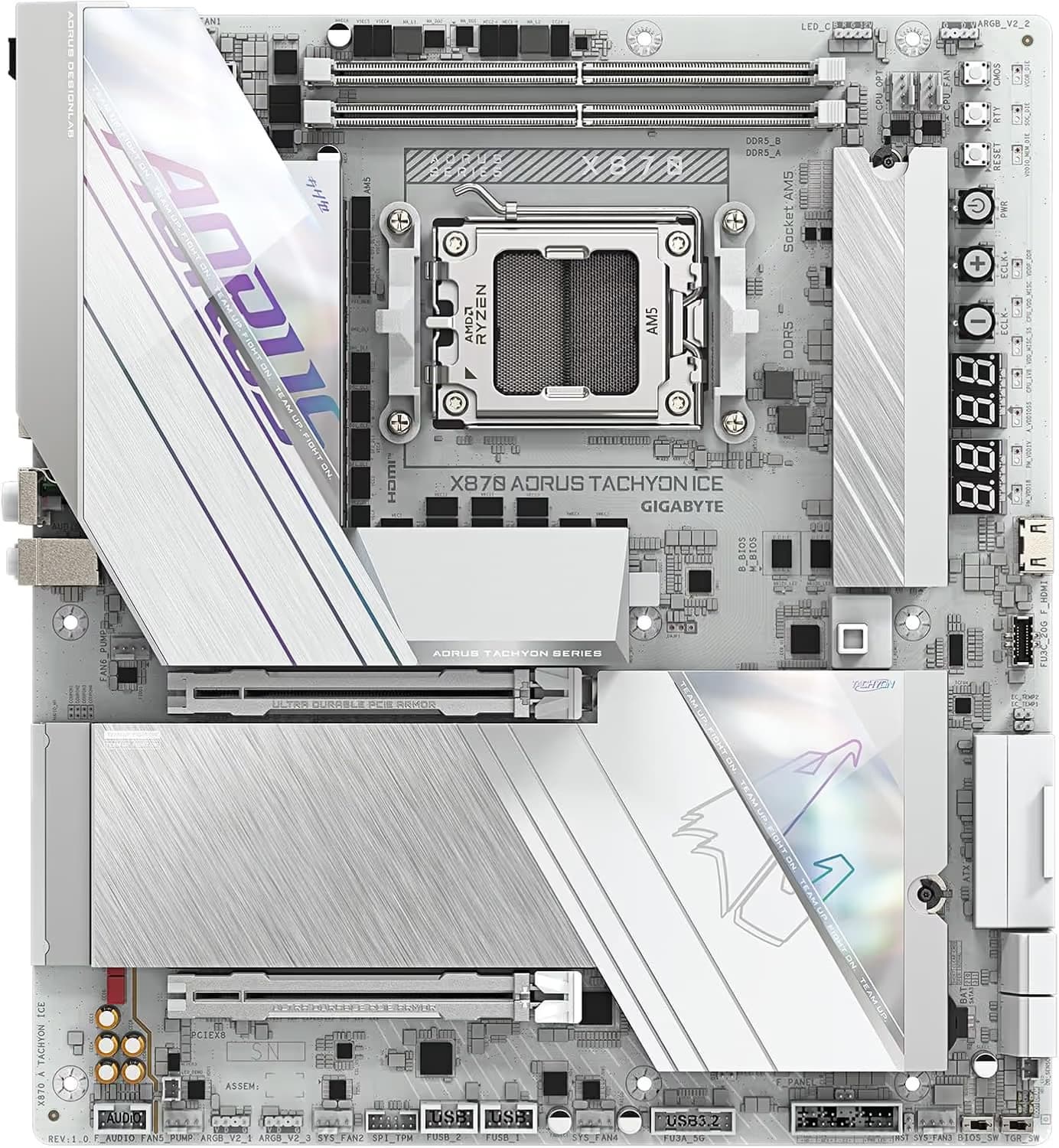

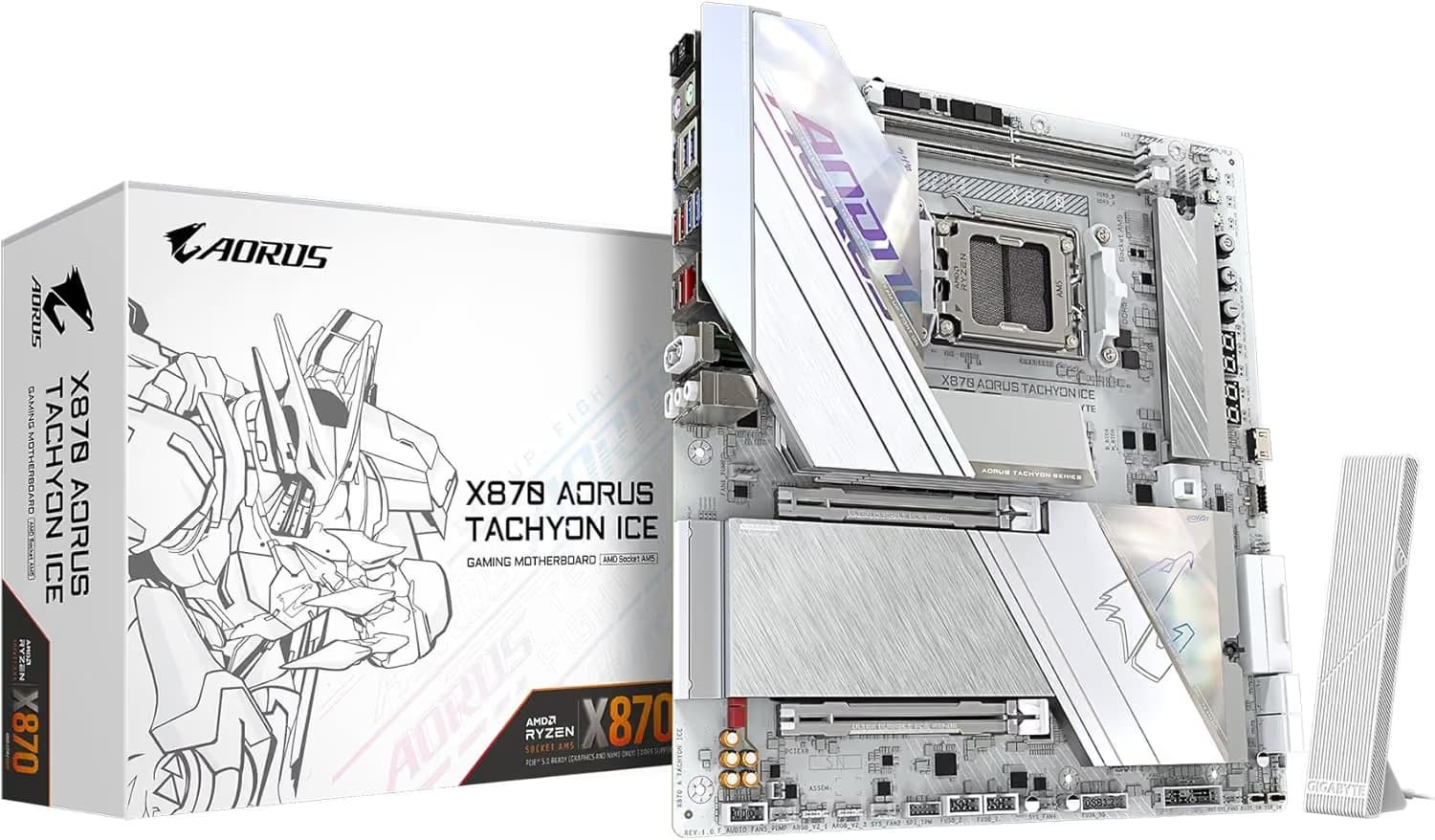

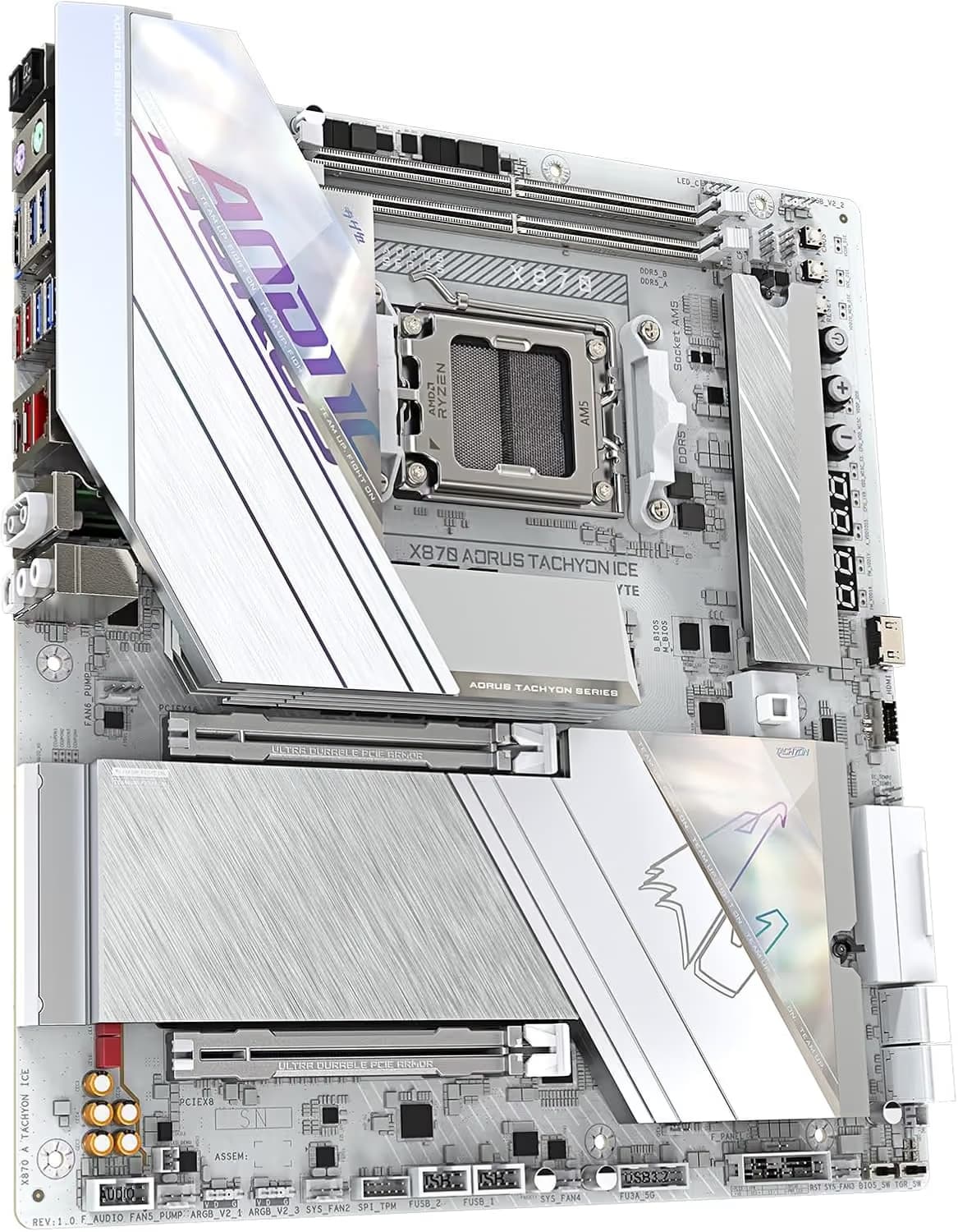

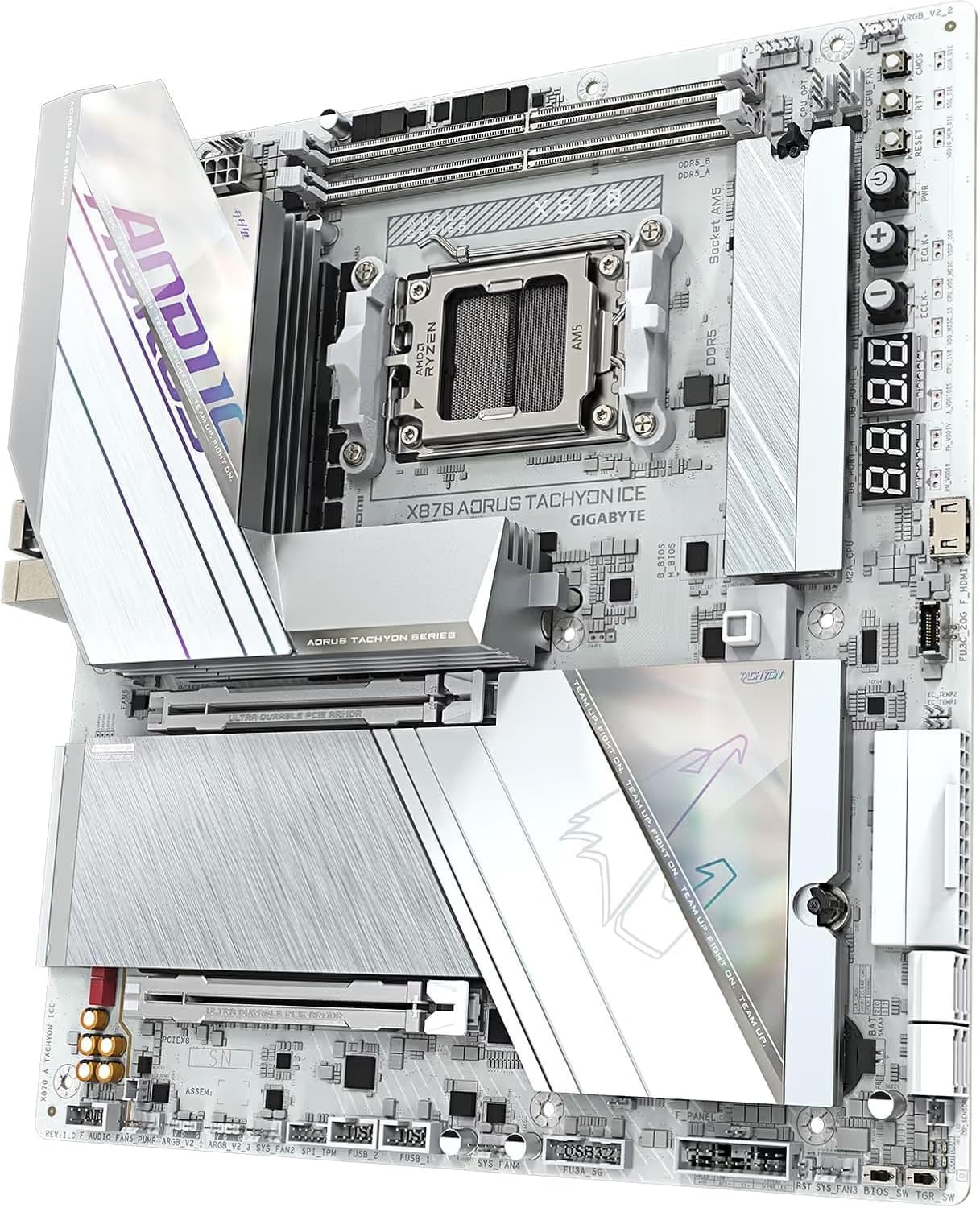

Motherboard
Gigabyte X870 AORUS TACHYON ICE AM5 DDR5 EATX
SocketAM5
Form FactorEATX
ChipsetAMD X870
Best Price
$429.99
via  | — | $429.99 |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | In stock | $429.99 via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
| — | — | In stock | $429.99 via Amazon |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
