General Specifications

Socket

LGA 1700

Form Factor

EATX

Chipset

Intel Z790

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

None

Lighting

Unknown

PCIe Slots

1 x PCIe 5.0 x16 4 x PCIe 4.0 x4

M.2 Slots

M 2280 PCIe 5.0 x4/x2 M 22110 PCIe 4.0 x4/x2 M 22110 PCIe 4.0 x4/x2 M 2280 PCIe 4.0 x4/ x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Marvell AQtion AQC107 10 Gb/s Intel 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

ESS ES9280AC DAC + 2 ESS ES9080

Audio Channels

2.0

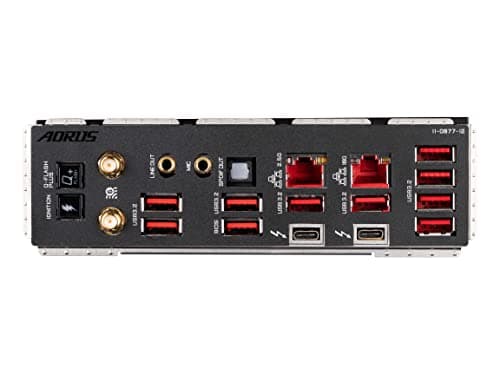

Back Panel Ports

Q-Flash Plus button OC Ignition button 2 SMA antenna connectors (2T2R) 2 Thunderbolt 4 connectors (USB Type-C ports) 10 USB 3.2 Gen 2 Type-A ports 2 RJ-45 ports 1 optical S/PDIF Out connector 2 audio jacks

Product Information

Manufacturer

Gigabyte

Series

AORUS XTREME

Variant

rev. 1.0

Release Year

2022

Manufacturer Color

Unknown

UPC

889523034484

EAN

0889523034484

Part Numbers

Z790 AORUS XTREME

BuildCores ID

rosxrdrfz

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte Z790 AORUS XTREME

SocketLGA 1700

Form FactorEATX

ChipsetIntel Z790

No retailers available yet

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Additional Features

• Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors

• DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 4*SMD DIMMs

• Commanding Power Design: 20+1+2 Phases Direct VRM Solution

• Cutting-Edge Thermal Design: M.2 Thermal Guard Xtreme II, Fins-Array III, Thermal Guards, Ultra Durable Memory Armor

• Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, Intel Thunderbolt 4, USB 3.2 Gen 2x2 Type-C

Additional Features

• Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors

• DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5, 4*SMD DIMMs

• Commanding Power Design: 20+1+2 Phases Direct VRM Solution

• Cutting-Edge Thermal Design: M.2 Thermal Guard Xtreme II, Fins-Array III, Thermal Guards, Ultra Durable Memory Armor

• Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, Intel Thunderbolt 4, USB 3.2 Gen 2x2 Type-C
