ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image

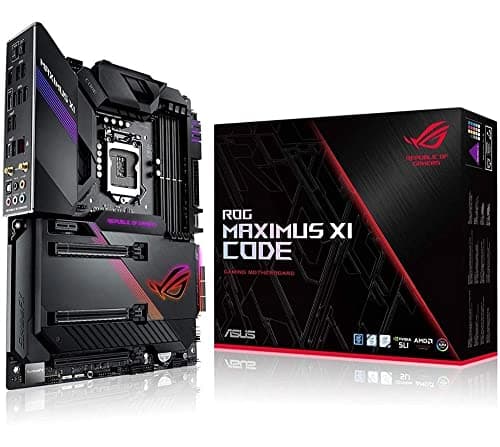

ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard main image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard image
Product Information
Manufacturer
ASUS
Series
ROG Maximus XI
Variant
Code
Release Year
2018
Manufacturer Color
Unknown
UPC
192876133804
EAN
0192876133804
Part Numbers
ROG Maximus XI Code
BuildCores ID
rrdovti47
General Specifications
Socket
LGA 1151
Form Factor
ATX
Chipset
Intel Z390
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1
M.2 Slots
M 2242-22110 PCIe 3.0 x4 SATA M 2242-2280 PCIe 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220
Audio Channels
7.1

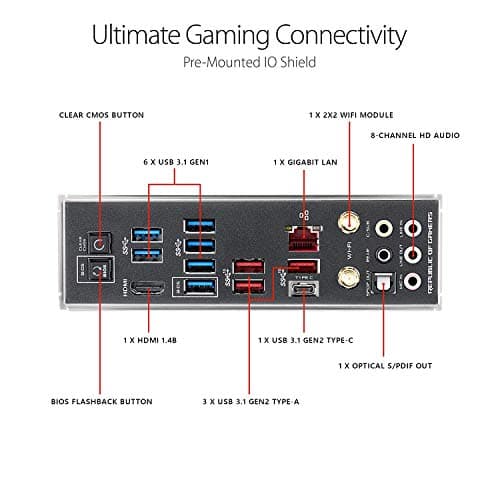

Back Panel Ports
USB-C (USB 3.1/3.2 Gen 2) USB-A (USB 3.1/3.2 Gen 2) USB-A (USB 3.0 / 3.1/3.2 Gen 1) HDMI 1.4b S/PDIF 5x 1/8" / 3.5 mm
Motherboard

ASUS Republic of Gamers Maximus XI Code LGA 1151 ATX Motherboard

Loading...
Loading
Loading...
Loading
Amazon
FREE s/h

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
FREE s/h
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
FREE s/h
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

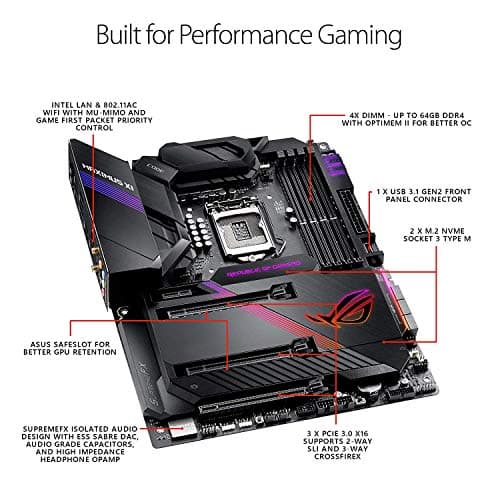

Designed for 9th,8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2,802.11ac Wi Fi and ASUS Opti MEM II for better DRAM overclocking stability

Revamped 5 Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while Fan Xpert 4 delivers dynamic system cooling

Dedicated water cooling headers and built in Cross Chill EK III water block allow monitoring of water temperature and flow without a standalone controller

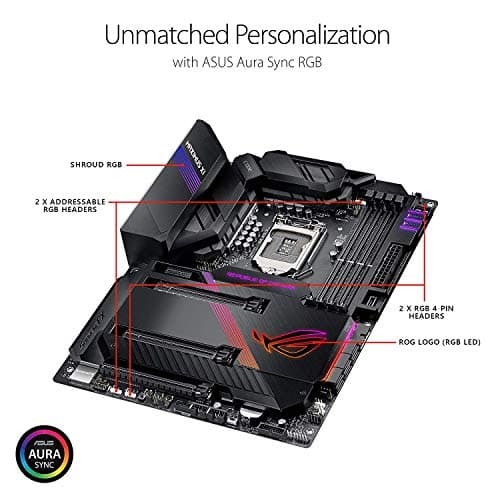

Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever expanding ecosystem of Aura Sync enabled products

Pre mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality; 10K Black Metallic Capacitors

Additional Features

Designed for 9th,8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2,802.11ac Wi Fi and ASUS Opti MEM II for better DRAM overclocking stability

Revamped 5 Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while Fan Xpert 4 delivers dynamic system cooling

Dedicated water cooling headers and built in Cross Chill EK III water block allow monitoring of water temperature and flow without a standalone controller

Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever expanding ecosystem of Aura Sync enabled products

Pre mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality; 10K Black Metallic Capacitors

Product Information
Manufacturer
ASUS
Series
ROG Maximus XI
Variant
Code
Release Year
2018
Manufacturer Color
Unknown
UPC
192876133804
EAN
0192876133804
Part Numbers
ROG Maximus XI Code
BuildCores ID
rrdovti47
General Specifications
Socket
LGA 1151
Form Factor
ATX
Chipset
Intel Z390
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1
M.2 Slots
M 2242-22110 PCIe 3.0 x4 SATA M 2242-2280 PCIe 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220
Audio Channels
7.1
Back Panel Ports
USB-C (USB 3.1/3.2 Gen 2) USB-A (USB 3.1/3.2 Gen 2) USB-A (USB 3.0 / 3.1/3.2 Gen 1) HDMI 1.4b S/PDIF 5x 1/8" / 3.5 mm
