Asus TUF GAMING Z790-PLUS WIFI main image

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel Z790

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

Lighting

ARGB RGB

PCIe Slots

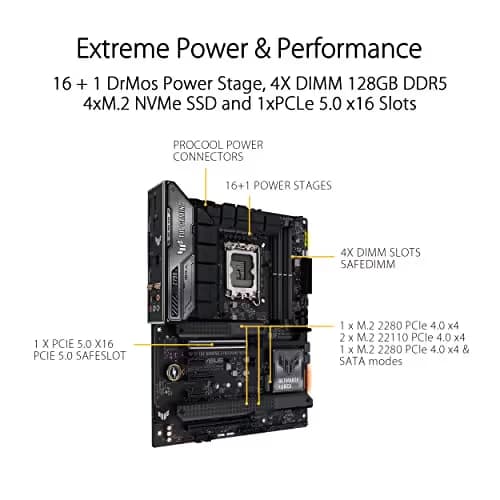

1 x PCIe 5.0 x16 2 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4/SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

WiFi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek S1220A

Audio Channels

7.1

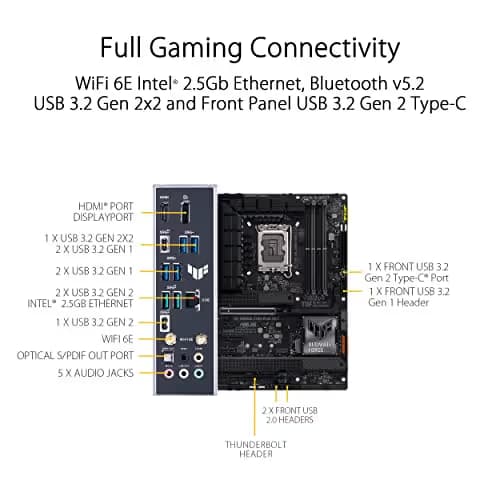

Back Panel Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Product Information

Manufacturer

ASUS

Series

TUF GAMING

Variant

Z790-PLUS WIFI

Release Year

2022

Manufacturer Color

Black

UPC

197105014503

EAN

4711387014509 0197105014503

Part Numbers

TUF GAMING Z790-PLUS WIFI 90MB1D80-M0EAY0 90MB1D80-M0AAY0 90MB1D80-M1EAY0 TUF GAMING Z790-PLUS WIFI 6E

BuildCores ID

s8amilnq6

See an issue?Report an issue on OpenDB

Motherboard

Asus TUF GAMING Z790-PLUS WIFI

Name: Asus TUF GAMING Z790-PLUS WIFI
Brand: ASUS
SKU: s8amilnq6

SocketLGA 1700

Form FactorATX

ChipsetIntel Z790
