General Specifications
Socket
LGA 1851
Form Factor

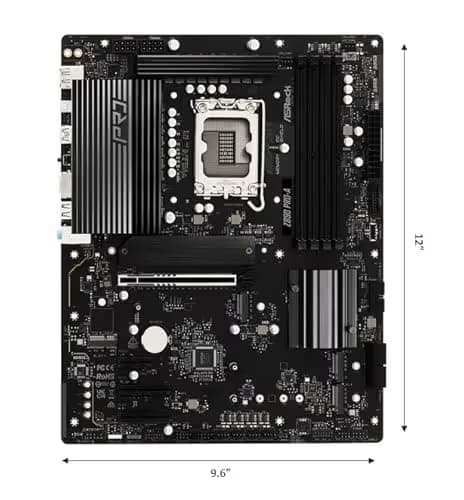

ATX
Chipset
Intel Z890
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x1
2 x PCIe 4.0 x4
M.2 Slots
M 2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2230 / 2242 / 2260 / 2280 PCIe 4.0 x4 / SATA
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek Dragon RTL8125BG 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
5
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
2 x Antenna Mounting Points
1 x HDMI Port
1 x DisplayPort 1.4
1 x Thunderbolt™ 4/USB4 Type-C Port (40 Gb/s)
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Display Outputs
Connector: hdmi
Count: 1
Version Label: 2.1
Video Signal: hdmi
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 3840 × 2160 px
Refresh Rate: 120
Claim: maximum_at_resolution
Hdr: supported
Conditions: Up to 4K at 120Hz; requires a compatible CPU with integrated graphics
Connector: displayport
Count: 1
Version Label: 1.4
Video Signal: displayport
Transport: native
Graphics Route: integrated
Mode Claims: Resolution: 7680 × 4320 px
Refresh Rate: 60
Claim: maximum_at_resolution
Dsc: required
Conditions: Up to 8K at 60Hz or 5K at 120Hz; DSC compression supported
Connector: usb_c
Count: 1
Version Label: Thunderbolt 4
Video Signal: displayport
Transport: thunderbolt
Connector Label: USB4 Type-C
Graphics Route: integrated
Mode Claims: Resolution: 7680 × 4320 px
Refresh Rate: 60
Claim: maximum_at_resolution
Conditions: Up to 8K at 60Hz or 5K at 120Hz; video output requires a CPU with integrated graphics
Product Information
Manufacturer
ASRock
Series
Pro
Variant
Z890-A
Release Year
2024
Manufacturer Color
Black
UPC
None
EAN
4710483947537
Part Numbers
Z890 Pro-A
90-MXBP50-A0UAYZ
Z890 PRO-A
BuildCores ID
sbzou6adz
Motherboard
ASRock Z890 Pro-A
SocketLGA 1851
Form FactorATX
ChipsetIntel Z890
Best Price
$189.99
viaLoading...
— | $189.99 | |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
— | — | In stock | $189.99 via Amazon |
MERCHANT | SHIPPING | PROMO | AVAILABILITY | TOTAL |
— | — | In stock | $189.99 via Amazon |
* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
