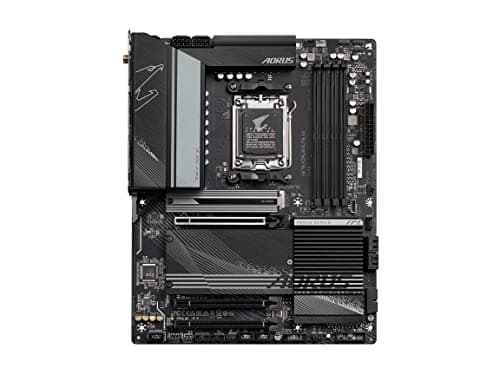

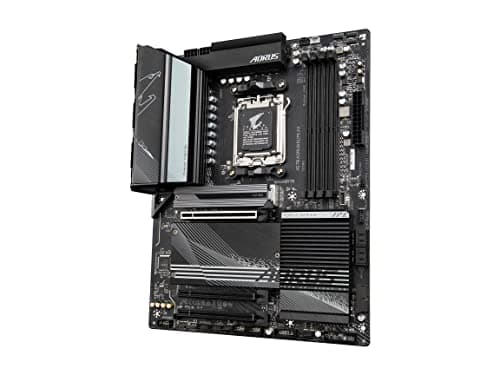

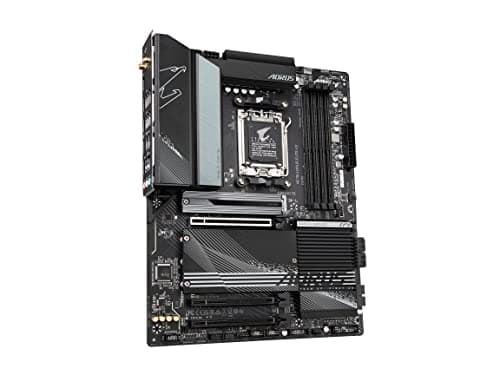

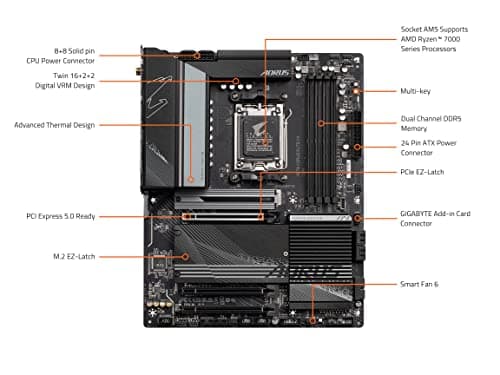

Gigabyte X670 AORUS ELITE AX DDR5 ATX image

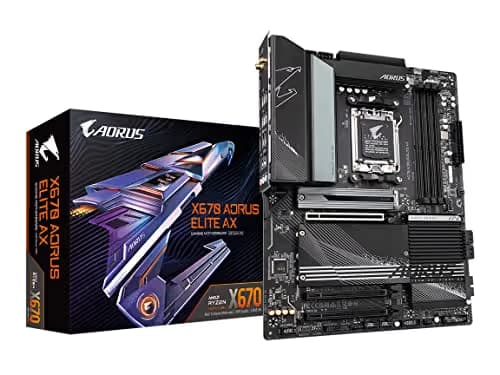

Gigabyte X670 AORUS ELITE AX DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

ARGB RGB

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x2

M.2 Slots

M 25110/22110/2580/2280 PCIe 5.0 x4 M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4 M 22110/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

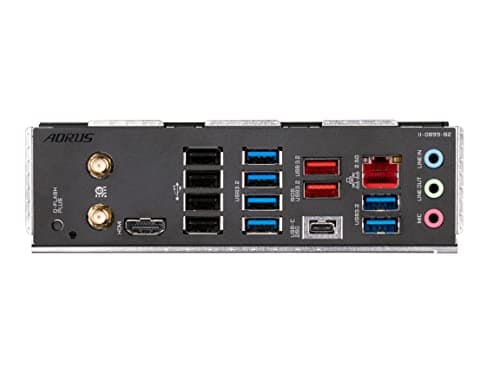

Back Panel Ports

1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 6 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port with USB 3.2 Gen 2x2 support 1 x RJ-45 port 3 x audio jacks

Product Information

Manufacturer

Gigabyte

Series

AORUS

Variant

X670 ELITE AX

Release Year

2023

Manufacturer Color

Black

UPC

889523033500

EAN

0889523033500

Part Numbers

X670 AORUS ELITE AX (rev. 1.0) X670 AORUS ELITE AX GA X670 AORUS ELITE AX

BuildCores ID

sdrefgy47
