Product Information
Manufacturer
ASUS
Series
ROG STRIX
Variant
B360-F GAMING
Release Year
2018
Manufacturer Color
Unknown
UPC
889349906200
EAN
0889349906200
Part Numbers
STRIX B360-F GAMING
BuildCores ID
sn3c1ee4n
General Specifications
Socket
LGA 1151
Form Factor
ATX
Chipset
Intel B360
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 3.0 x4 4 x PCIe 3.0 x1
M.2 Slots
M 2280 SATA & PCIe 3.0 x 2 M 2280 PCIe 3.0 x 4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219-V
WiFi
Unknown
USB 2.0
4
USB 3.2 Gen 1
2
USB 3.2 Gen 2
3
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220A
Audio Channels
7.1

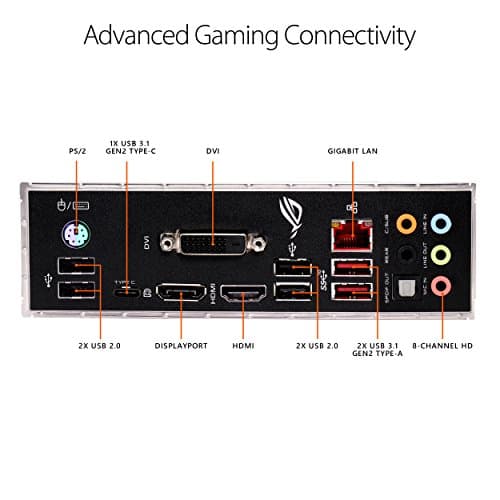

Back Panel Ports
PS/2 keyboard/mouse combo DisplayPort HDMI DVI-D USB 3.1 Gen 2 (2 x Type-A + 1 x Type-C) Intel® I219-V Gb LAN Port
Motherboard

ROG STRIX B360-F GAMING

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility

ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies

Fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount

Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality

Additional Features

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with dual M.2 and Intel Optane Memory compatibility

ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies

Fan Xpert 4 with GPU temperature sensing allows for dynamic fan calibration and optimized system cooling while gaming

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and a 3D-printing friendly mount

Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality
