General Specifications
Socket
LGA 1700
Form Factor
EATX
Chipset
Intel Z690
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
ARGB
RGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 5.0 x8
1 x PCIe 3.0 x4
M.2 Slots
M 2260/2280/22110 PCIe 4.0 x4
M 2260/2280/22110 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
None
WiFi
Wifi 6E Bluetooth 5.3
USB 2.0
1
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
2
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
ESS ES9280AC DAC + 2 ESS ES9080
Audio Channels
7.1
Back Panel Ports
1 x Q-Flash Plus button
1 x OC Ignition button
1 x Clear CMOS button
2 x SMA antenna connectors
2 x Thunderbolt 4 connectors
10 x USB 3.2 Gen 2 Type-A ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
2 x audio jacks
Product Information
Manufacturer
Gigabyte
Series
AORUS
Variant
Unknown
Release Year
2021
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
sp72yz6mn
Motherboard

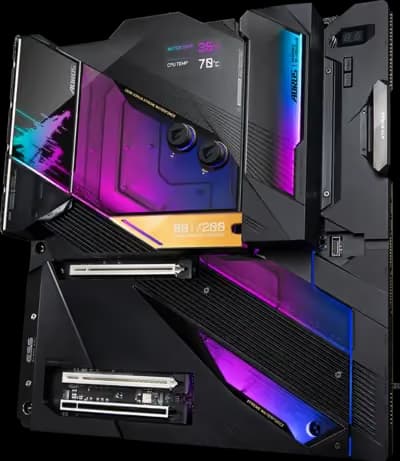

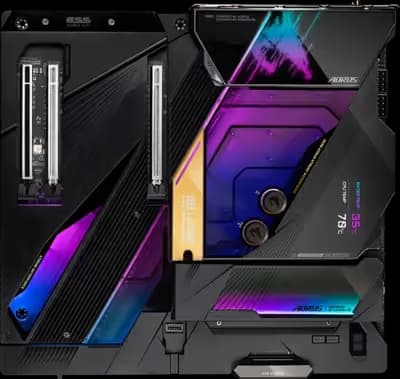

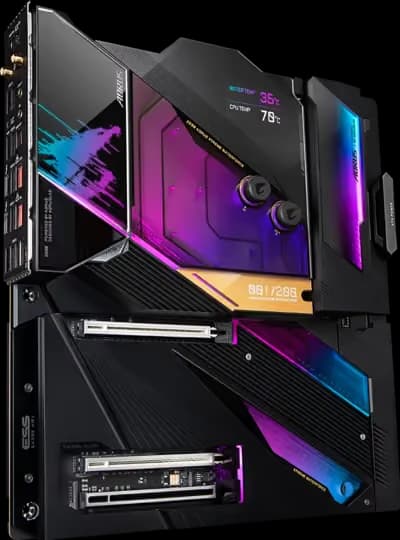

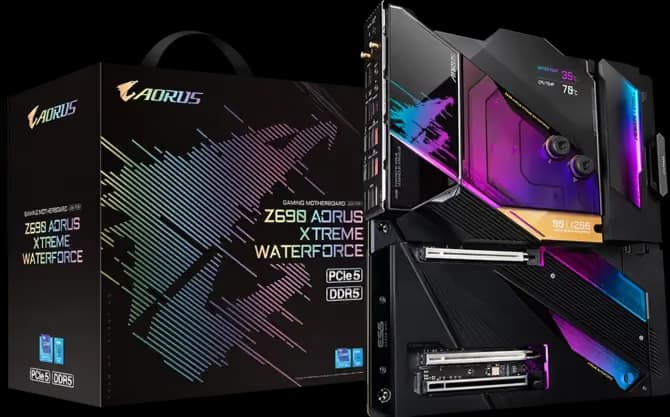

Z690 AORUS XTREME WATERFORCE (Rev. 1.0)
SocketLGA 1700
Form FactorEATX
ChipsetIntel Z690
