ASUS ROG Strix Z390-I Gaming LGA1151 image

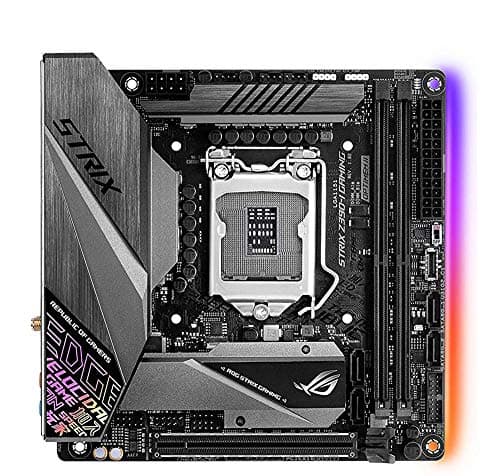

ASUS ROG Strix Z390-I Gaming LGA1151 main image
ASUS ROG Strix Z390-I Gaming LGA1151 image
Product Information
Manufacturer
ASUS
Series
ROG Strix
Variant
Z390-I Gaming
Release Year
2018
Manufacturer Color
Unknown
UPC
192876052419
EAN
0192876052419
Part Numbers
ROG Strix Z390-I Gaming
BuildCores ID
t3qvvzd94
General Specifications
Socket
LGA 1151
Form Factor
Mini-ITX
Chipset
Intel Z390
Max Memory
32 GB
Memory Type
DDR4
Memory Slots
2
Colors
None
PCIe Slots
1 x PCIe 3.0 x16
M.2 Slots
M 2242/2260/2280 PCIe 3.0 x4 M 2242/2260/2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I219-V 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
2
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Audio Chipset
ROG SupremeFX S1220A
Audio Channels
7.1
Back Panel Ports
HDMI 2.0a DisplayPort 1.2 USB 3.1 Gen 1 Type-A USB 3.1 Gen 2 Type-A USB 3.1 Gen 1 Type-C USB 2.0 Optical S/PDIF Out Audio Ports ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0.)
Motherboard

ASUS ROG Strix Z390-I Gaming LGA1151

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, 802.11ac Wi-Fi and ASUS Opti-MEM II for better DRAM overclocking stability

Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while Fan Xpert 4 delivers dynamic system cooling

Gamer's Guardian ensures longevity with Safe Slot, ESD Guards and DRAM Overcurrent Protection while M.2 double-decker heatsink shrouds the main M.2 slot and provides shared cooling for the M.2 and PCH

Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

Supports HDMI 2.0 with max. resolution 4096 x 2160 @ / 60 Hz; Operating System: Windows 10 64-bit

Additional Features

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, 802.11ac Wi-Fi and ASUS Opti-MEM II for better DRAM overclocking stability

Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while Fan Xpert 4 delivers dynamic system cooling

Gamer's Guardian ensures longevity with Safe Slot, ESD Guards and DRAM Overcurrent Protection while M.2 double-decker heatsink shrouds the main M.2 slot and provides shared cooling for the M.2 and PCH

Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

Supports HDMI 2.0 with max. resolution 4096 x 2160 @ / 60 Hz; Operating System: Windows 10 64-bit
