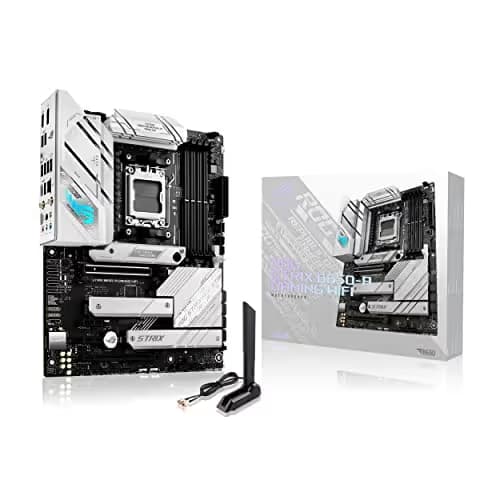

Asus ROG STRIX B650-A GAMING WIFI main image

Product Information

Manufacturer

ASUS

Series

ROG

Variant

STRIX B650-A GAMING WIFI

Release Year

2022

Manufacturer Color

Black/White

UPC

195553917766

EAN

2220008371270 4711081917762 0195553917766

Part Numbers

ROG STRIX B650-A GAMING WIFI 90MB1BP0-M0AAY0 90MB1BP0-M0EAY0

BuildCores ID

t8k1769vy

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY RGB

Lighting

ARGB

PCIe Slots

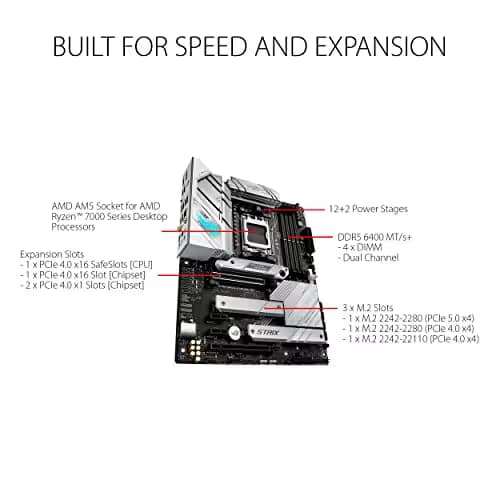

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 2 x PCIe 4.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wi-Fi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

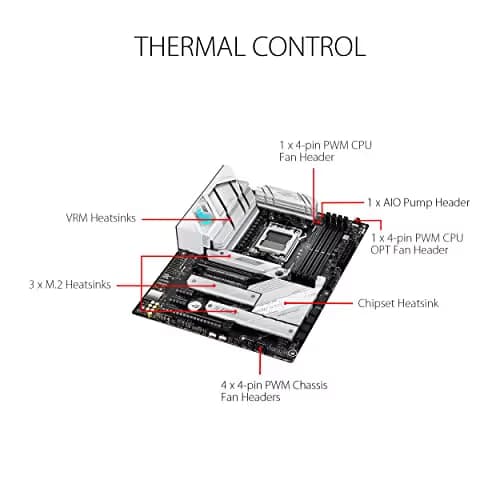

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

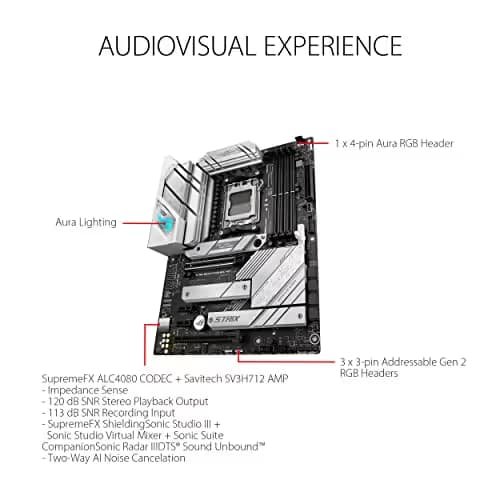

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

Back Panel Ports

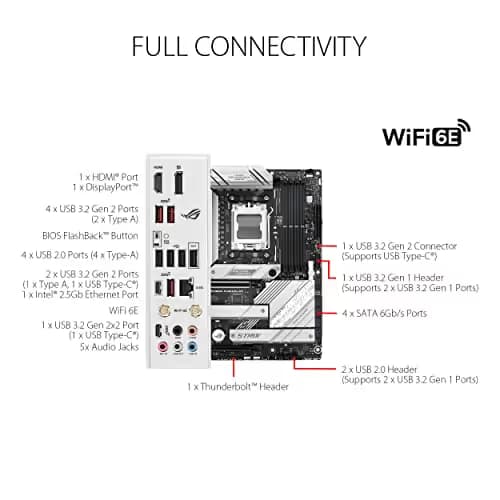

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
