Product Information

Manufacturer

ASUS

Series

PRIME

Variant

B760-PLUS D4-CSM

Release Year

2023

Manufacturer Color

Black/Silver

UPC

None

EAN

None

Part Numbers

prime-b760-plus-d4-csm

BuildCores ID

t8wnh9ukk

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel B760

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY

Lighting

Unknown

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

Realtek 2.5Gb Ethernet 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

Unknown

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

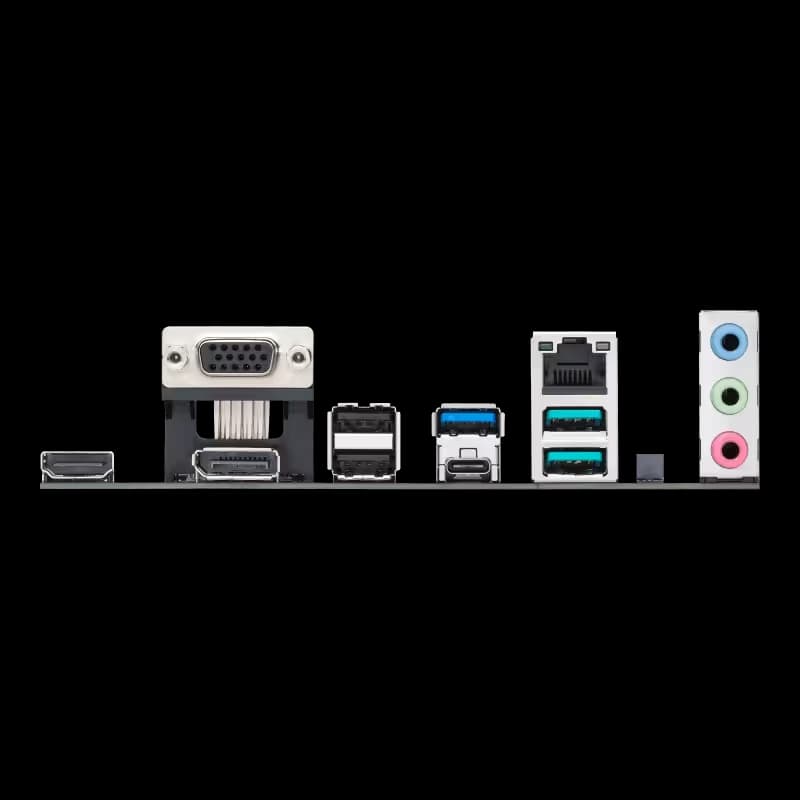

Back Panel Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks

See an issue?Report an issue on OpenDB

Motherboard

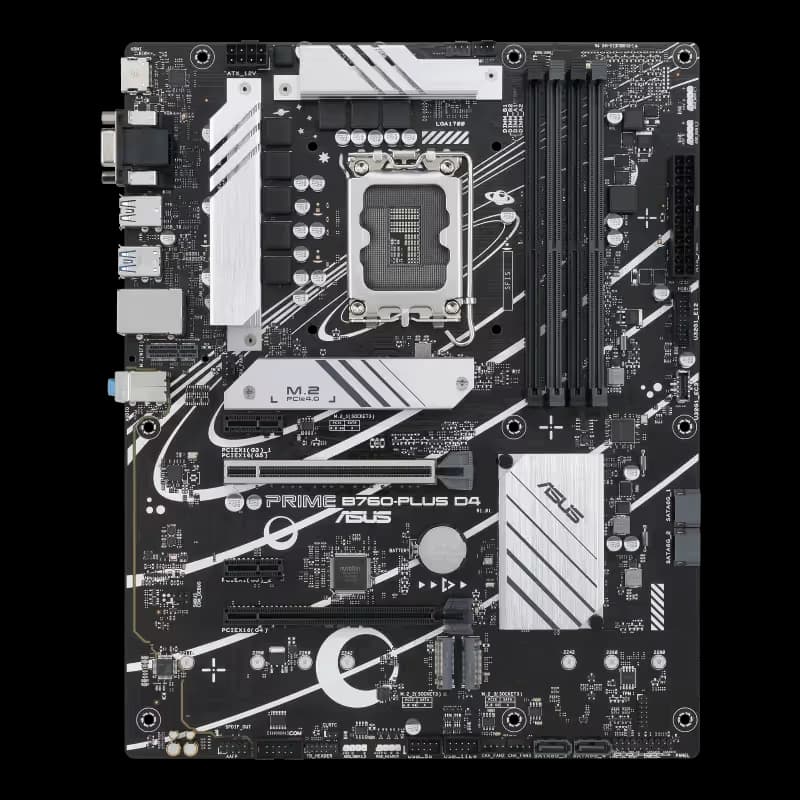

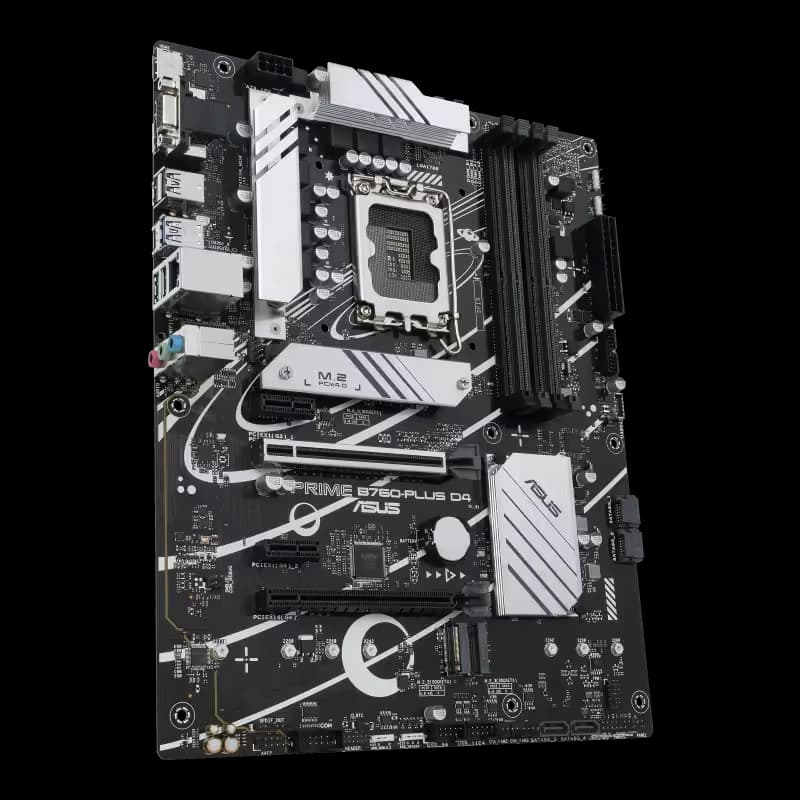

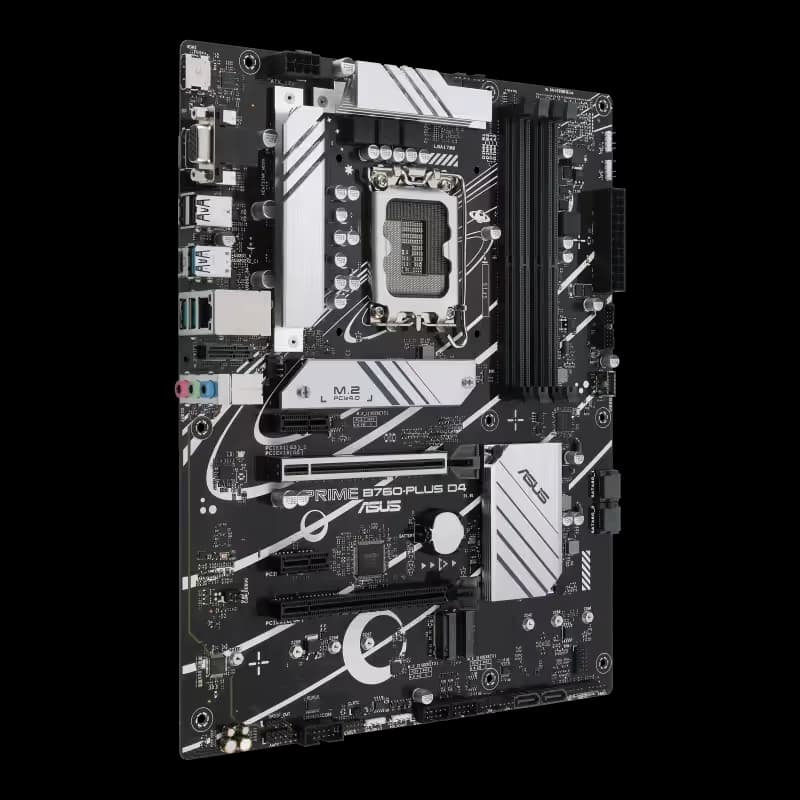

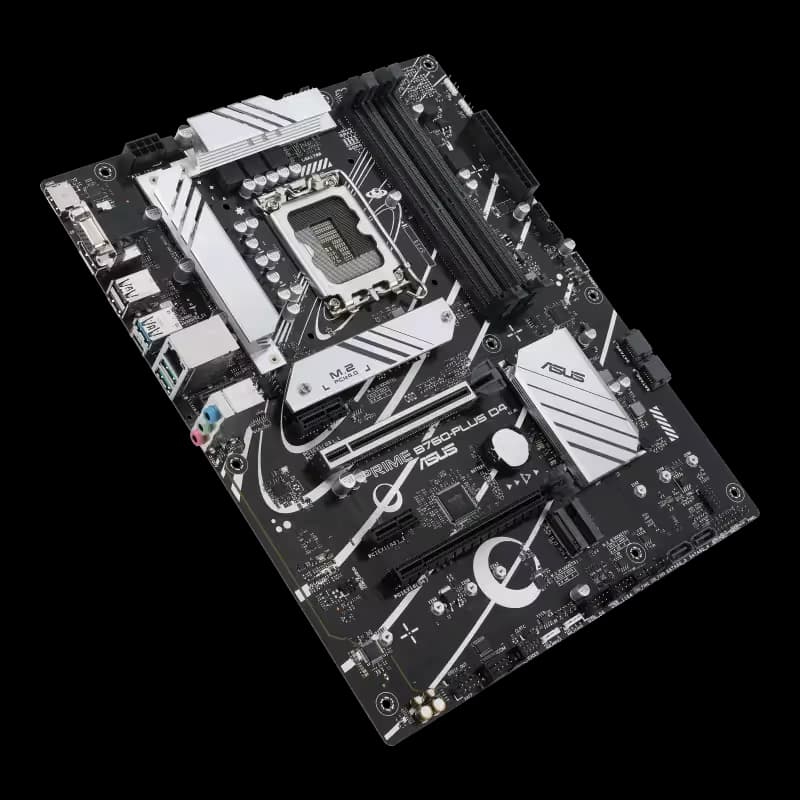

ASUS PRIME B760-PLUS D4-CSM

	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Unavailable	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	Unavailable	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

ASUS

Series

PRIME

Variant

B760-PLUS D4-CSM

Release Year

2023

Manufacturer Color

Black/Silver

UPC

None

EAN

None

Part Numbers

prime-b760-plus-d4-csm

BuildCores ID

t8wnh9ukk

General Specifications

Socket

LGA 1700

Form Factor

ATX

Chipset

Intel B760

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK GREY

Lighting

Unknown

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

Realtek 2.5Gb Ethernet 2.5 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

Unknown

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

See an issue?Report an issue on OpenDB

ASUS PRIME B760-PLUS D4-CSM
