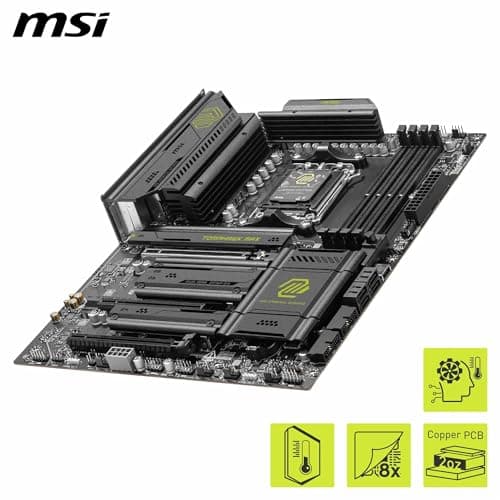

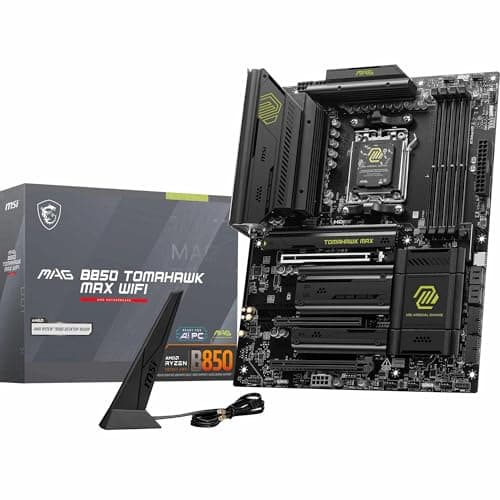

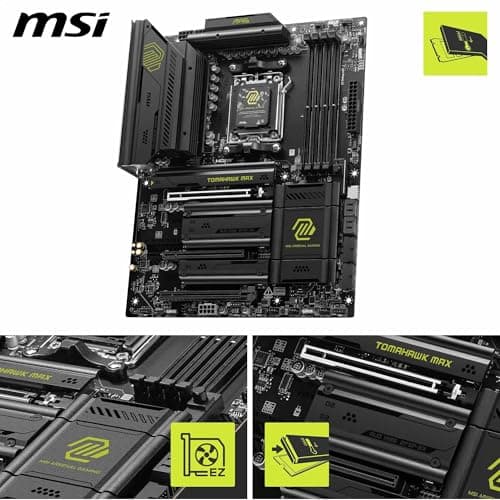

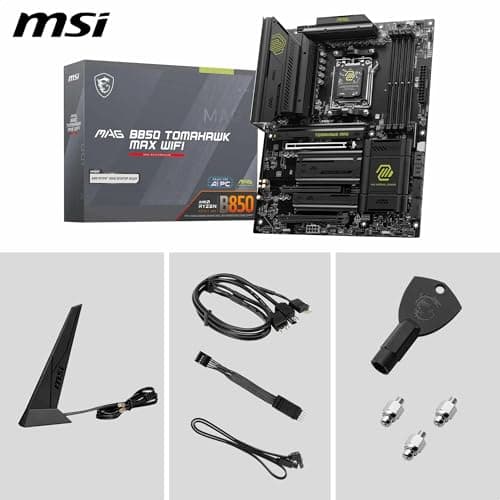

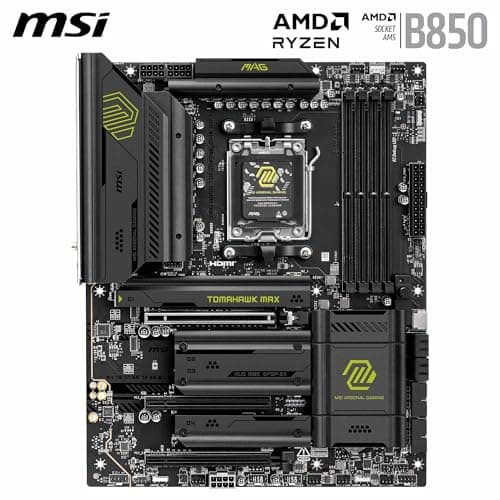

MSI B850 MAG TOMAHAWK MAX WIFI DDR5 ATX image

MSI B850 MAG TOMAHAWK MAX WIFI DDR5 ATX main image

Product Information

Manufacturer

MSI

Series

B850

Variant

MAG TOMAHAWK MAX WIFI

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142395356

EAN

0824142395356

Part Numbers

MAG B850 TOMAHAWK MAX WIFI B850TMAHAWKWIFIMAX 911-7E62-02S MAG B850 Tomahawk MAX WiFi

BuildCores ID

teqcl6hgw

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREEN

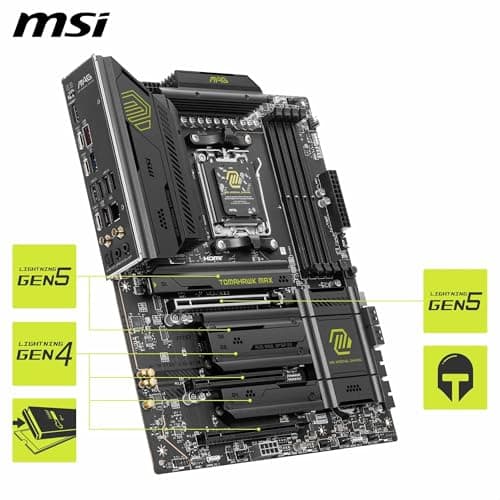

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 3.0 x1 1 x PCIe 4.0 x4

M.2 Slots

M 22110/2280 PCIe 5.0 x4 M 2280/2260 PCIe 5.0 x4 M 2280/2260 PCIe 4.0 x2 M 2280/2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126VB 5 Gb/s

WiFi

Wifi 7 Bluetooth® v5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 8-pin 4-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC4080 Codec

Audio Channels

7.1

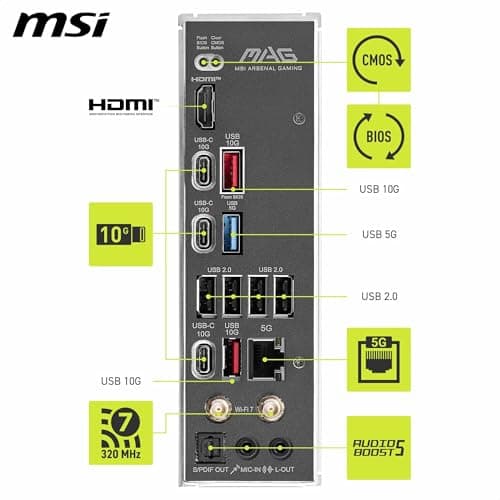

Back Panel Ports

1x Clear CMOS Button 1x Flash BIOS Button 1x HDMI™ port 3x USB 10Gbps Type-C ports 2x USB 10Gbps Type A port 1x USB 5Gbps Type A 4x USB 2.0 connectors 1x 5G LAN (RJ45) port 1x Optical S/PDIF Out connector 2x audio jacks
