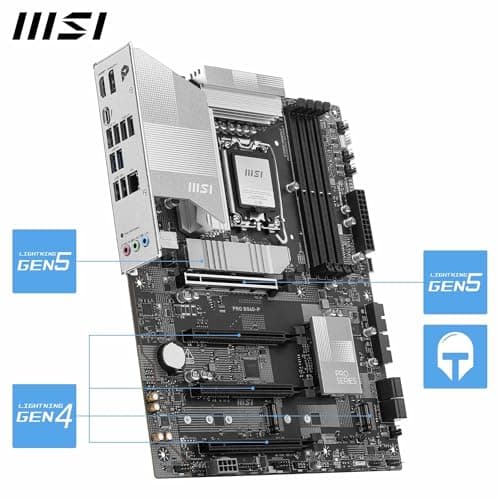

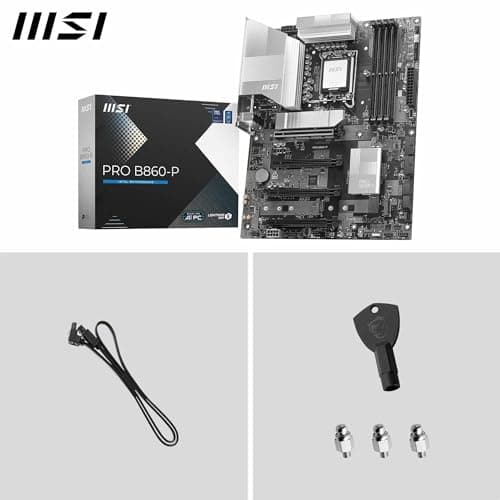

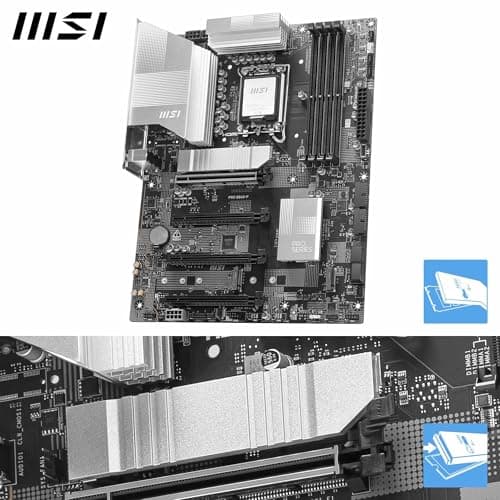

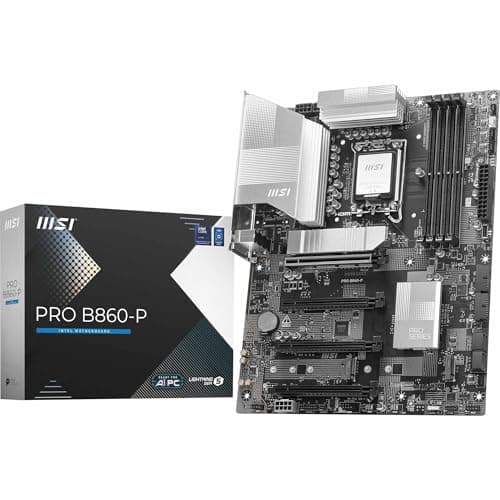

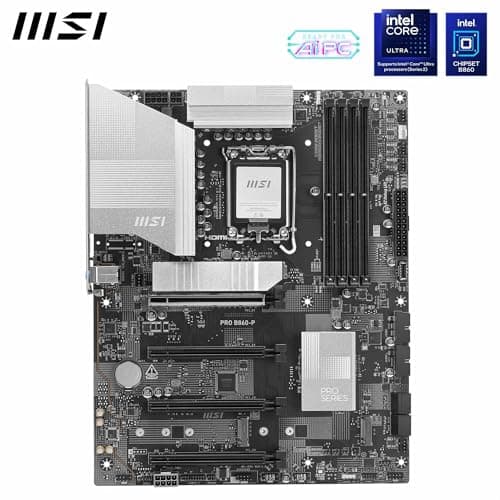

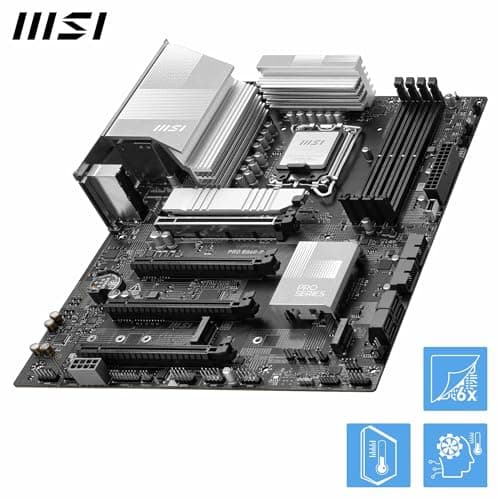

MSI B860 PRO B860-P WIFI LGA1851 DDR5 ATX image

MSI B860 PRO B860-P WIFI LGA1851 DDR5 ATX main image

Product Information

Manufacturer

MSI

Series

B860

Variant

P-WiFi

Release Year

2025

Manufacturer Color

Unknown

UPC

824142392959

EAN

0824142392959

Part Numbers

PRO B860-P WIFI 7E41-001R

BuildCores ID

tpy73godd

General Specifications

Socket

LGA 1851

Form Factor

ATX

Chipset

Intel B860

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x1 1 x PCIe 4.0 x4

M.2 Slots

M 2280/2260 PCIe 5.0 x4 M 2280/2260/2242 PCIe 4.0 x4 M 2280/2260 PCIe 4.0 x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8126 5 Gb/s

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

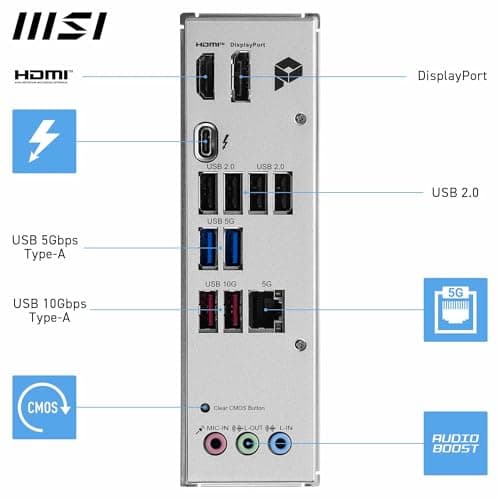

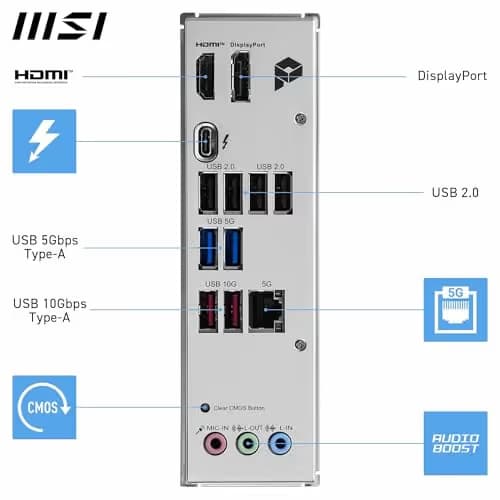

Back Panel Ports

1 x DisplayPort 1.4 1 x HDMI 2.1 port 1 x Thunderbolt 4 USB-C port (Supports DisplayPort) 2 x USB 10Gbps Type-A port 2 x USB 5Gbps Type-A ports 4 x USB 2.0 Type-A ports 1 x 5Gbps LAN (RJ45) port 3 x Audio jacks 1 x Clear CMOS Button
