ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard main image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard image
Product Information
Manufacturer
ASUS
Series
ROG Crosshair
Variant
VII Hero (Wi-Fi)
Release Year
2018
Manufacturer Color
Unknown
UPC
889349976289
EAN
0889349976289
Part Numbers
ROG Crosshair VII Hero (Wi-Fi) B07C5JKH91
BuildCores ID
ttcs9eqcb
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X470
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 3.0 x8 1 x PCIe 2.0 x4 2 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIE 3.0 x4 M 2242/2260/2280 PCIE 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel i211AT 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
8
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
ROG SupremeFX S1220
Audio Channels
7.1

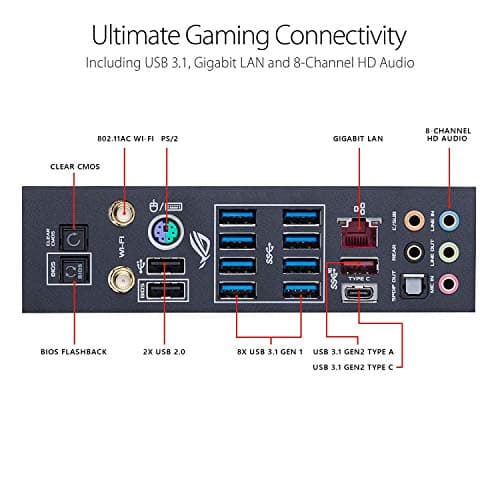

Back Panel Ports
1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth) 5 x Gold-plated audio jacks 8 x USB 3.1 Gen 1 (blue) 1 x USB 3.1 Gen 2 (red) Type-A 1 x USB 3.1 (black) USB Type-C
Motherboard

ASUS ROG Crosshair VII Hero (Wi-Fi) AMD Ryzen 2 AM4 DDR4 M.2 USB 3.1 Gen2 ATX X470 Motherboard

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

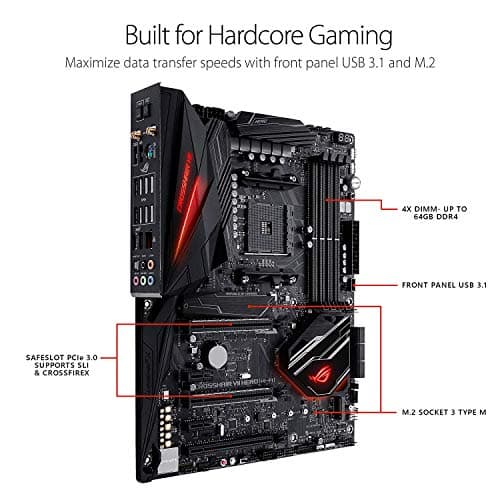

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, onboard 802.11ac Wi-Fi, front panel USB 3.1 Gen2 and gigabit LAN

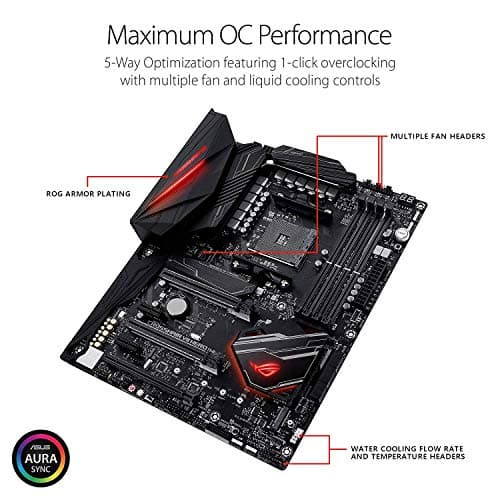

5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance with external clock generator.Form Factor ATX Form Factor(Inches) : 12 x 9.6

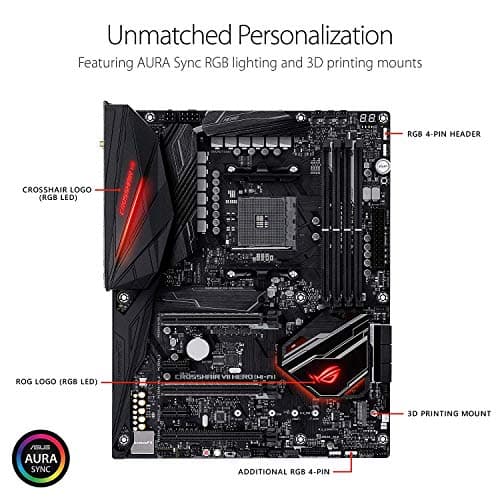

Aura Sync RGB lighting with two addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products. Operating System - Windows 10 64-bit.Windows 7 64-bit *7

Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality. Wireless Data Network : Wi-Fi 802.11 a/b/g/n/ac. Supports dual band frequency 2.4/5 GHz

Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors

Perfected cooling: dedicated water cooling zone, comprehensive fan controls, and M.2 heatsink

Additional Features

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, onboard 802.11ac Wi-Fi, front panel USB 3.1 Gen2 and gigabit LAN

5-Way Optimization featuring Auto-Tuning and FanXpert 4 provides automatic overclocking profiles for maximum OC performance with external clock generator.Form Factor ATX Form Factor(Inches) : 12 x 9.6

Aura Sync RGB lighting with two addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products. Operating System - Windows 10 64-bit.Windows 7 64-bit *7

Pre-mounted I/O shield ensures streamlined installation and represents ROG’s attention to detail and quality. Wireless Data Network : Wi-Fi 802.11 a/b/g/n/ac. Supports dual band frequency 2.4/5 GHz

Industry-leading 8-channel HD audio with the ROG exclusive SupremeFX S1220 driven by Japanese capacitors

Perfected cooling: dedicated water cooling zone, comprehensive fan controls, and M.2 heatsink

Product Information
Manufacturer
ASUS
Series
ROG Crosshair
Variant
VII Hero (Wi-Fi)
Release Year
2018
Manufacturer Color
Unknown
UPC
889349976289
EAN
0889349976289
Part Numbers
ROG Crosshair VII Hero (Wi-Fi) B07C5JKH91
BuildCores ID
ttcs9eqcb
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X470
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 3.0 x8 1 x PCIe 2.0 x4 2 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIE 3.0 x4 M 2242/2260/2280 PCIE 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel i211AT 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
8
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
ROG SupremeFX S1220
Audio Channels
7.1
Back Panel Ports
1 x PS/2 keyboard/mouse combo port(s) 1 x LAN (RJ45) port(s) 2 x USB 2.0 (one port can be switched to USB BIOS Flashback) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth) 5 x Gold-plated audio jacks 8 x USB 3.1 Gen 1 (blue) 1 x USB 3.1 Gen 2 (red) Type-A 1 x USB 3.1 (black) USB Type-C

Completed Builds
