General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD A520

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

BLACK

Lighting

None

PCIe Slots

1 x PCIe 3.0 x16 1 x PCIe 3.0 x1

M.2 Slots

M 2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

None

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

Unknown

USB 3.2 Gen 2x2

Unknown

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

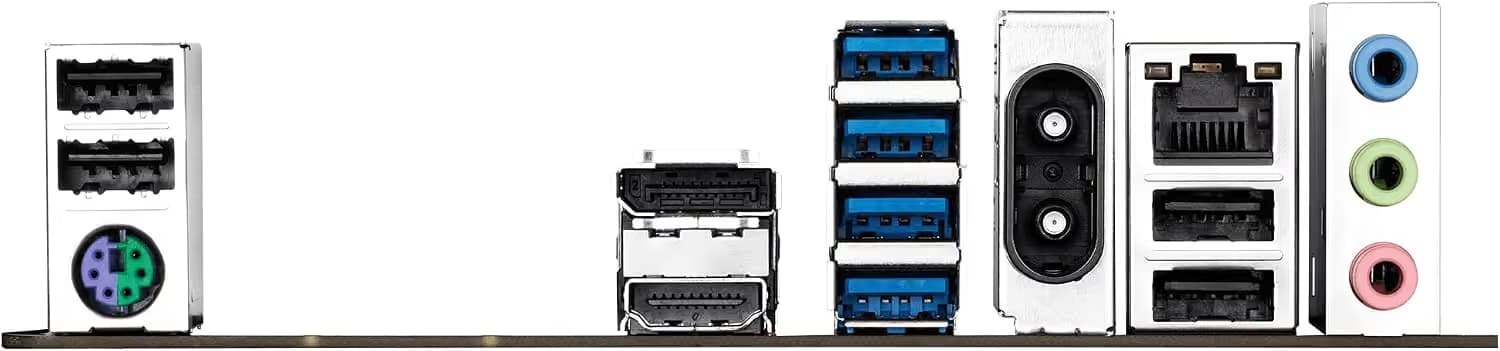

Back Panel Ports

1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (1T1R) 3 x audio jacks

Product Information

Manufacturer

Gigabyte

Series

Unknown

Variant

Unknown

Release Year

2023

Manufacturer Color

Black

UPC

None

EAN

None

Part Numbers

None

BuildCores ID

u58gfi0ta

See an issue?Report an issue on OpenDB

Motherboard

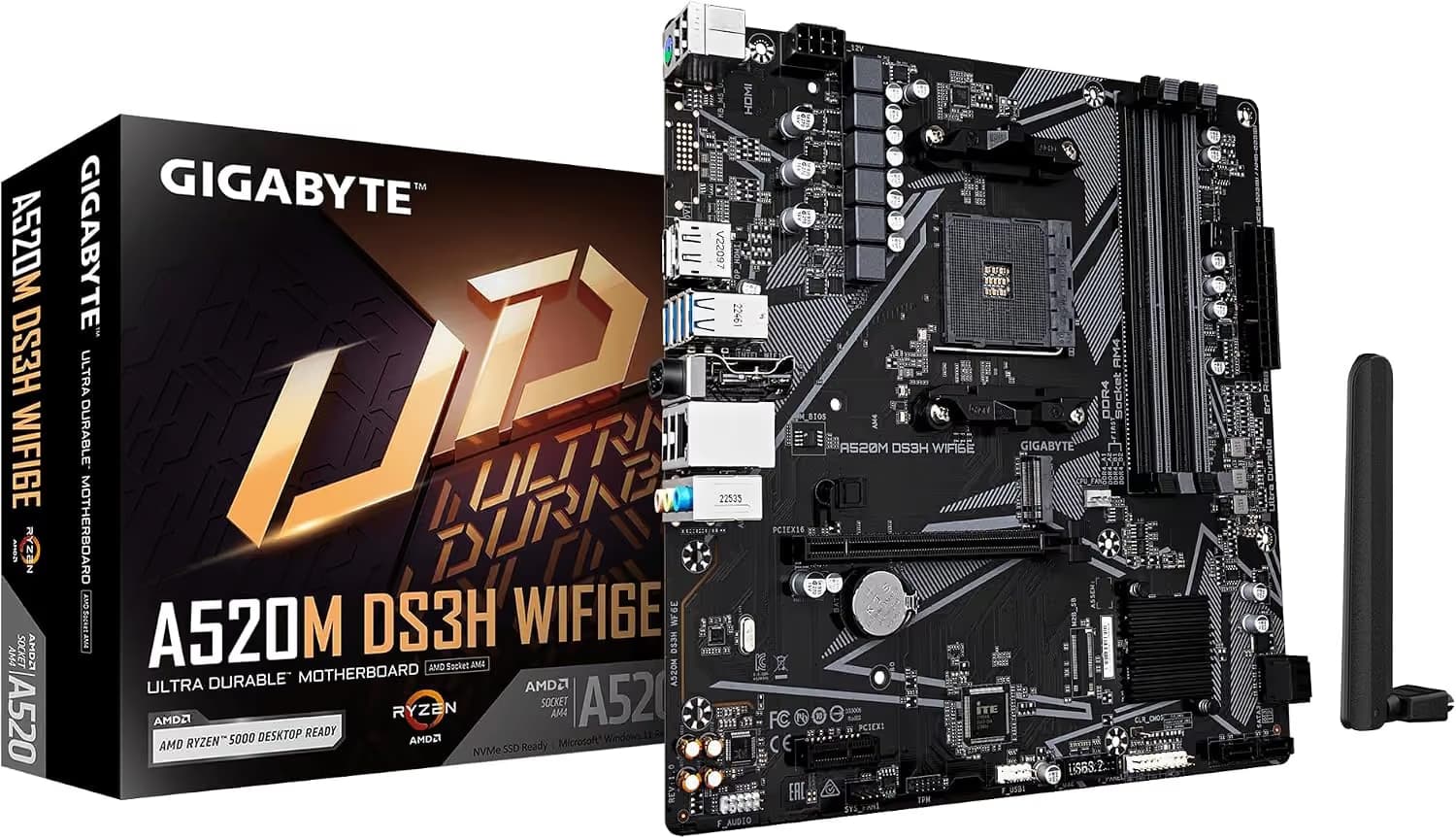

Gigabyte A520M DS3H WIFI6E
