Product Information
Manufacturer
ASUS
Series
Expedition
Variant
B650EM-V7 PLUS-CSM
Release Year
2026
Manufacturer Color
Red/Black
UPC
None
EAN
None
Part Numbers
ex-b650em-v7-plus-csm
BuildCores ID
um5nzm9c5
General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD B650E
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
2
Colors
BLACK
GREY
RED
Lighting
Unknown
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x4
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5Gb Ethernet 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

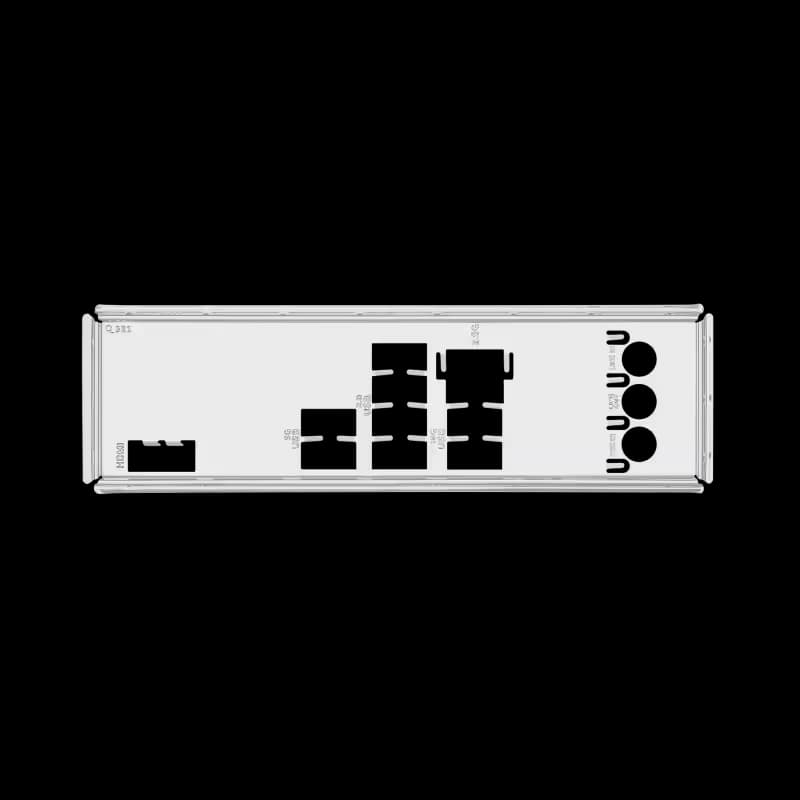

Back Panel Ports
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Motherboard

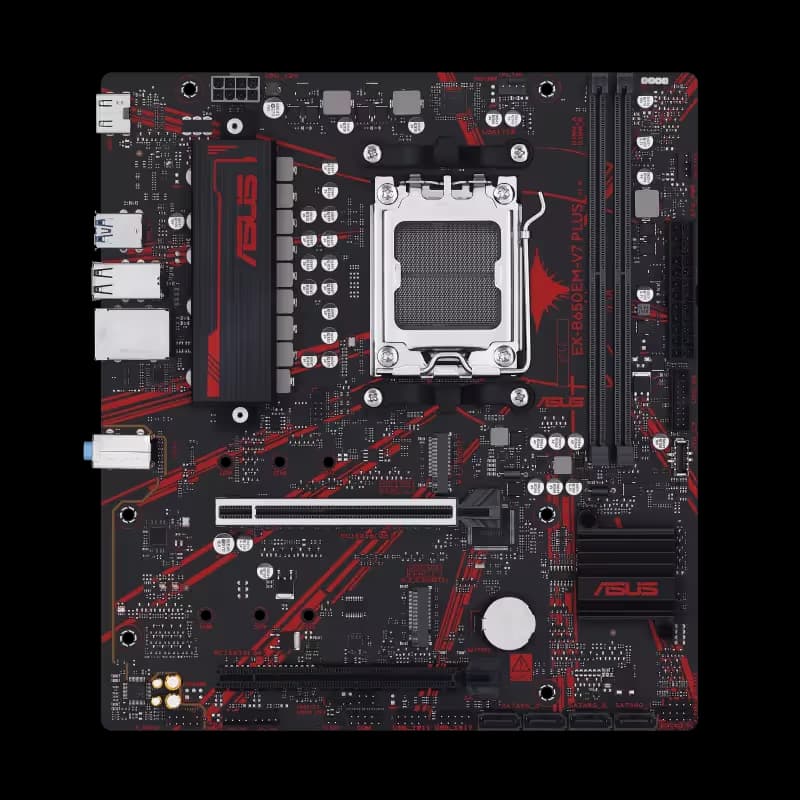

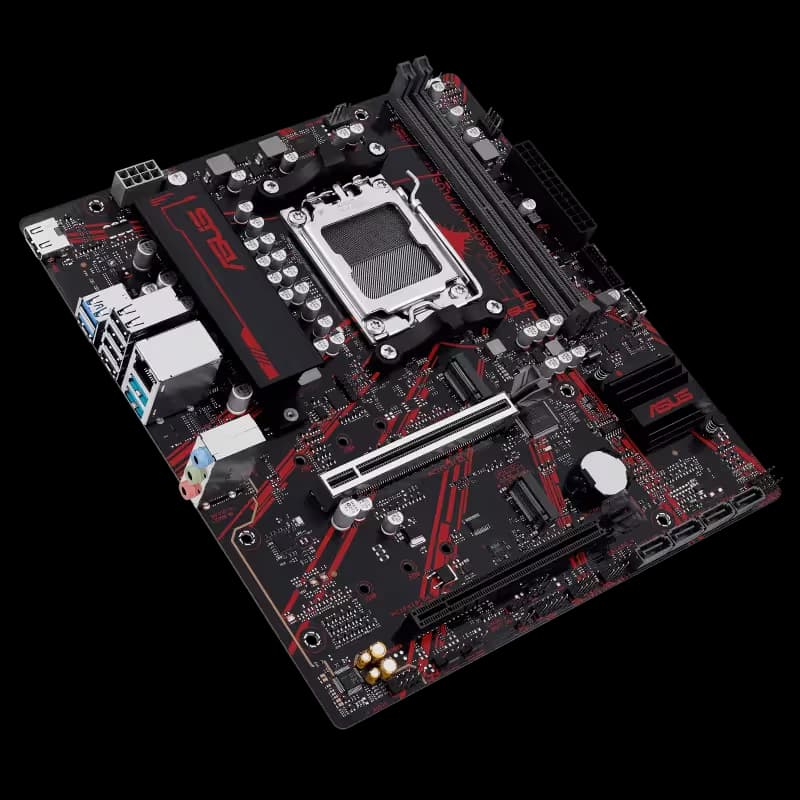

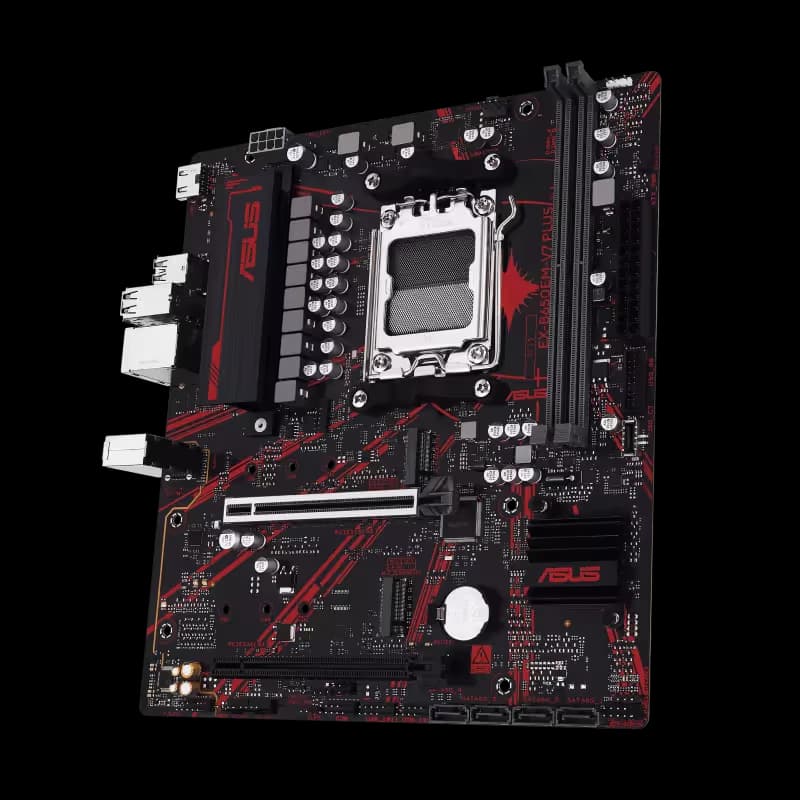

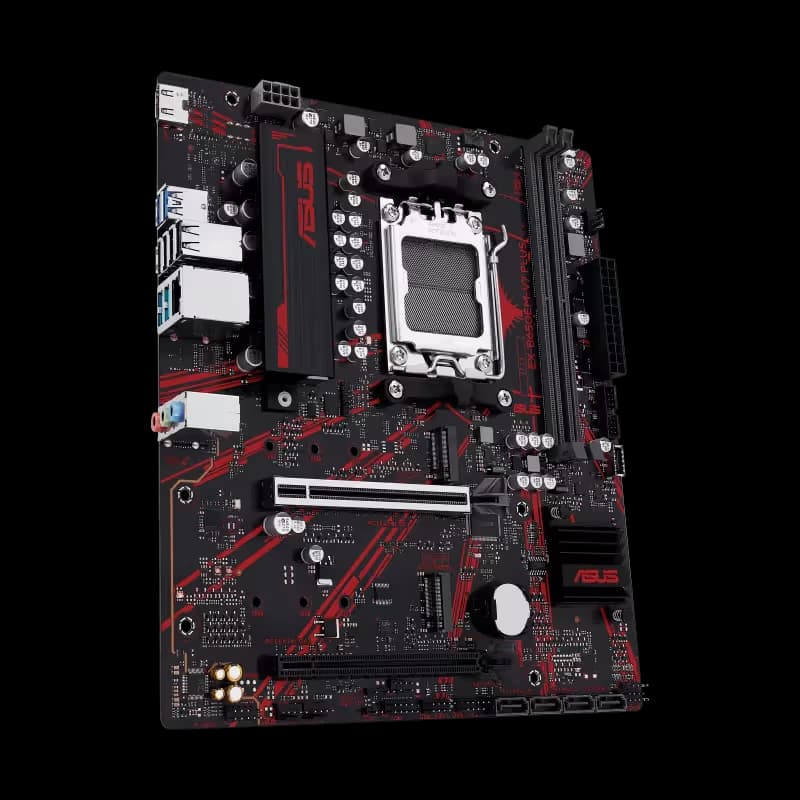

ASUS EX-B650EM-V7 PLUS-CSM
