Gigabyte H610I DDR4 Motherboard main image

Product Information

Manufacturer

Gigabyte

Series

H610I DDR4

Release Year

2022

Manufacturer Color

Unknown

UPC

889523031490

EAN

4719331834562

Part Numbers

H610I DDR4

BuildCores ID

umlwzdime

General Specifications

Socket

LGA 1700

Form Factor

Mini-ITX

Chipset

Intel H610

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 4.0 x16

M.2 Slots

M 2280 PCIe 3.0 x4/x2

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel GbE LAN Chip 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Channels

7.1

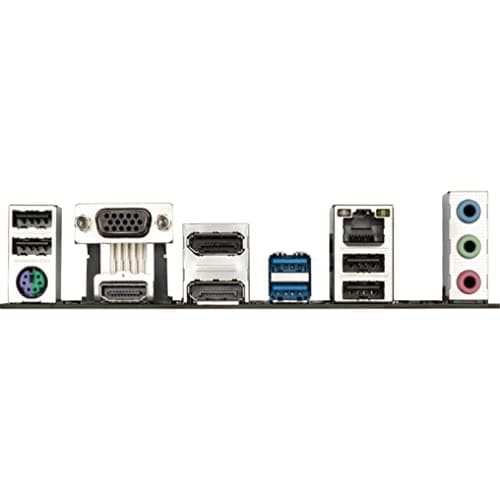

Back Panel Ports

1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x D-Sub port 2 x DisplayPorts 1 x HDMI 2.0 port 1 x RJ-45 port 3 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte H610I DDR4 Motherboard

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors

• DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

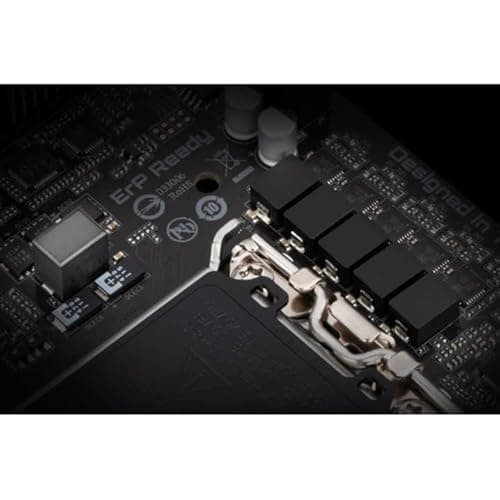

• Commanding Power Design: 4+1+1 Hybrid Digital VRM Design

• Connectivity: PCIe 4.0, Single NVMe PCIe 3.0 x4 M.2, USB 3.2 Gen1

• Fast Networking: Intel GbE LAN Chip

• Dynamic Audio: High Quality Audio Capacitors and Audio Noise Guard

Additional Features

• Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors

• DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• Commanding Power Design: 4+1+1 Hybrid Digital VRM Design

• Connectivity: PCIe 4.0, Single NVMe PCIe 3.0 x4 M.2, USB 3.2 Gen1

• Fast Networking: Intel GbE LAN Chip

• Dynamic Audio: High Quality Audio Capacitors and Audio Noise Guard
