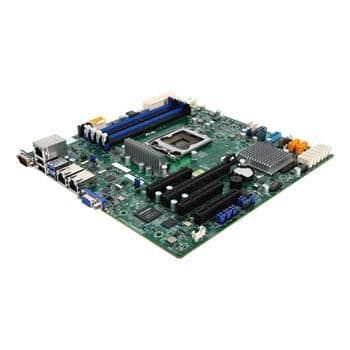

Supermicro Intel C236 X11SSM-F LGA1151 DDR4 Micro ATX image
Supermicro Intel C236 X11SSM-F LGA1151 DDR4 Micro ATX main image
Supermicro Intel C236 X11SSM-F LGA1151 DDR4 Micro ATX image
Product Information
Manufacturer
Supermicro
Series
Intel
Variant
Unknown
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
MBD-X11SSM-F
BuildCores ID
vc775rlc7
General Specifications
Socket
LGA 1151
Form Factor
Micro ATX
Chipset
Intel C236
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK GREEN
PCIe Slots
1 x PCIe 4.0 x16 3 x PCIe 4.0 x8
M.2 Slots
None
SATA 6Gb/s
8
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Unknown 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
2 x 1 Gb/s
See an issue?Report an issue on OpenDB
