Product Information
Manufacturer
ASUS
Series
TUF GAMING
Variant
B650-PLUS
Release Year
2022
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
tuf-gaming-b650-plus
BuildCores ID
vgy7exdu1
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD B650
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
GREY
ORANGE
Lighting
Unknown
PCIe Slots
1 x PCIe 4.0 x16
1 x PCIe 4.0 x4
2 x PCIe 4.0 x2
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2242/2260/2280/22110 PCIe 4.0 x4
M 2242/2260/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 2.5Gb Ethernet 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
1
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

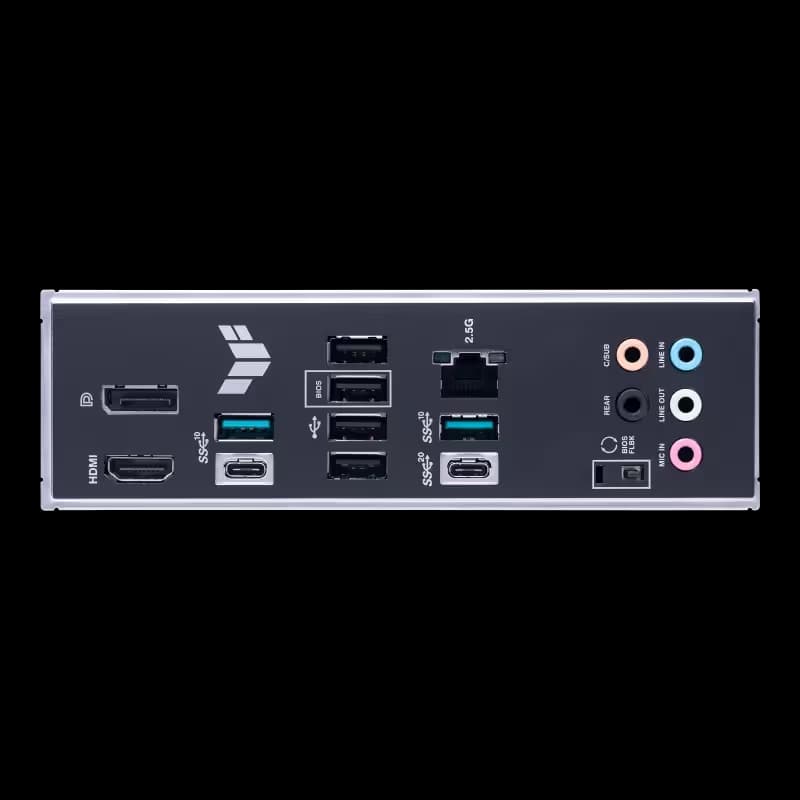

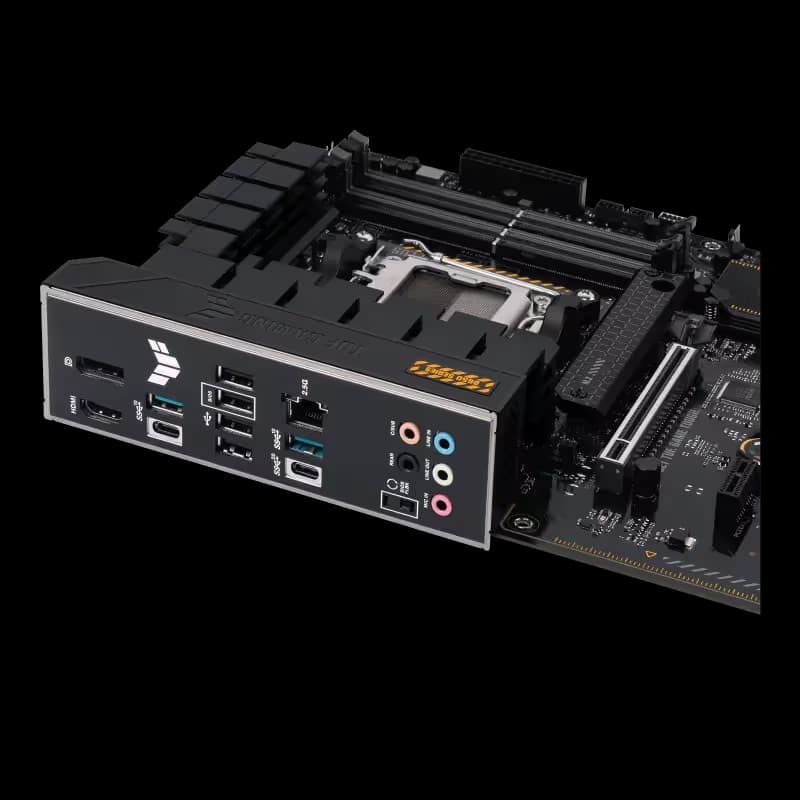

Back Panel Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
