Product Information
Manufacturer
ASUS
Series
ROG Strix
Variant
X470-F Gaming
Release Year
2018
Manufacturer Color
Unknown
UPC
889349939789
EAN
0889349939789
Part Numbers
ROG Strix X470-F Gaming
BuildCores ID
vj95z8e63
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X470
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 2.0 x4 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 SATA & PCIE 3.0 x 4 M 2242/2260/2280/22110 SATA & PCIE 3.0 x 2
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel® I211-AT 1 Gb/s
WiFi
Unknown
USB 2.0
4
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220A
Audio Channels
7.1
Back Panel Ports

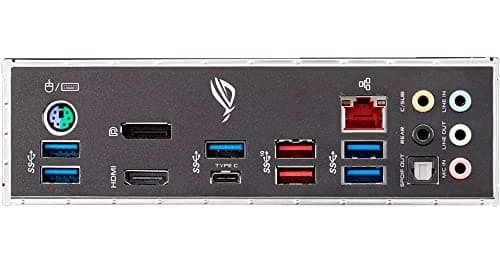

1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s) 2 x USB 3.1 Gen 2 (red)Type-A Anti-surge LAN (RJ45) port
Motherboard

ROG STRIX X470-F GAMING

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, front panel USB 3.1 Gen2 and Gigabit LAN

5 Way Optimization with Auto Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting, 2 RGB headers and one addressable RGB header

Pre mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality. ROG RAMCache II. 256 Megabytes Flash ROM. Operating System Windows 10 64 bit

Industry leading 8 channel HD audio driven by Japanese capacitors features an onboard LED illuminated design

Gamer’s Guardian: Pre-Mounted I/O Shield, ASUS SafeSlot and premium components for maximum endurance.

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.

Additional Features

Powered by AMD Ryzen 2 AM4 and 7th generation Athlon processors to maximize connectivity and speed with dual NVMe M.2, front panel USB 3.1 Gen2 and Gigabit LAN

5 Way Optimization with Auto Tuning and Fan Xpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

Unmatched personalization with ASUS exclusive Aura Sync RGB lighting, 2 RGB headers and one addressable RGB header

Pre mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality. ROG RAMCache II. 256 Megabytes Flash ROM. Operating System Windows 10 64 bit

Industry leading 8 channel HD audio driven by Japanese capacitors features an onboard LED illuminated design

Gamer’s Guardian: Pre-Mounted I/O Shield, ASUS SafeSlot and premium components for maximum endurance.

Gaming audio: SupremeFX S1220A teams with Sonic Studio III to create an aural landscape that draws you deeper into the action.

Product Information
Manufacturer
ASUS
Series
ROG Strix
Variant
X470-F Gaming
Release Year
2018
Manufacturer Color
Unknown
UPC
889349939789
EAN
0889349939789
Part Numbers
ROG Strix X470-F Gaming
BuildCores ID
vj95z8e63
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD X470
Max Memory
64 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
2 x PCIe 3.0 x16 1 x PCIe 2.0 x4 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 SATA & PCIE 3.0 x 4 M 2242/2260/2280/22110 SATA & PCIE 3.0 x 2
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel® I211-AT 1 Gb/s
WiFi
Unknown
USB 2.0
4
USB 3.2 Gen 1
2
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
SupremeFX S1220A
Audio Channels
7.1
Back Panel Ports
1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s) 2 x USB 3.1 Gen 2 (red)Type-A Anti-surge LAN (RJ45) port
