General Specifications
Socket
LGA 1700
Form Factor
ATX
Chipset
Intel Z690
Max Memory
192 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 3.0 x4
4 x PCIe 3.0 x1
M.2 Slots
M 2260/2280/22110 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
M 2260/2280 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Intel Wireless-AC 9560 (802.11ac) + Bluetooth 5.1
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
2
RGB 12V Headers
2
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
2
COM Port Headers
1
Main Power
24-pin
CPU Power
8-pin
4-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors
1 x DisplayPort
1 x HDMI port
1 x USB Type-C port
with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Product Information
Manufacturer
Gigabyte
Series
Ultra Durable
Variant
Z690 AC
Release Year
2021
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
Z690 UD AC
BuildCores ID
wj1ghsowx
Motherboard

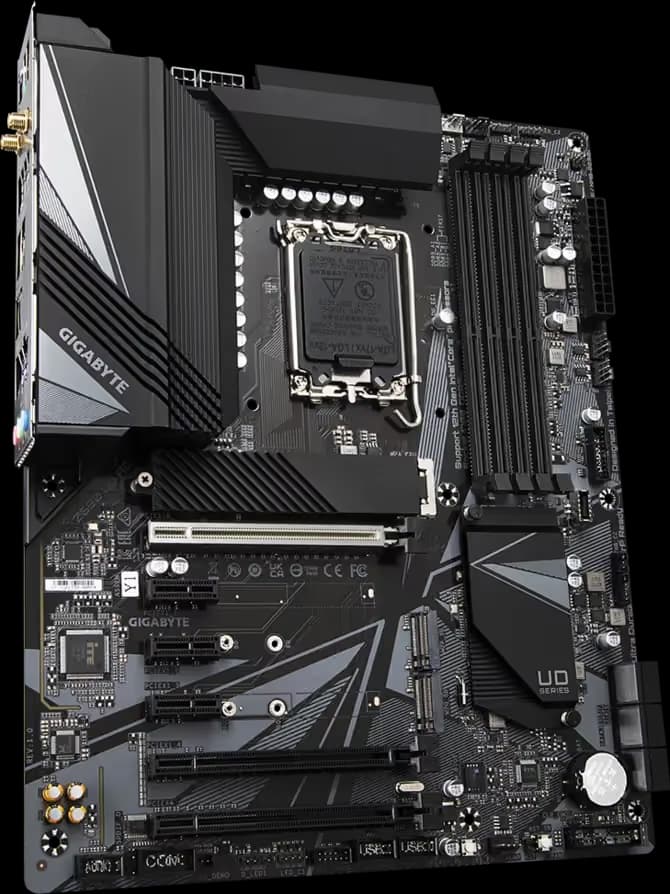

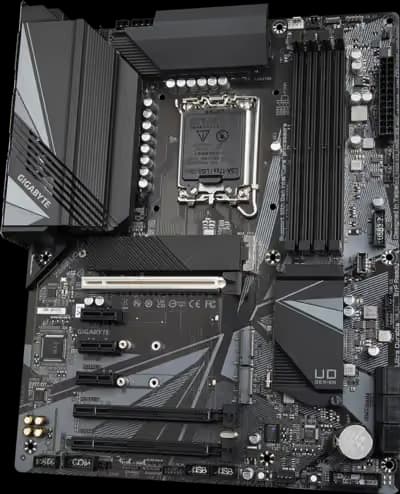

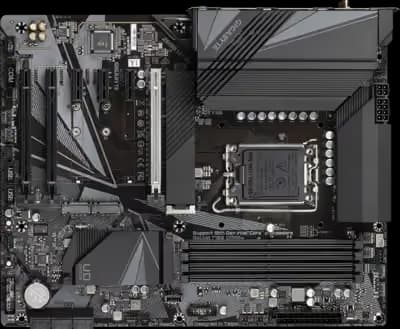

Gigabyte Z690 UD AC LGA1700 DDR5 ATX
SocketLGA 1700
Form FactorATX
ChipsetIntel Z690
