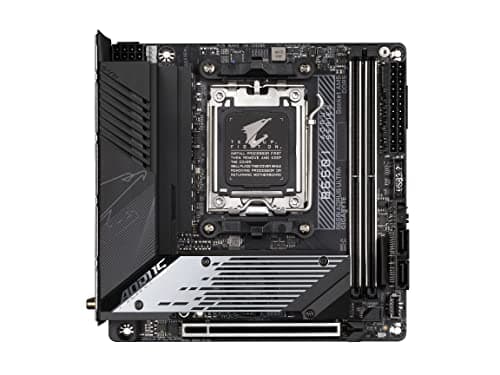

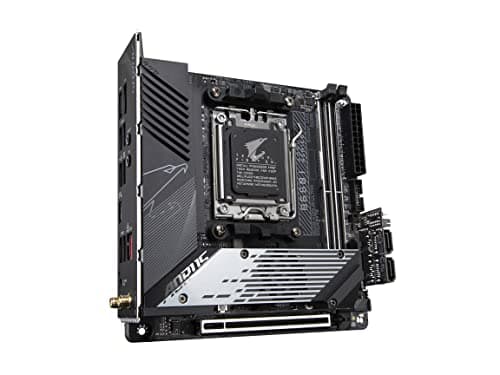

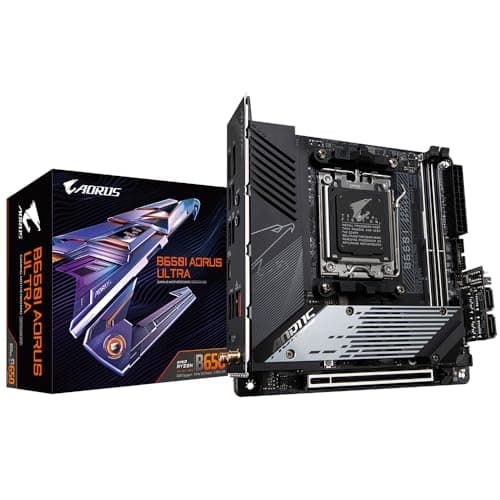

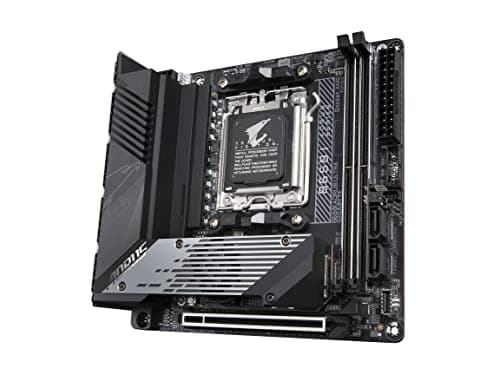

Gigabyte B650I AORUS ULTRA 1.0 DDR5 Mini ITX image

Gigabyte B650I AORUS ULTRA 1.0 DDR5 Mini ITX main image

Product Information

Manufacturer

Gigabyte

Series

B650I

Variant

AORUS ULTRA 1.0

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523034392

EAN

4719331850425

Part Numbers

B650I AORUS ULTRA MBG-B650IAORUSULTRA

BuildCores ID

wjwyz1vy1

General Specifications

Socket

AM5

Form Factor

Mini-ITX

Chipset

AMD B650

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16

M.2 Slots

M 2280 PCIe 5.0 x4 M 2260/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

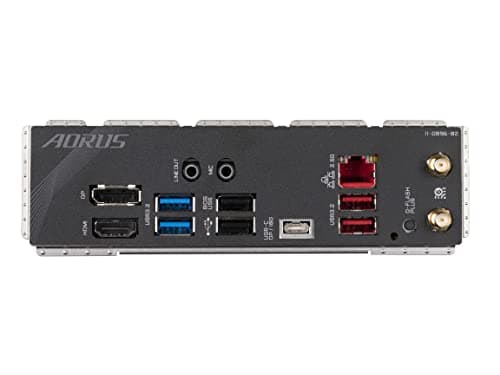

Back Panel Ports

1 x DisplayPort 1 x HDMI port 1 x USB Type-C port (DisplayPort) with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port (Intel 2.5GbE LAN) 2 x SMA antenna connectors (2T2R) 1 x Q-Flash Plus button 2 x audio jacks

See an issue?Report an issue on OpenDB

Motherboard

Gigabyte B650I AORUS ULTRA 1.0 DDR5 Mini ITX

Name: Gigabyte B650I AORUS ULTRA 1.0 DDR5 Mini ITX
Brand: Gigabyte
SKU: wjwyz1vy1

Best Price

$179.99

via

	FREE s/h	$179.99
Loading... Loading
	FREE s/h	$179.99
Loading... Loading
	FREE s/h	$179.99
Loading... Loading
	FREE s/h	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$179.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$179.99 via Newegg Loading... Loading
	FREE s/h	—	Out of stock	$179.99 via B&H Photo Loading... Loading
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$179.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$179.99 via Newegg Loading... Loading
	FREE s/h	—	Out of stock	$179.99 via B&H Photo Loading... Loading
	FREE s/h	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Product Information

Manufacturer

Gigabyte

Series

B650I

Variant

AORUS ULTRA 1.0

Release Year

Unknown

Manufacturer Color

Unknown

UPC

889523034392

EAN

4719331850425

Part Numbers

B650I AORUS ULTRA MBG-B650IAORUSULTRA

BuildCores ID

wjwyz1vy1

General Specifications

Socket

AM5

Form Factor

Mini-ITX

Chipset

AMD B650

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16

M.2 Slots

M 2280 PCIe 5.0 x4 M 2260/2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek ALC4080

Audio Channels

7.1

Back Panel Ports

See an issue?Report an issue on OpenDB

Gigabyte B650I AORUS ULTRA 1.0 DDR5 Mini ITX

Completed Builds
